Nokia NSW-5 Series - Flash Loading Adapter FLA-7

NSW-5
Service Tools
PAMS Technical Documentation
Page 10
Issue 1 10/2000
 Nokia Mobile Phones Ltd.
Flash Loading Adapter FLA–7
NOTE: If you already have FLA–5, FLA–7 is not needed. The Flash Load-
ing Adapter FLA–7 is used with the Service Battery BBD–3 or BTD–3
and Service Cable SCH–5A.
Power is supplied to FLA–7 from the ACL-3 Charger. Power for the FPS-4
can be connected via the FLA-7 by power cable SCF-7. The adapter is
connected to the Flash Prommer FPS–4S by the cable AXS–5 and to the
security box TDF-4 by the XCM-1 cable.
Sales package code
Flash Loading Adapter FLA–7: 0080326

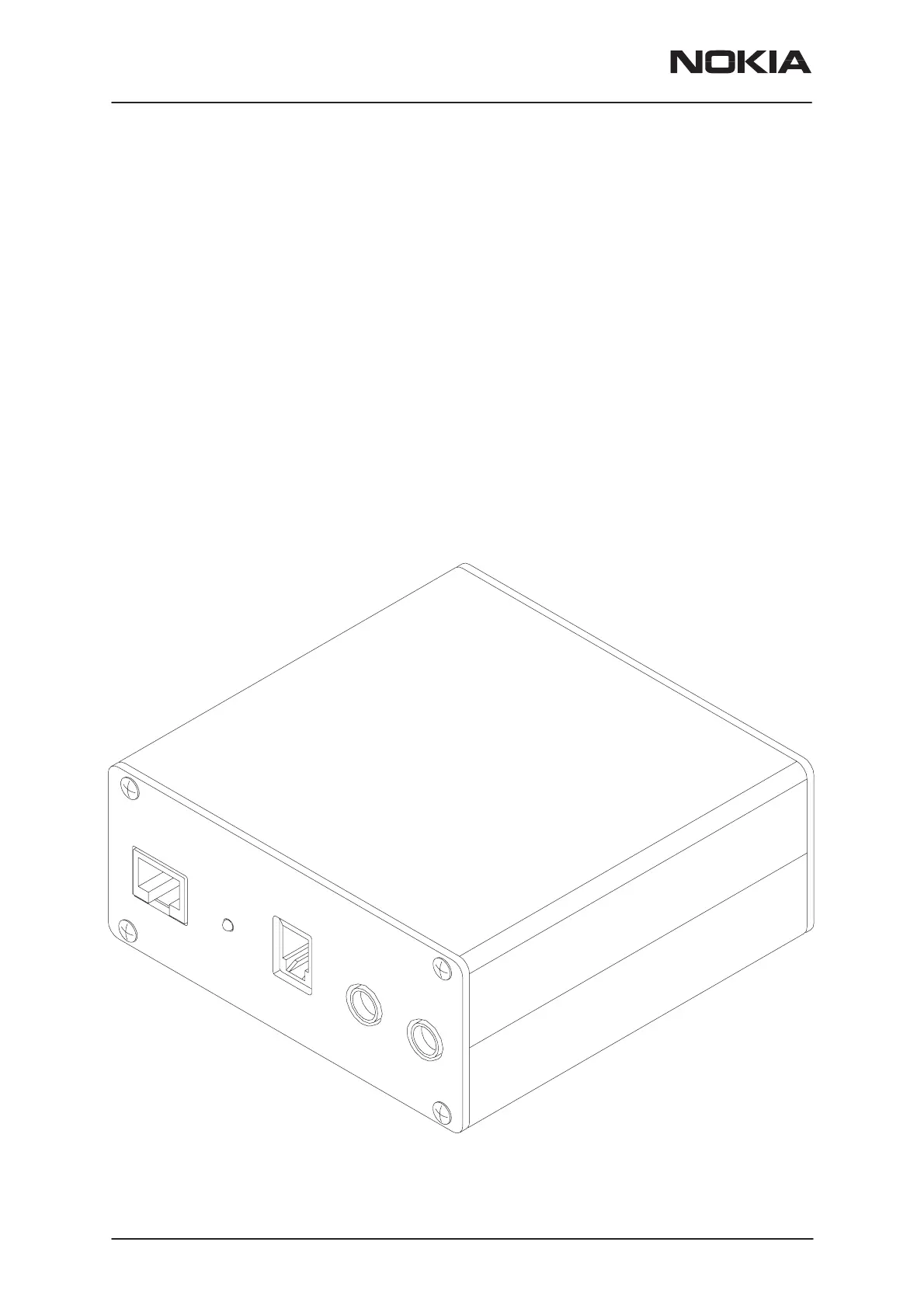

View of FLA–7
