NSW-5
Disassembly and Troubleshooting Instructions
PAMS Technical Documentation
Page 15
Issue 1 10/00
Nokia Mobile Phones Ltd.

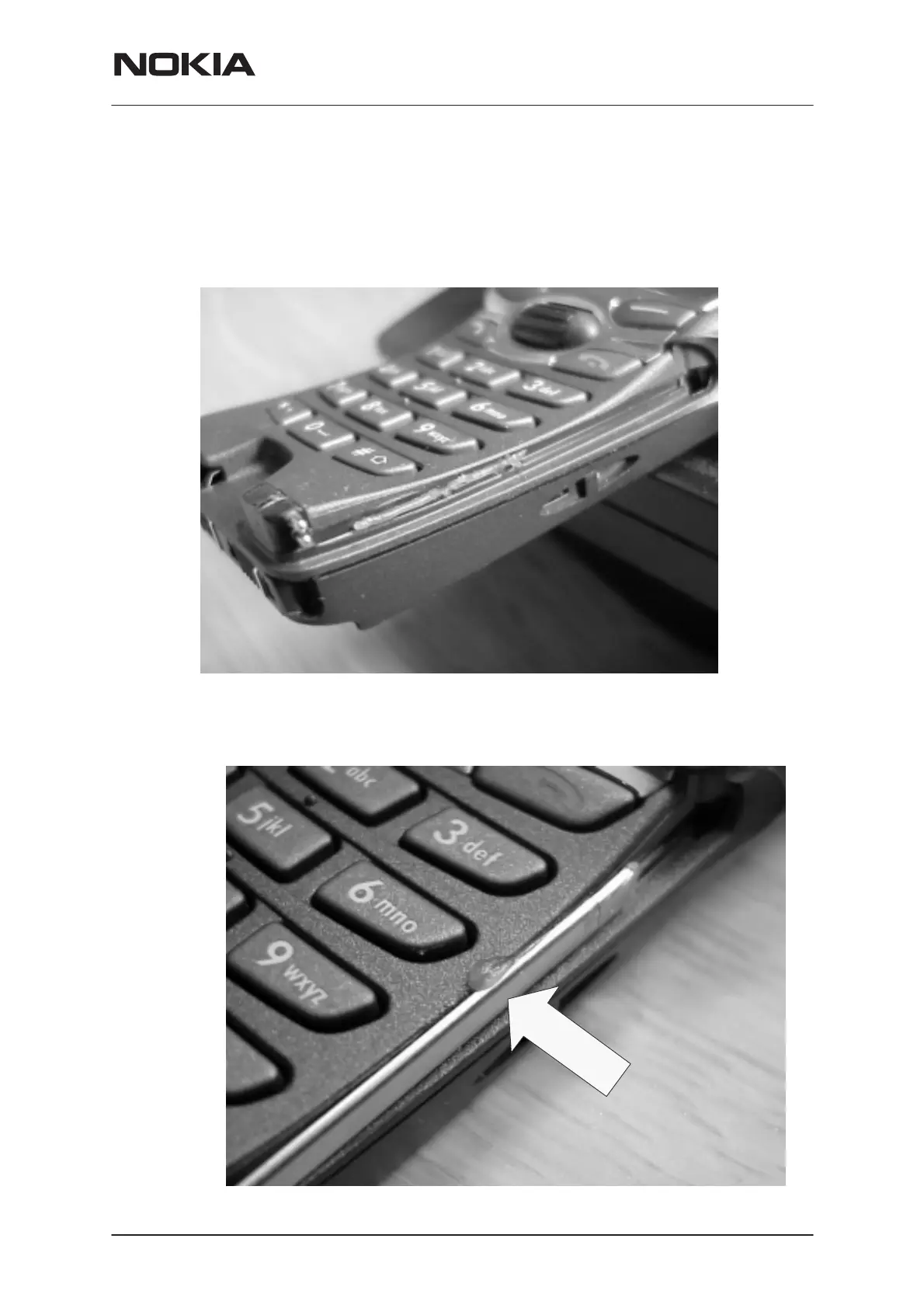

The lubricant is applied in one movement, leaving a strip of grease in
approx. a diameter of 1mm and in a length of 25 mm. There must be a 5
mm clearance towards microphone connector. A similar amount in size
and position is applied in the opposite track.
Be sure that the grease does not spill over the plunger.
