13

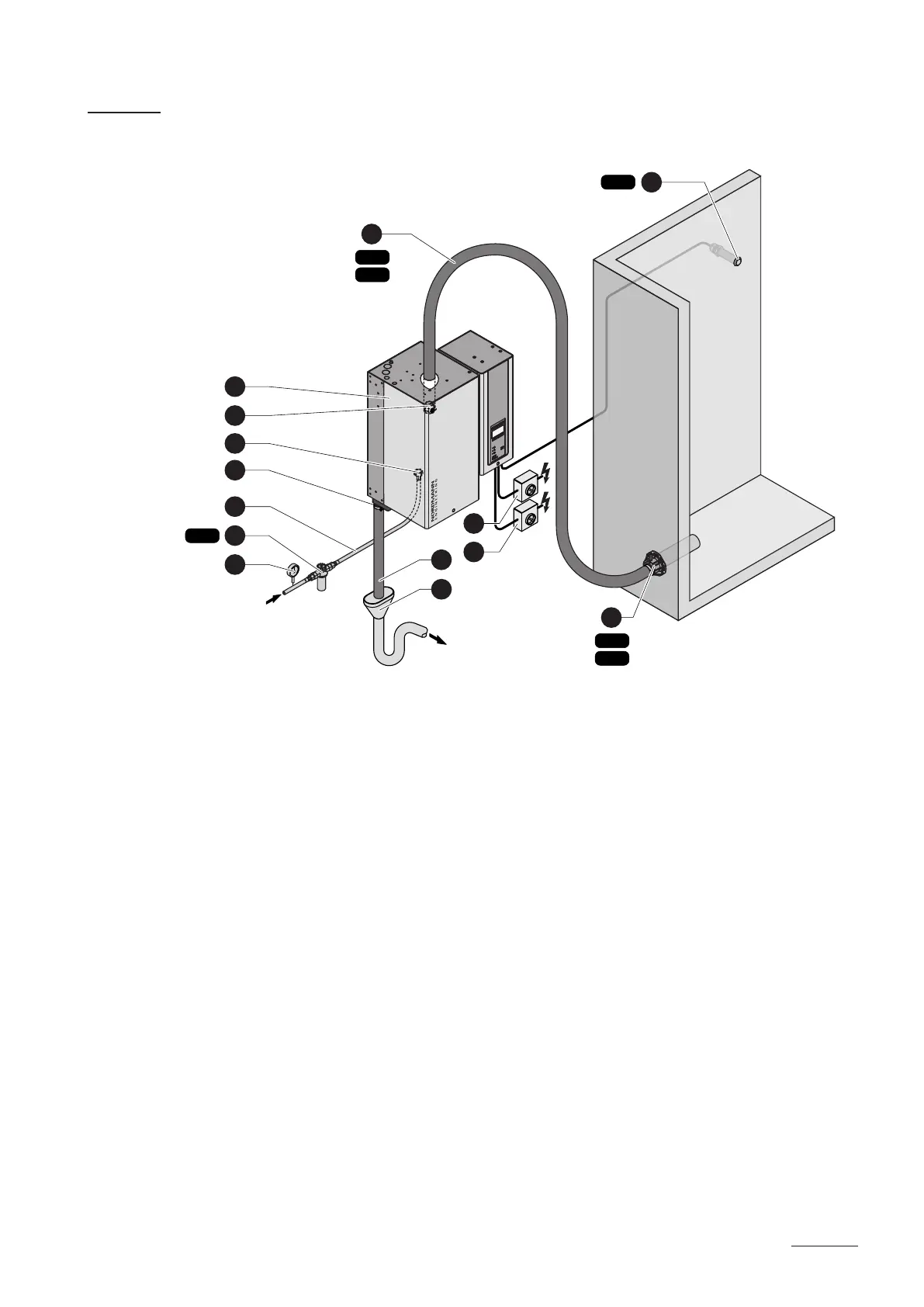

3.5 Humidicationsystemoverview
1 Steam generator
2 Steam connector
3 Water drain connector
4 Water supply connector
5 Water connection hose G 3/4"- G 3/8"
(included in the delivery)
6 Filter valve (accessory “Z261”)
7 Manometer (installation recommended)
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Service switch heating voltage supply (building side)
11 Service switch control voltage supply (building side)
12 Steam hose (accessory “DS22”/“DS35”)
13 Steam distributor (accessory “W..”/“DDS...”/“DDL...”)
14 Temperature sensor (accessory “KTY”) or humidity sen-
sor (caldarium operation)
125...1250 µS/cm
1...10 bar
1...40 °C
ONOFF
ONOFF
10
11
1
2
3
4
5
6
7
Z261
8
9
12
DS22
DS35
W22
W35
13
14
KTY
