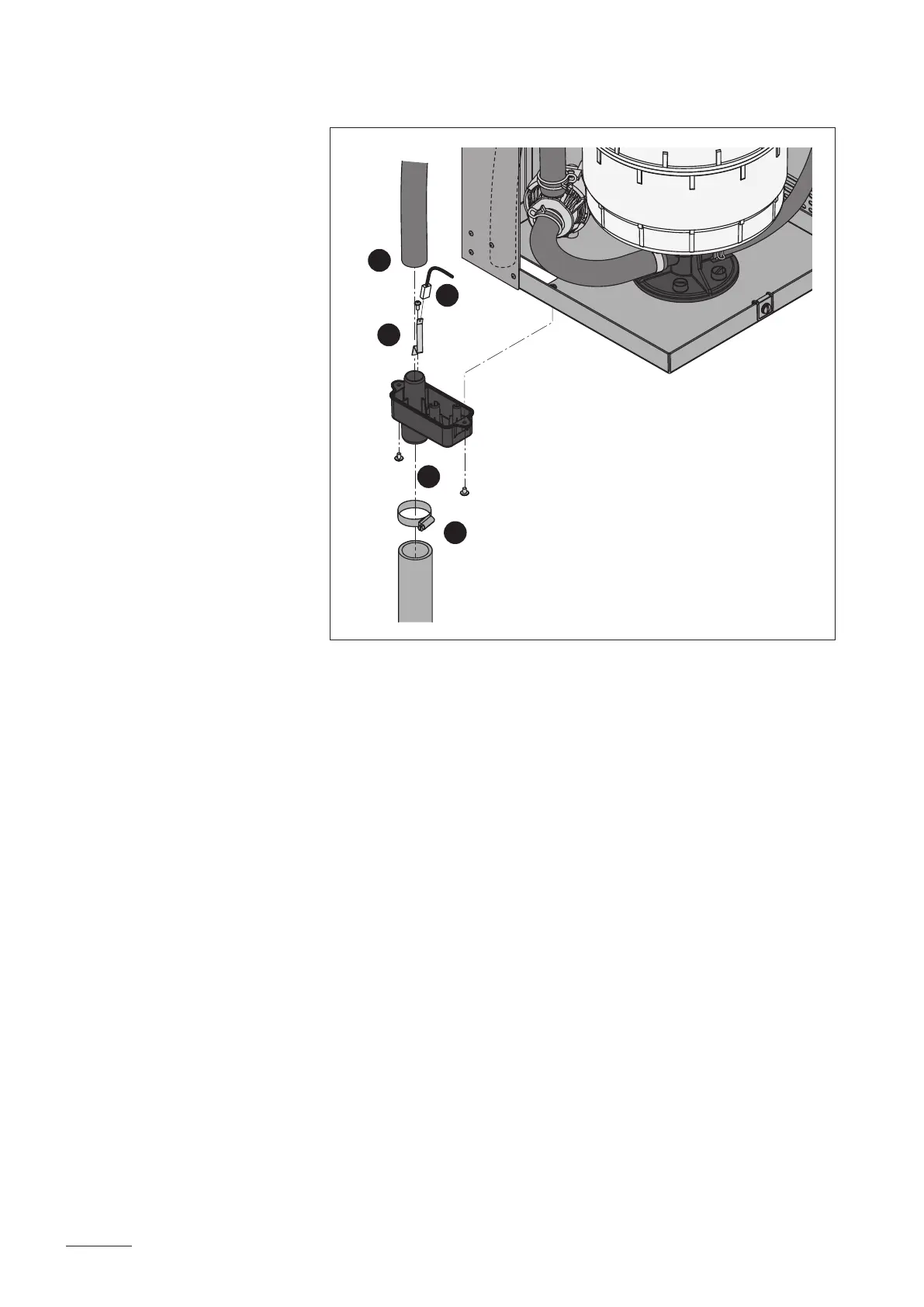

6.3.2 Removal and installation of the drain cup
1. Remove overow hose from the connector on the water cup.
2. Remove grounding cable from the grounding lance.
3. Release the hose clamp, then remove water drain hose from the con-
nector on the water cup.
4. Undo the two screws xing the drain cup to the unit using a screwdriver,
then remove the drain cup downwards.
5. Undo the screw, then remove grounding lance.
Installation of the drain cup follows the reverse sequence.
Important: reattach grounding cable to grounding lance.
1
2
5
4
3
