Nordmann Engineering AT4 D - Remote Terminal Operation; Remote Terminal Menu Overview; Remote Terminal Display Levels; Steam Generator Interface Details

50
Info
Main Menu
ErrorHistory:Set
HistoryReset:Set
Baudrate :9600
Language :English
Contrast :50
Esc Set
•••
Menu Local
AT4D Terminal
Remote Units:8
Software :1.00LA00
Main Menu
Operat.Mode :Manual
Duration :45min
Fragrance :Set
Setpoint :48°C
Light-2 :O
Esc Set
Menu Light Start 1
AT4D 65kg/h 400V3
Steam Bath :Standby
Temperature :34°C
Setpoint :48°C
2011-08-31 12:00:00
Menu Light Start 2
AT4D 65kg/h 400V3
Steam Bath :Standby
Temperature :34°C
Setpoint :48°C
2011-08-31 12:00:00
Menu Light Start 8
AT4D 65kg/h 400V3
Steam Bath :Standby
Temperature :34°C
Setpoint :48°C
2011-08-31 12:00:00
5.6 Working with the remote terminal
5.6.1 Menu overview remote terminal
Steam generator 2 to max. 8

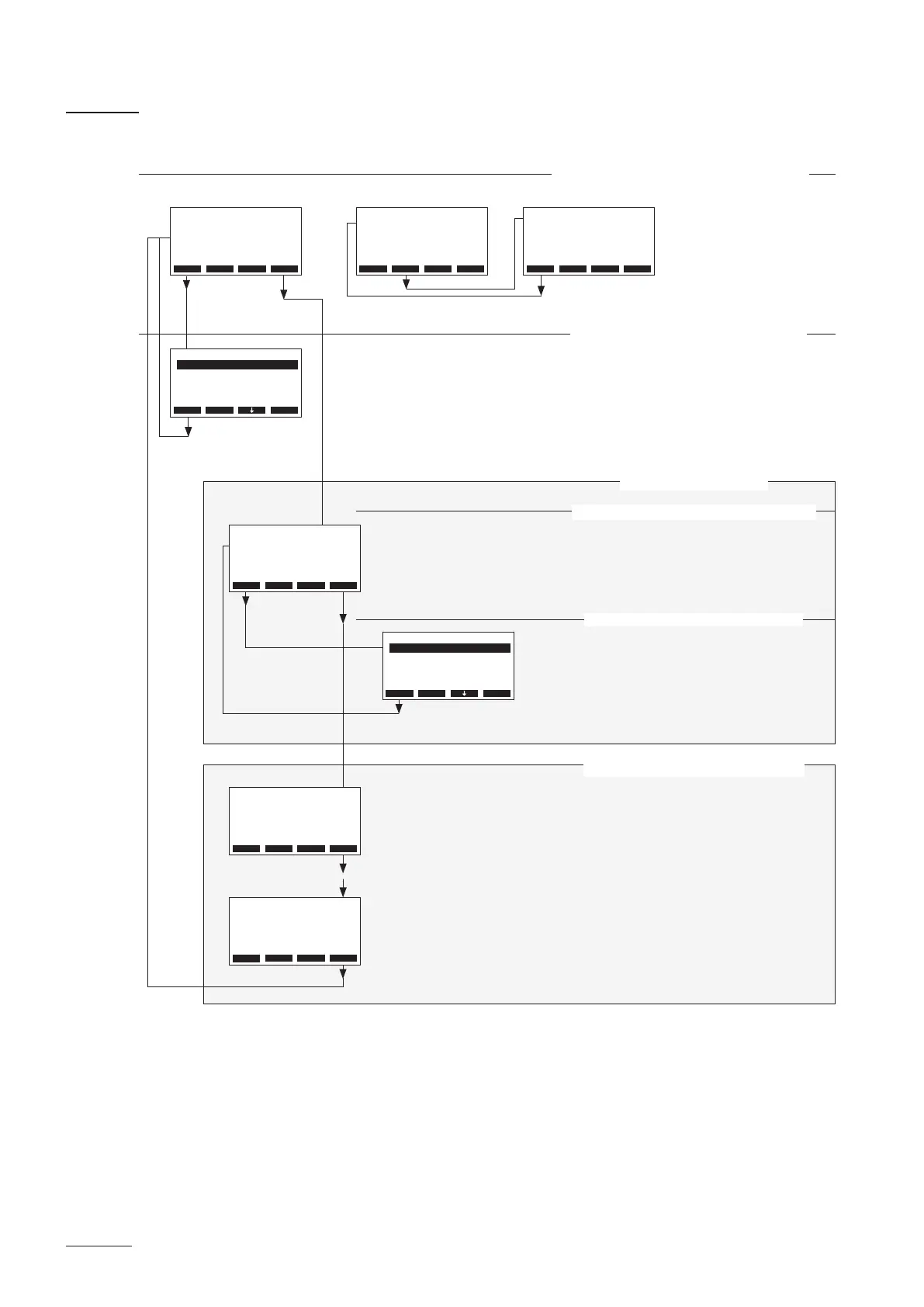

Indication level remote terminal
Standard display Standard display with active malfunction
Steam generator 1
Indication level steam generator 1
Menu level steam generator 1
Note: Detailed information regarding the indication
and the menu level of the steam generators can
be found in chapters 5.1 to 5.5.
Menu level remote terminal
Menu remote terminal
Remote terminal settings (see chapter 5.6.2)
Esc
Warning 17
Unit missing
No Connection
with humidier
Menu Local
Warning
W17 Unit missing
Remote Units:8
Info
