6.3.6 Removal and installation of the cylinder receptacle
For removing the cylinder receptacle the steam cylinder must be removed
rst (see chapter 6.3.1).

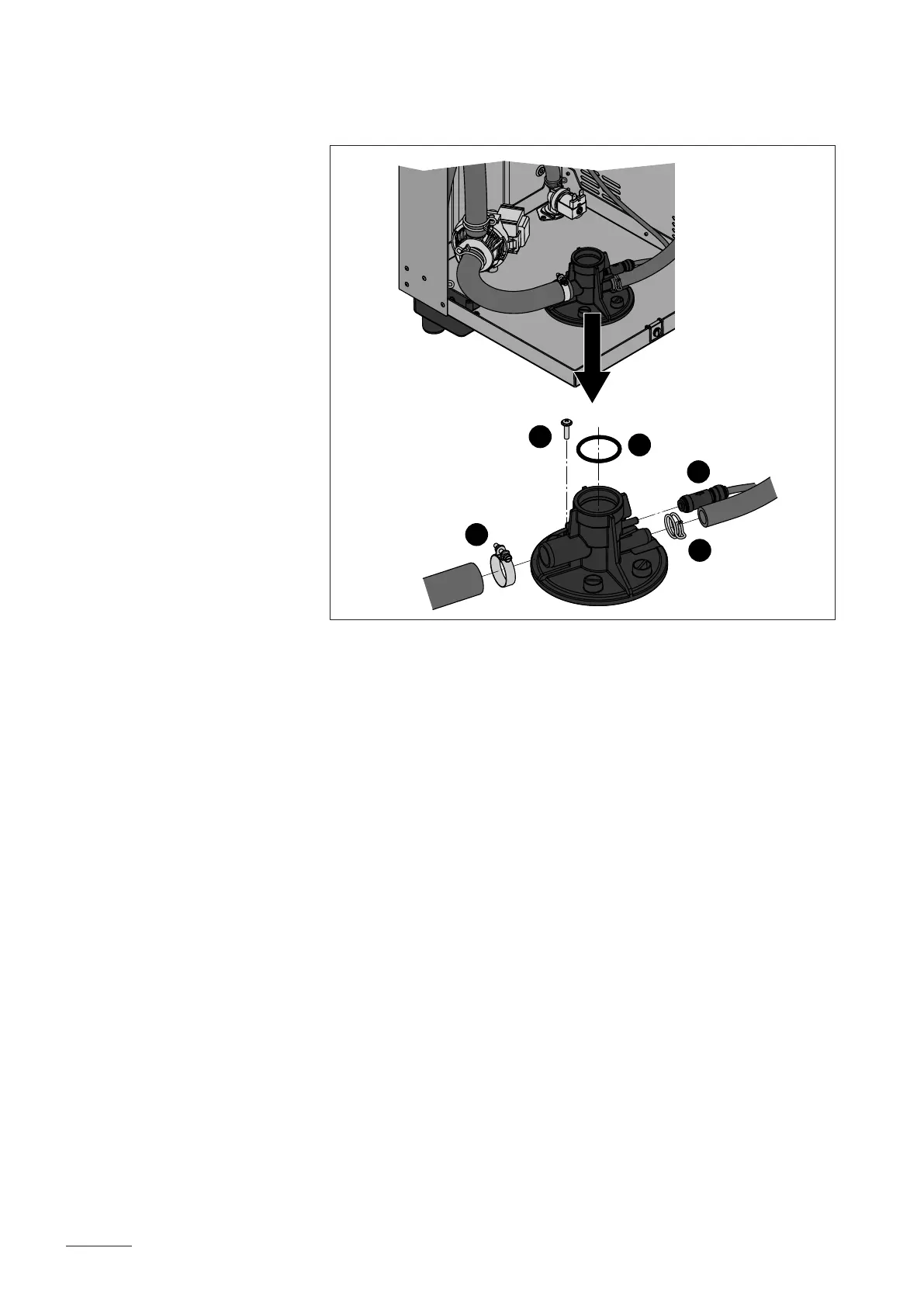

1. Release hose clamps and remove hoses from the connectors.
2. Remove hose from SC pump together with the check valve from the
corresponding connector on the cylinder receptacle.
3. Undo the screw xing cylinder receptacle to the bottom of the housing
with Phillips screwdriver. Then, turn cylinder receptacle counter clockwise
to the stop and remove cylinder receptacle upwards.
4. Remove O-ring from the cylinder receptacle.
The installation of the cylinder receptacle follows the reverse sequence.
Before mounting the cylinder receptacle, check O-ring for damage and
replace if necessary.
