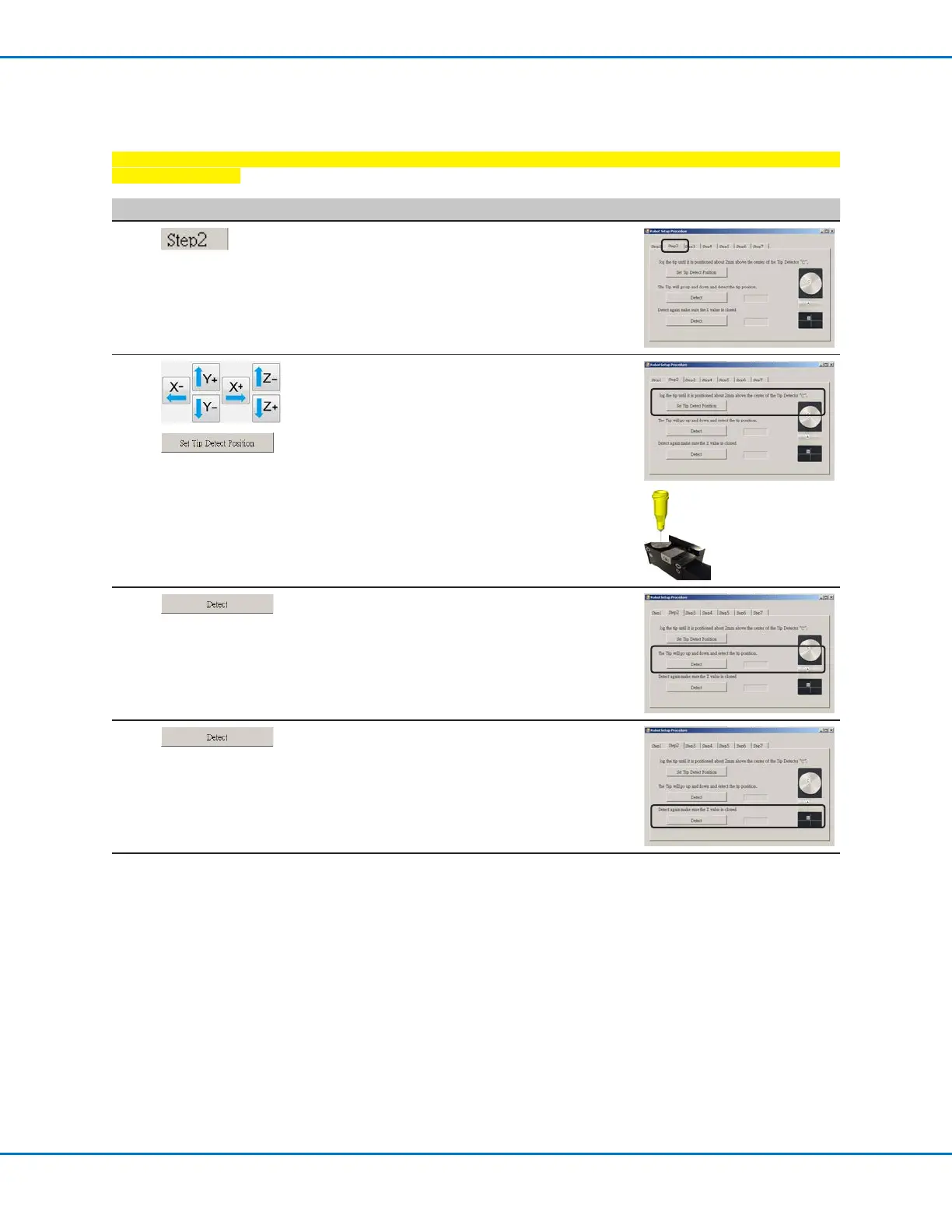

Robot Initial Setup (Step2 Tab): Setting Up the Tip Detector (For Non-Laser Systems)
Important: If your system includes a laser, skip to “Robot Initial Setup (Step3 Tab): Setting the Camera-to-Tip
Offset” on page50.
# Click Step Reference Image
1
• Click the STEP2 tab.
2
>
• Jog the tip until it is positioned about 2 mm
above the sensor on the tip detector.
• Click SET TIP DETECT POSITION.
3 • Click DETECT.
The tip touches the sensor to detect the
tip position and the system displays the tip
offset value next to the Detect button.
4 • Click DETECT again.
The system confirms the tip offset setting.
5 • Continue to “Robot Initial Setup (Step3
Tab): Setting the Camera-to-Tip Offset” on
page50.
