System Setup
2-2
Part 1612500−02
E 2018 Nordson Corporation
Controller Rail Mounting (contd)
4. Install the rail bracket over the operator platform railing (6), tighten the
screws (3) against the rail, then tighten the jam nuts (4) up against the
rail bracket to prevent the screws from loosening.
5. Install the parts tray (10) in the front two holes on top of the controller
using two of the M5 screws (2) in the controller top, and one #10 dished
lock washer (9) included in the kit.
6. Use the bus-bar grounding kit to connect the controller ground stud to
the booth base, as described in the grounding kit instructions.
System Connections

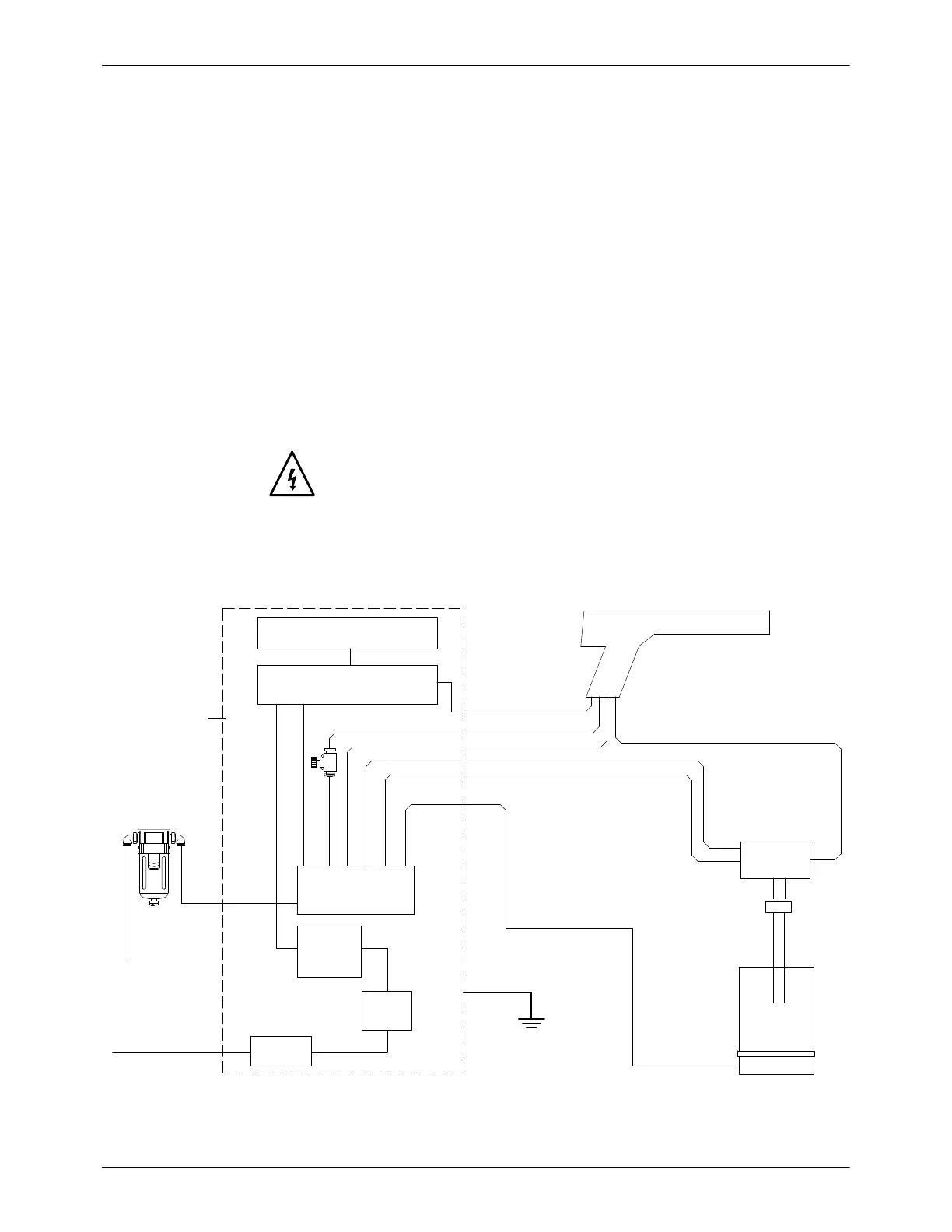

System Diagram
WARNING: This diagram does not show all system grounds. All conductive
equipment in the spray area must be connected to a true earth ground.
NOTE: The input air filter shown in this diagram is mounted behind the
front panel of mobile system dollies. For rail-mount systems, the filter and
mounting bracket are shipped in a kit for mounting at the customer’s plant.
Purge Air
Power
Supply
AC Power Cord
Fluidizing Air
Manifold
24VDC
Air Wash Air
Atomizing Air
Flow-Rate Air
Gun cable
6mm black
4mm clear
8mm blue
8mm black
6mm blue
Spray Gun
Powder hose
Pump Mount and
Pickup Tube
Pump
Input Air
10mm
Filter
Encore LT
Controller
Main Control Board
Keypad
Dolly or Booth
Ground
6mm blue
Feed
Hopper
Relay
Board
Line
Filter
Sol. & Regulator Wiring
10mm
Figure 2-2 Encore PE Manual Powder System Block Diagram
