Nordson Encore Series User Manual

Parts
7-6
Part 1612500−02
E 2018 Nordson Corporation
Spray Gun Options
Cable Extension
Item Part Description Quantity Note
NS 1085168 CABLE, 6 meter extension, shielded, Encore
manual
1
NS: Not Shown
Optional Flat and Corner Spray Nozzles
Spray guns are shipped with a conical nozzle. If replacing the conical
nozzle with an optional flat or corner spray nozzle, order a new nozzle nut
and flat spray electrode holder kit along with a nozzle.
1601744
6 mm Flat Spray Nozzle
1601745
4 mm Flat Spray Nozzle
1601748
6 mm Corner Spray Nozzle
1601749
4 mm Corner Spray Nozzle
1601431
Nozzle Nut
1602194
Flat Spray Electrode Holder Kit
Wear Sleeve
Electrode Holder
Electrode

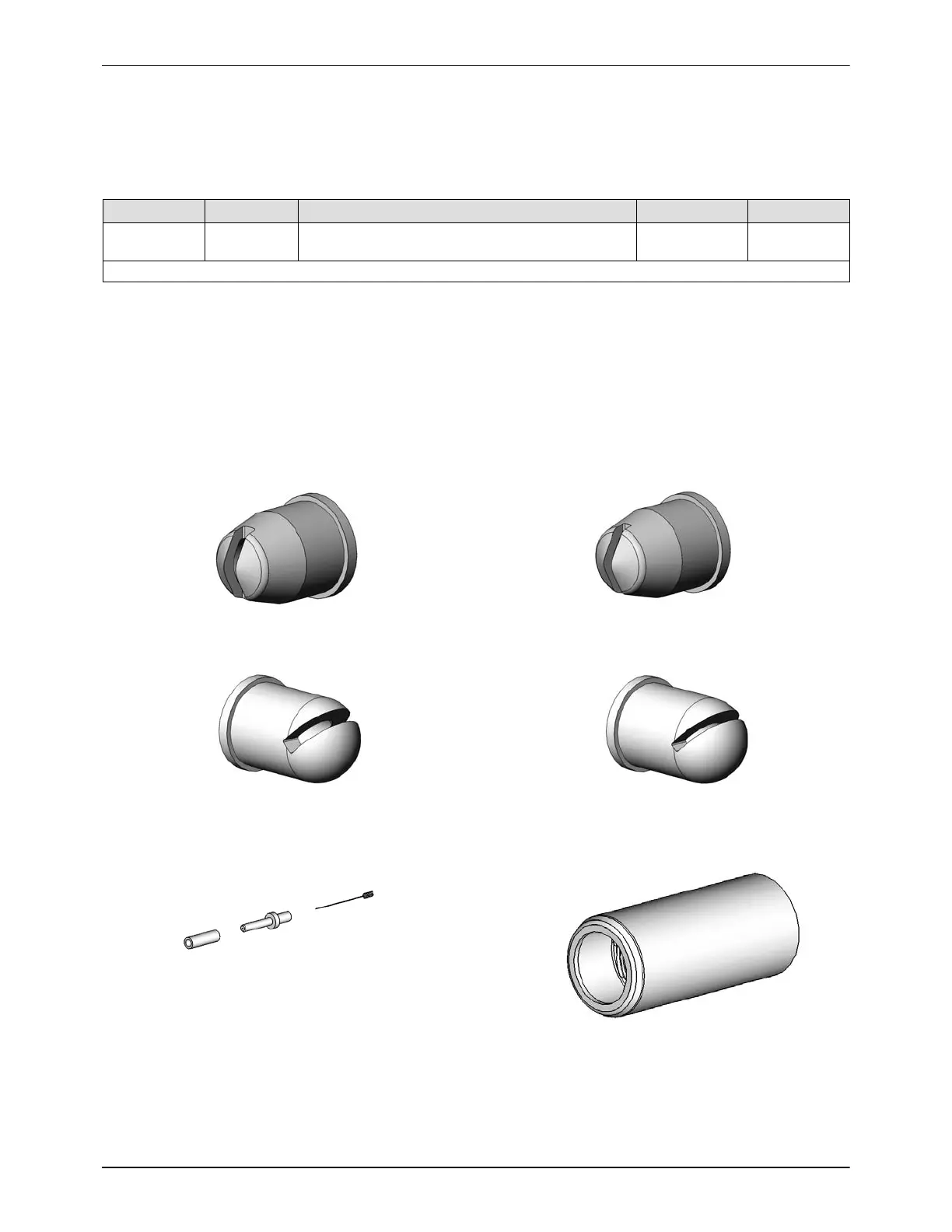

Figure 7-21 Optional Flat and Corner Spray Nozzles

Nordson Encore Series Specifications

General

Maximum Output Voltage	100 kV
Power Source	Electric
Maximum Powder Output	20 lbs/hr (9.07 kg/hr)
Air Consumption	10-15 CFH (4.7-7.1 L/min)
Application	Powder coating
Technology	Electrostatic
Maximum Flow Rate	20 lbs/hr (9.07 kg/hr)
Weight	1.5 lbs (0.68 kg)
