Operation
4-2
Part 161250002
E 2018 Nordson Corporation
Atomizing Air
(Classic)
Total Flow
(Smart Flow)
Select Charge
Mode Settings
KV/μA Panel
KV/μA Display
Selection
Smart Flow
Mode Indicator
Flow Air
(Classic)
Powder Flow Rate
(Smart Flow)
Enable/Disable
Trigger LED

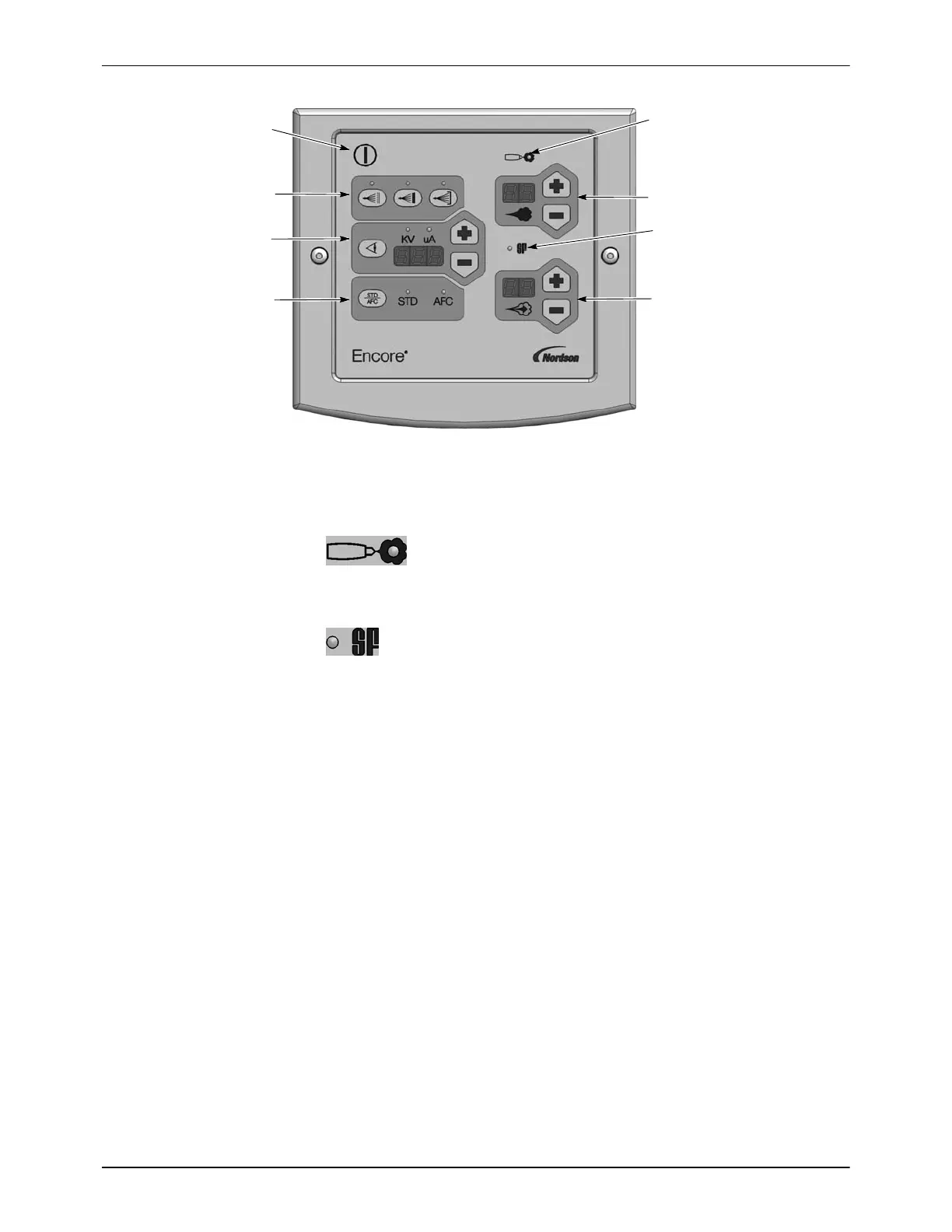

Figure 4-1 Controller Interface
Displays and LEDs
When the spray gun is triggered the Trigger LED lights. Actual
kV/μA outputs are displayed. When the spray gun is not triggered the
kV/μA setpoints are displayed.
When the controller is configured for Smart Flow mode, the Smart
Flow LED is lit.
The air flow displays always show the setpoints.
Electrostatic Settings
Electrostatic output can set in Select Charge mode, Custom mode, or
Classic mode. Custom or Classic mode is chosen when the controller is
configured. Set the electrostatic output depending on the shape and type of
product being coated and the type of powder used.
Select Charger Mode
The Select Charge modes are non-adjustable electrostatic settings. The
LEDs above the Select Charge mode buttons indicate the selected mode.
The electrostatic setpoints for the Select Charge Modes are:
Re-Coat 100 kV, 15 μA
Metallics 50 kV, 50 μA
Deep Recesses 100 kV, 60 μA
NOTE: Pressing the + or keys have no effect when a Select Charge
mode is selected.
