Nordson Encore Series - Cable Replacement; Cable Removal

Repair
6-7
Part 1612500−02
E 2018 Nordson Corporation
1
2
3
4
5
6
8
9
7
10
5
11
7
8
Conical Spray Nozzle
Flat Spray Nozzle

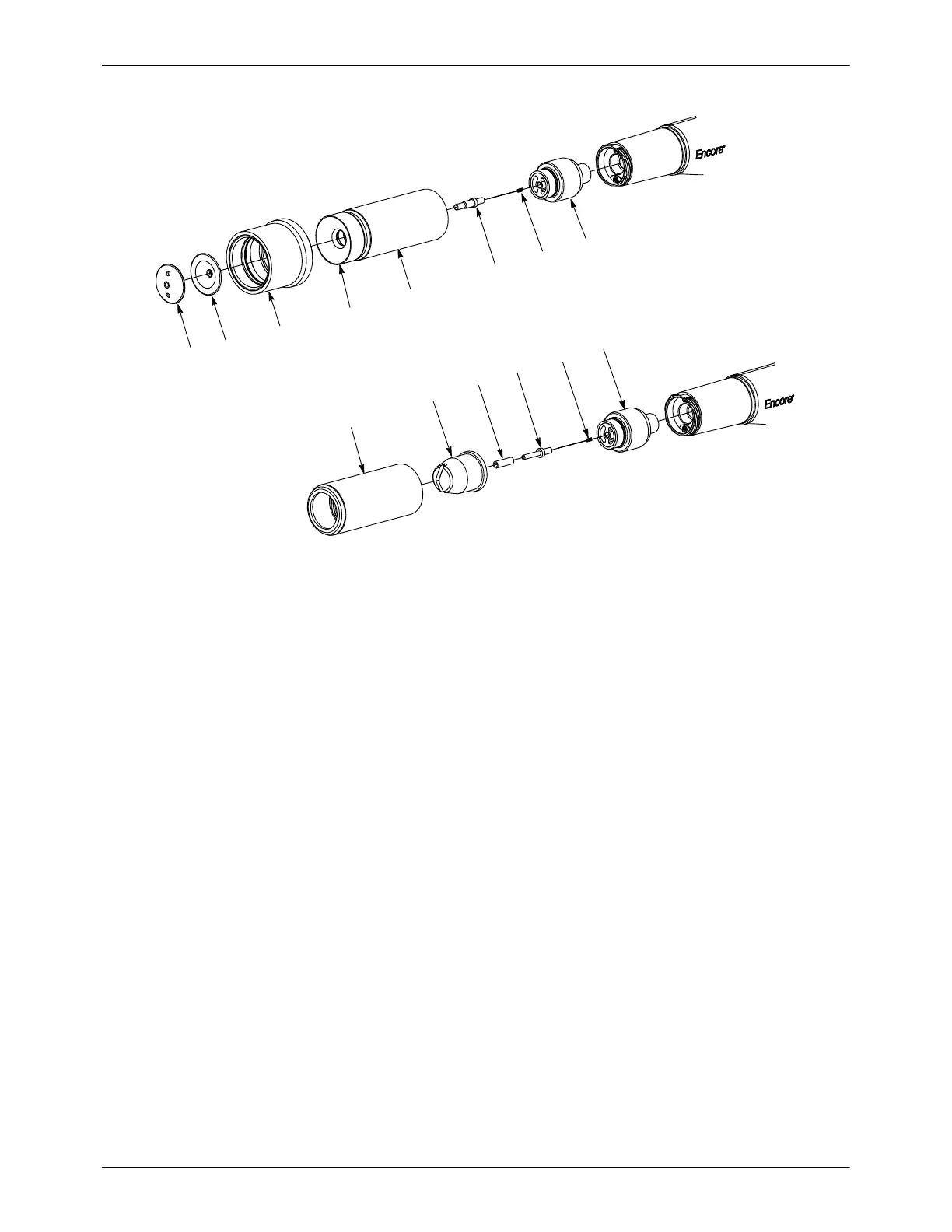

Figure 6-6 Changing From Conical to Flat or Corner Spray Nozzle (Shown with Flat Spray Nozzle).
1. Deflector cap
2. Deflector
3. Pattern sleeve
4. Conical nozzle
5. Nozzle nut
6. Conical electrode holder
7. Electrode
8. Electrode support assembly
(XD shown)
9. Flat spray nozzle
10. Wear sleeve
11. Flat electrode holder
Cable Replacement
Cable Removal
1. Disconnect the gun cable from the controller.
2. See Figure 6-1. Remove the bottom screw (31B) from the housing (29).
3. See Figure 6-7, View A. Loosen the two M3 x 20 screws (31B) securing
the handle base (39) to the handle.
4. Pull the base away from the handle enough to free the bottom edge of
the ground pad (27) from the base.
5. Pull the bottom edge of the ground pad out and away from the handle.
6. See Figure 6-7, View B. Remove the M3 x 6 screw (25), lock washer
(26), and ground terminal from the ground pad.
7. Remove the E-ring (32) from the cable.
