Rear Panel Components

Figure 6-17 is an exploded view of the components of the rear panel. Refer

to the following when making repairs:

S Section 7, Parts for parts and service kits.

S Section 5, Troubleshooting, for wiring diagrams and circuit board

connections.

789

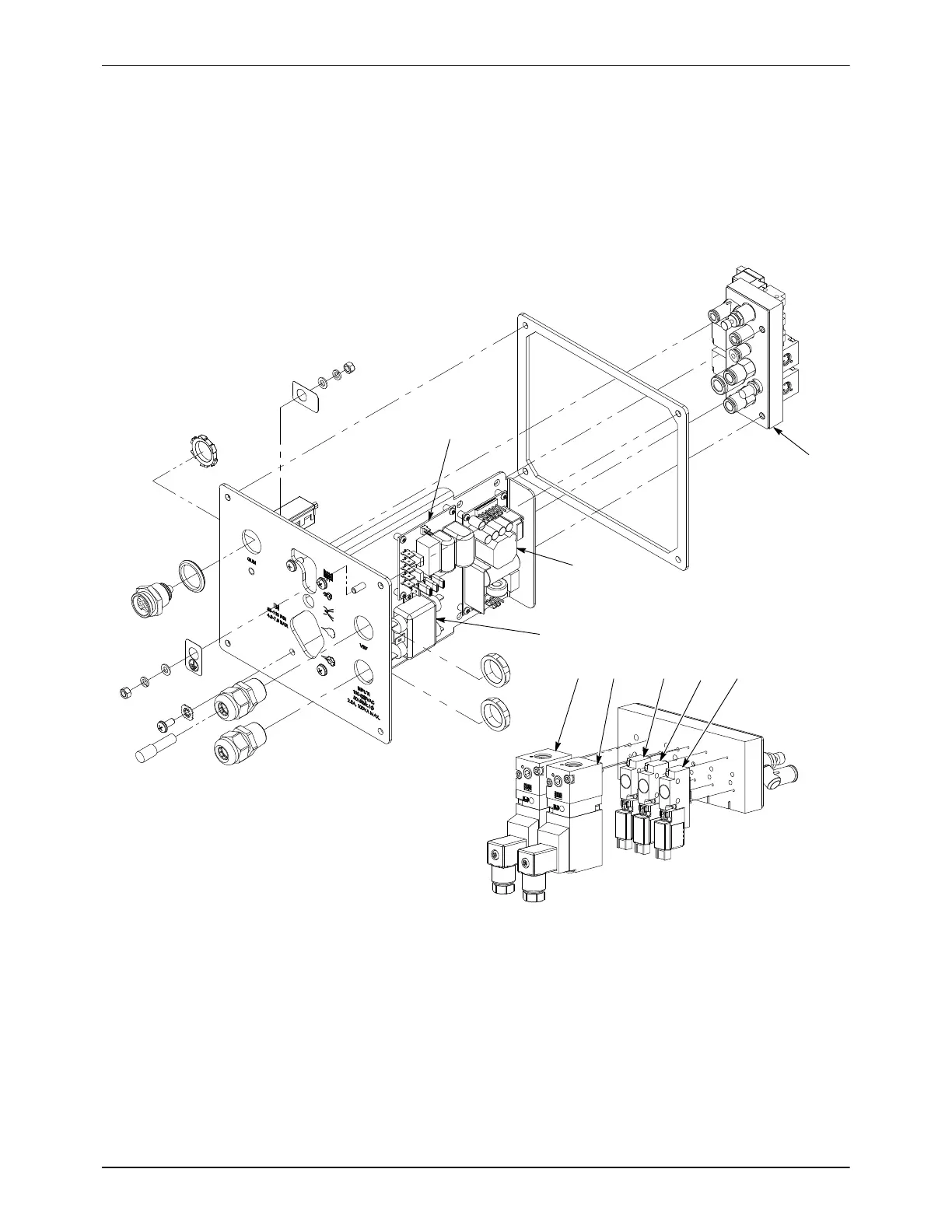

Figure 6-17 Sub Panel Parts Replacement

1. Manifold assembly

2. Relay board

3. Power supply

4. Line filter

5. Fluidizing air solenoid valve

6. Purge air solenoid valve

7. Air wash air solenoid valve

8. Flow-rate air regulator

9. Atomizing air regulator
