Repair
6-13
Part 1612500−02
E 2018 Nordson Corporation
Electrode Support Assembly Replacement − XD Version
NOTE: The XD electrode support assembly ships with new spray gun
assemblies.
XD Electrode Support Assembly Details: (See Figure 6-14)
S The electrode support consists of items (3 and 4).
S The electrode support (4) contains a resistor. If the resistor fails, the
entire assembly must be replaced.
S The electrode holder (1) and electrode (2) are sold separately. Conical
and flat/corner spray nozzles use different electrode holders.
1. Unscrew the electrode holder (1) and remove the electrode (2).
2. Visually inspect the following area of the electrode support assembly.
Replace the entire assembly if either area is damaged.
S The ceramic spider (4a).
S The PU seal (4b).
3. Install the electrode into the electrode holder, then screw the electrode
holder into the ceramic spider.
1
2
3
4a
4b
4

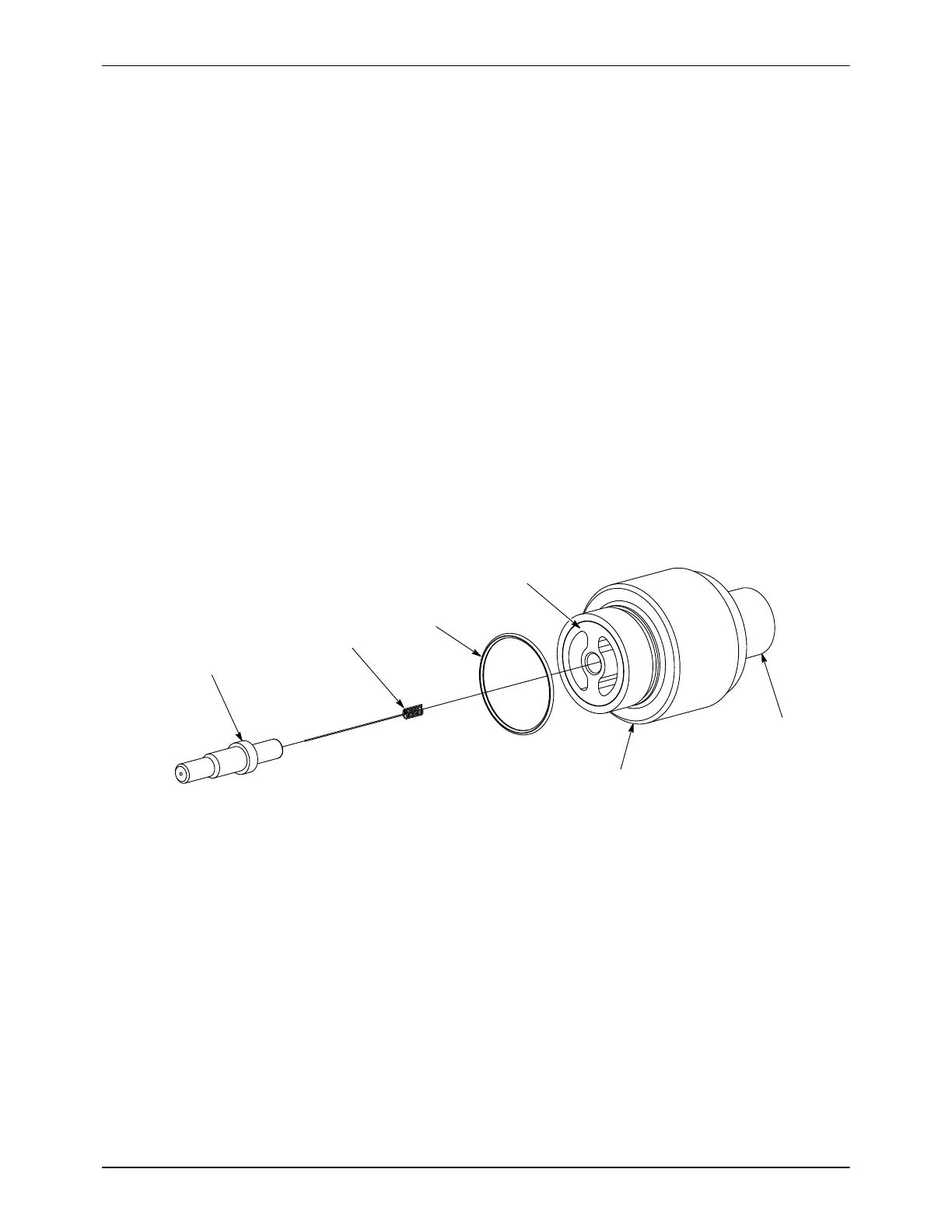

Figure 6-14 XD Electrode Support Assembly Replacement
1. Electrode holder
2. Electrode
3. O-ring
4. Electrode support assembly
4a. Ceramic spider
4b. PU seal
