Repair
6-1
Part 1612500−02
E 2018 Nordson Corporation
Section 6
Repair
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Spray Gun Repair
NOTE: All item numbers in the spray gun repair illustrations are the same
as the item numbers in the spray gun parts list.
Power Supply and Powder Path Replacement
Gun Disassembly
1. Remove the nozzle nut, nozzle, and electrode support as described in
the Operation section on page 5−2.
2. Remove the screws (31A, 31B) and hook, cover, and housing (28, 29,
30).
3. Pull the power supply harness out of the bulkhead, and separate the
connectors. You may need to insert a small flat-bladed screwdriver into
the recess in the top of the connector to release the catch.
Power
Supply
Connectors
Trigger Connectors
28
30
31A
31B
29

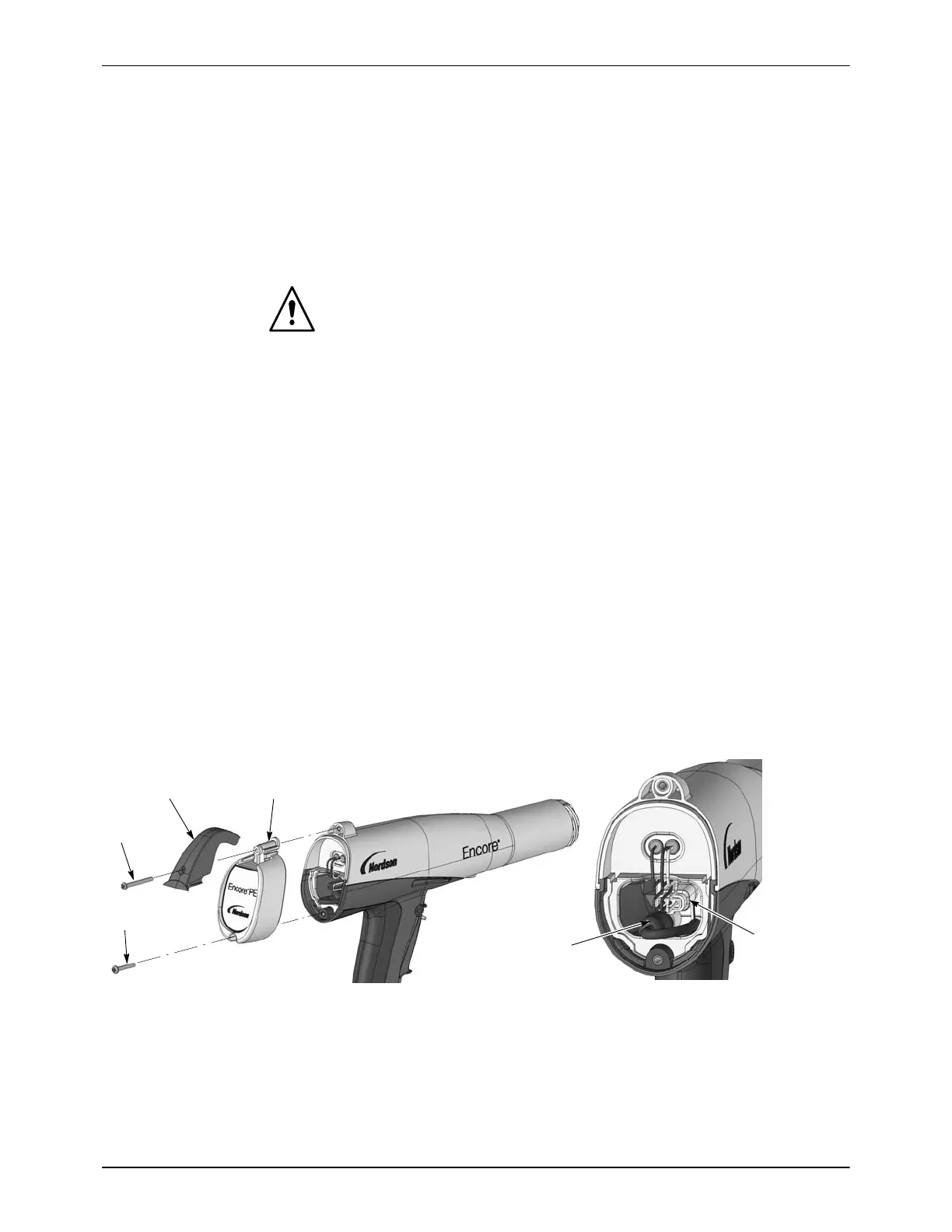

Figure 6-1 Gun Disassembly
28. Housing cover
29. Display housing
30. Hook
31A. M3 x 30 screw
31B. M3 x 20 screw
