System Setup

2-4

Part 1612500−02

E 2018 Nordson Corporation

Spray Gun Connections

Unpack the spray gun. Uncoil the cable, the 4-mm clear and 6-mm black air

tubing, and the 1/2 in. powder hose. Make the following connections:

Gun Cable

See Figure 3-4.

1. Connect the gun cable to the GUN receptacle on the rear panel of the

controller. The cable plug and receptacle are keyed.

2. Thread the cable nut onto the receptacle and tighten the nut securely.

3. Secure the cable strain relief to the rear panel with one of the existing

panel screws.

Mobile System

Rail/Wall Mount System

Strain Relief

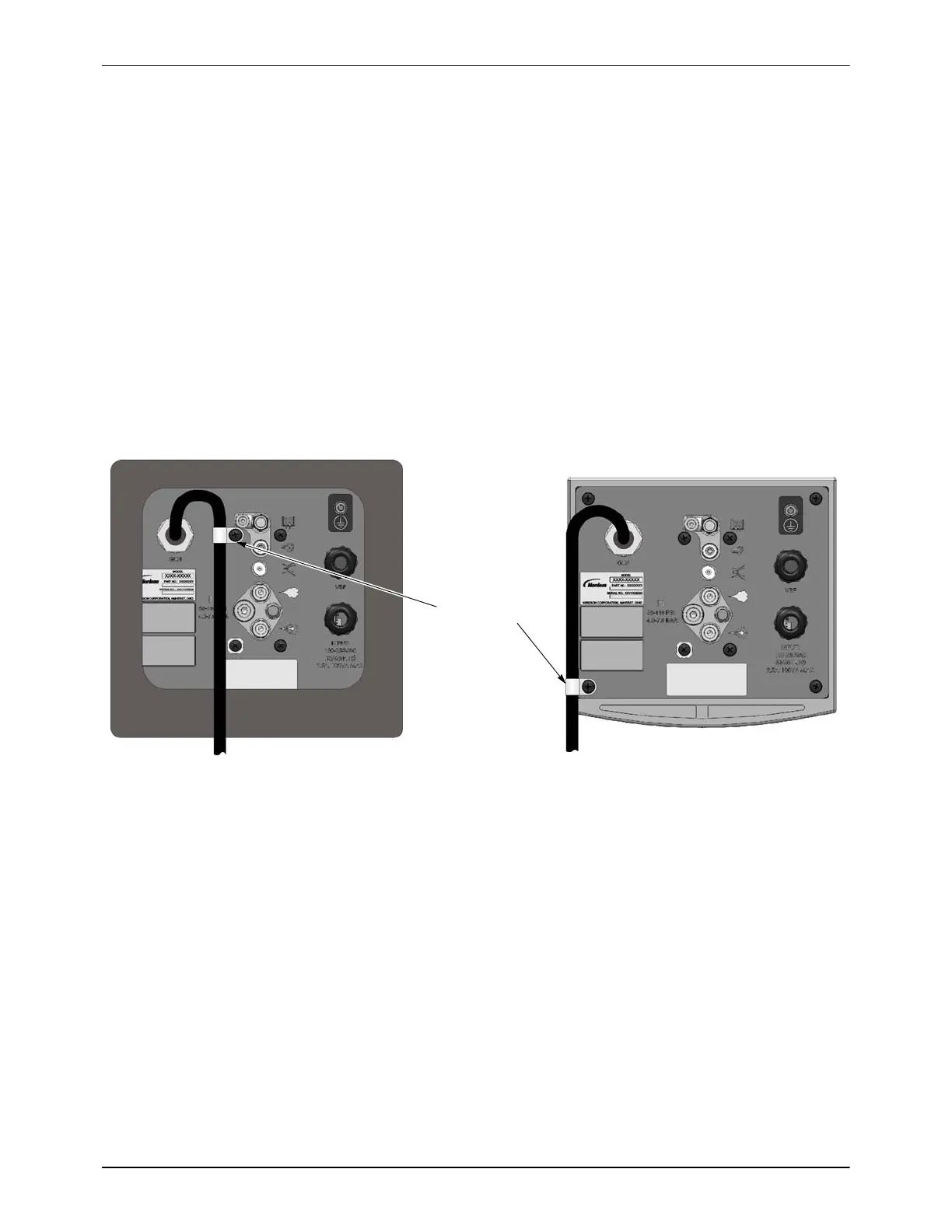

Figure 2-4 Gun Cable Connection and Strain Relief Mounting
