Troubleshooting
5-7
Part 1612500−02
E 2018 Nordson Corporation
Electrode Support Resistance Test
Use a megohm meter to measure the resistance of the electrode assembly
from the contact ring on the back to the antenna wire in the front. The
resistance should be 19−21 megohms. If the resistance is out of this range
replace the electrode assembly.
19−21 Megohms

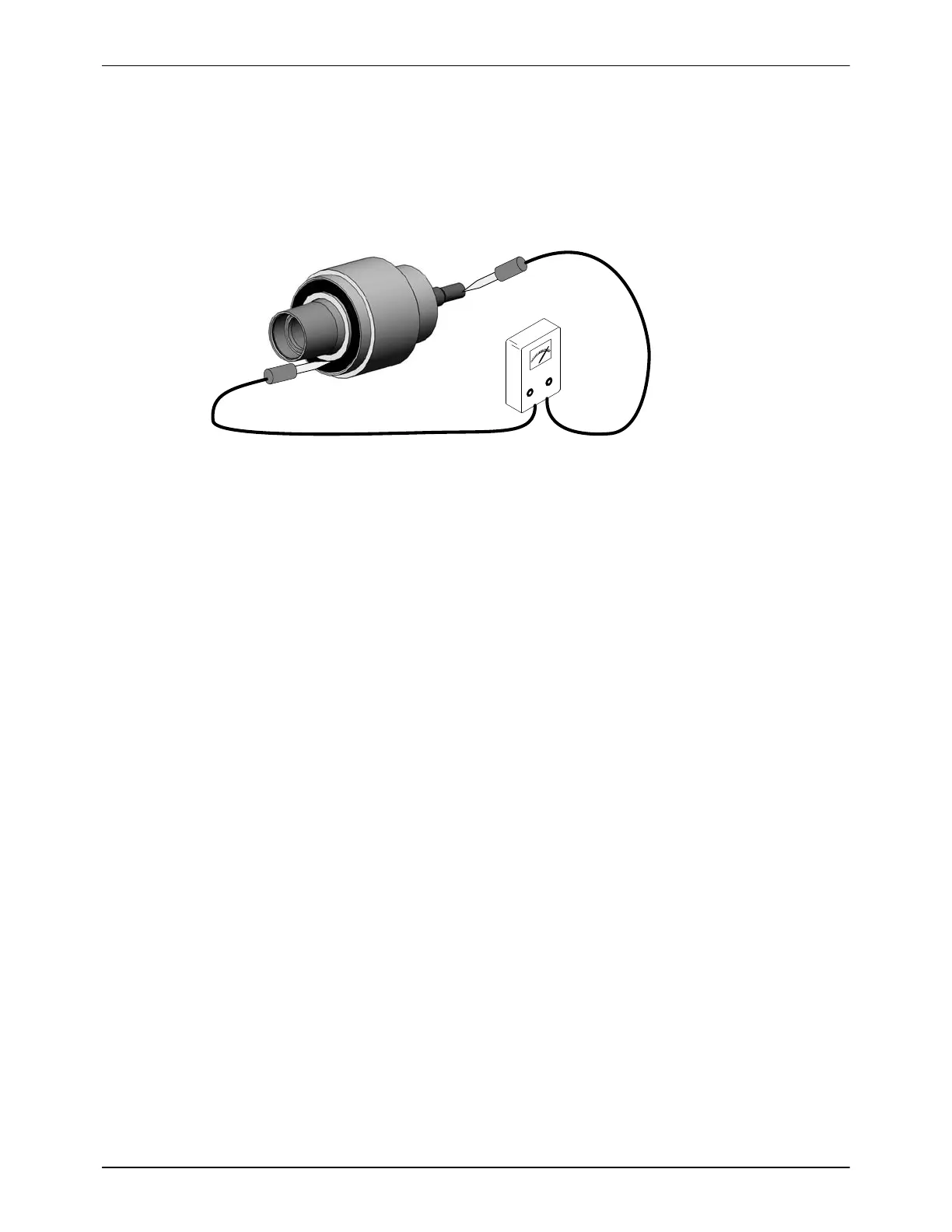

Figure 5-9 Electrode Support Resistance Test
