6. See Figure 6-9. Insert a small flat-bladed screwdriver behind the clear
pull tab at the top of the switch, then grasp the pull tab with a finger and
gently pull it away from the handle.

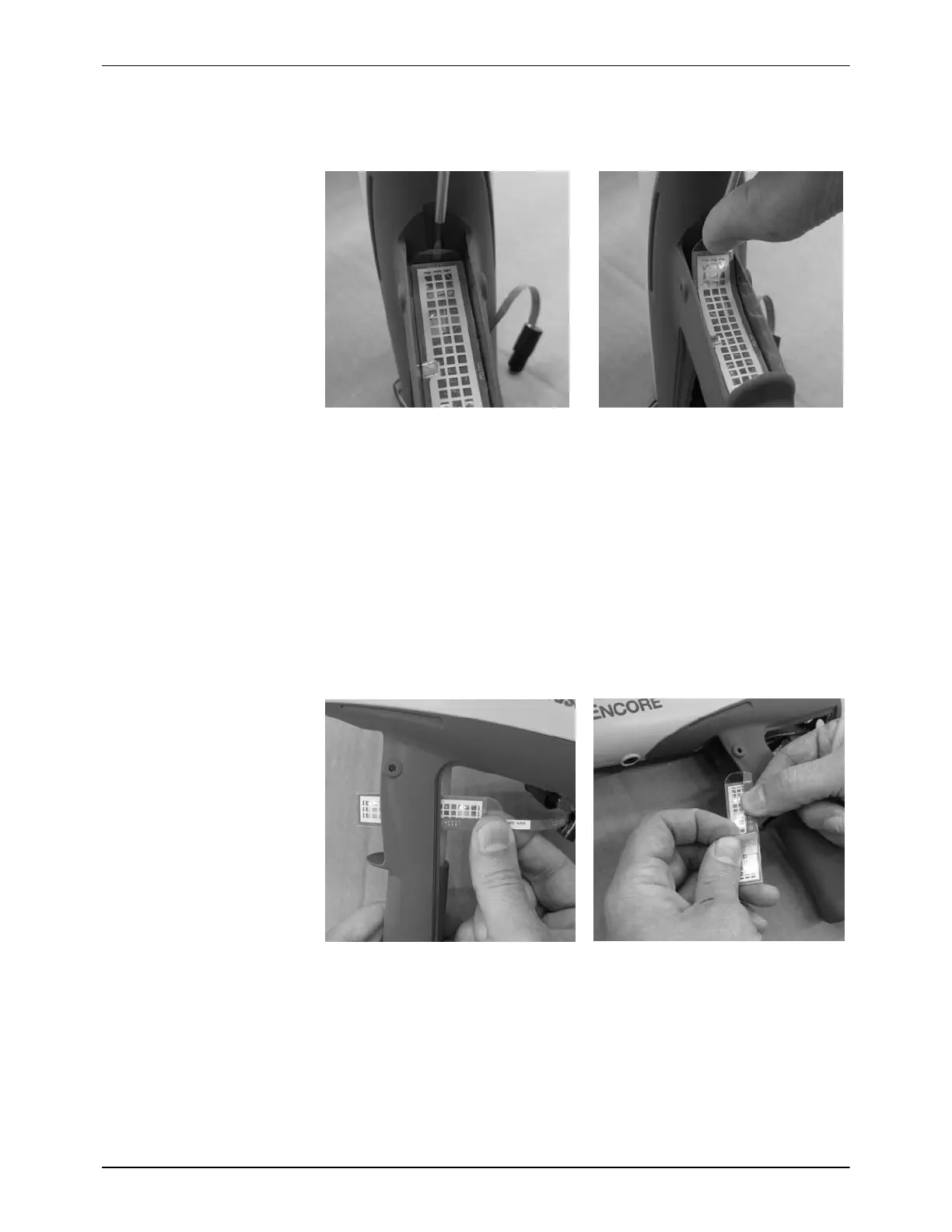

Figure 6-9 Removing the Trigger Switch from the Handle
7. To remove the switch, cut the ribbon cable, or feed the bottom of the
switch through the slot in the trigger recess and remove it from the
handle.
Switch Installation
1. See Figure 6-10. Orient the new switch with the grid facing away from
the inlet tube, then carefully feed the square bottom end of the switch
around the left side of the inlet tube and through the slot in the trigger
recess.
2. Peel off the small piece of tape holding the ribbon cable against switch.
Figure 6-10 Installing the Trigger Switch − Steps 1 and 2
3. See Figure 6-11. Straighten the ribbon cable, then bend the pull tab at
the top of the switch so that it is perpendicular to the switch.
To Next Page
