6-11

Part 1612500−02

E 2018 Nordson Corporation

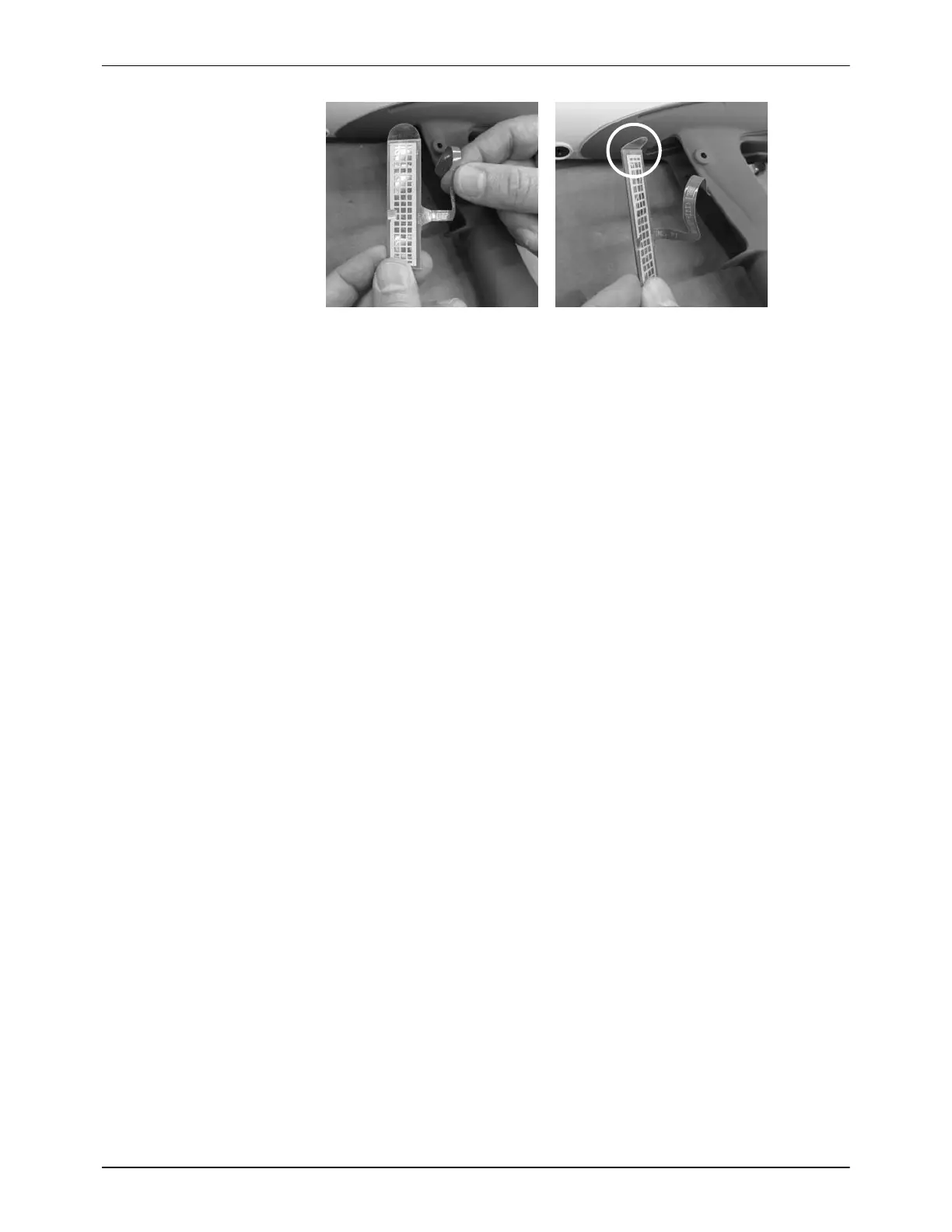

Figure 6-11 Installing the Trigger Switch − Step 3

4. See Figure 6-12. Peel the adhesive release liner from the switch.

5. Carefully install the switch, pull tab up, against the bottom and right

edges of the trigger recess.

6. Make sure the ribbon cable is not trapped or pinched, then press the

switch against the back of the recess. Run your finger up and down on

the switch to ensure it is securely adhered to the handle.
