System Setup
2-5
Part 161250002
E 2018 Nordson Corporation
Air Tubing and Powder Hose
1. See Figure 3-5. Connect the 6-mm black air tubing to the
quick-disconnect fitting in the gun handle.
2. Connect the 4-mm clear electrode air wash tubing to the barbed fitting in
the gun handle.
4-mm Clear Electrode
Air Wash Tubing
6-mm Black
Purge Air Tubing
Hose Adapter
Powder Hose
Gun Cable

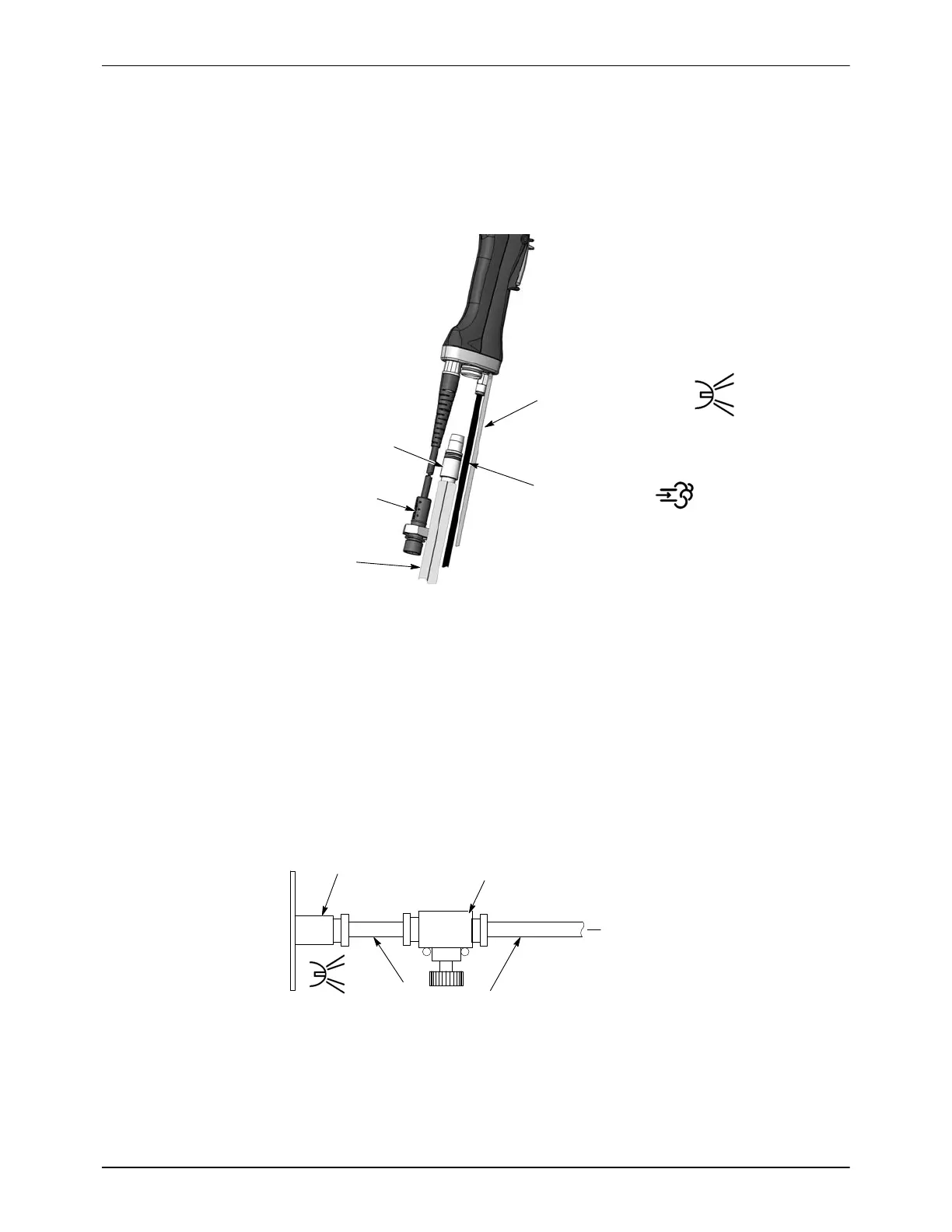

Figure 2-5 Gun Connections
3. Connect the powder hose to the hose adapter, then plug the hose
adapter into the handle.
4. Route the air tubing to the rear panel of the gun controller.
5. See Figure 3-3. Connect the 6-mm black tubing to the purge air
quick-disconnect fitting (8).
6. See Figure 3-6. Connect the 4-mm clear tubing and the flow control
valve supplied with the system to the air wash connector on the rear
panel as shown. The flow control valve can be located anywhere
desired. Use a tubing cutter to make sure the tube ends are square.
To Gun
Air Wash Connector
4-mm Tubing
Flow Control Valve
Figure 2-6 Flow Control Valve and Air Wash Tubing Connection
