Repair
6-5
Part 1612500−02
E 2018 Nordson Corporation
5. Press the outlet tube elbow (22) onto the end of the inlet tube, with the
outlet end oriented toward the front of the gun as shown.
6. Before proceeding, make sure the elbow is seated on the inlet tube.
The distance from the top of the elbow to the top of the bulkhead
bracket should be approximately 4 mm.
Gun Reassembly
1. Install the power supply in the gun body as described in Power Supply
Replacement, if not already done.
2. See Figure 6-5. Insert the end of the outlet tube into the gun body, route
the power supply connector through the top hole in the bulkhead, and
coil the air wash tubing around the elbow as shown.
NOTE: Make sure that the power supply harness is not pinched between
the bulkhead and the power supply.
4mm
Air Wash
Tubing
Power
Supply
Connector
Elbow
Powder
Outlet
Tube
Bulkhead
Bracket
Handle Tab
Ribs
Front of Gun

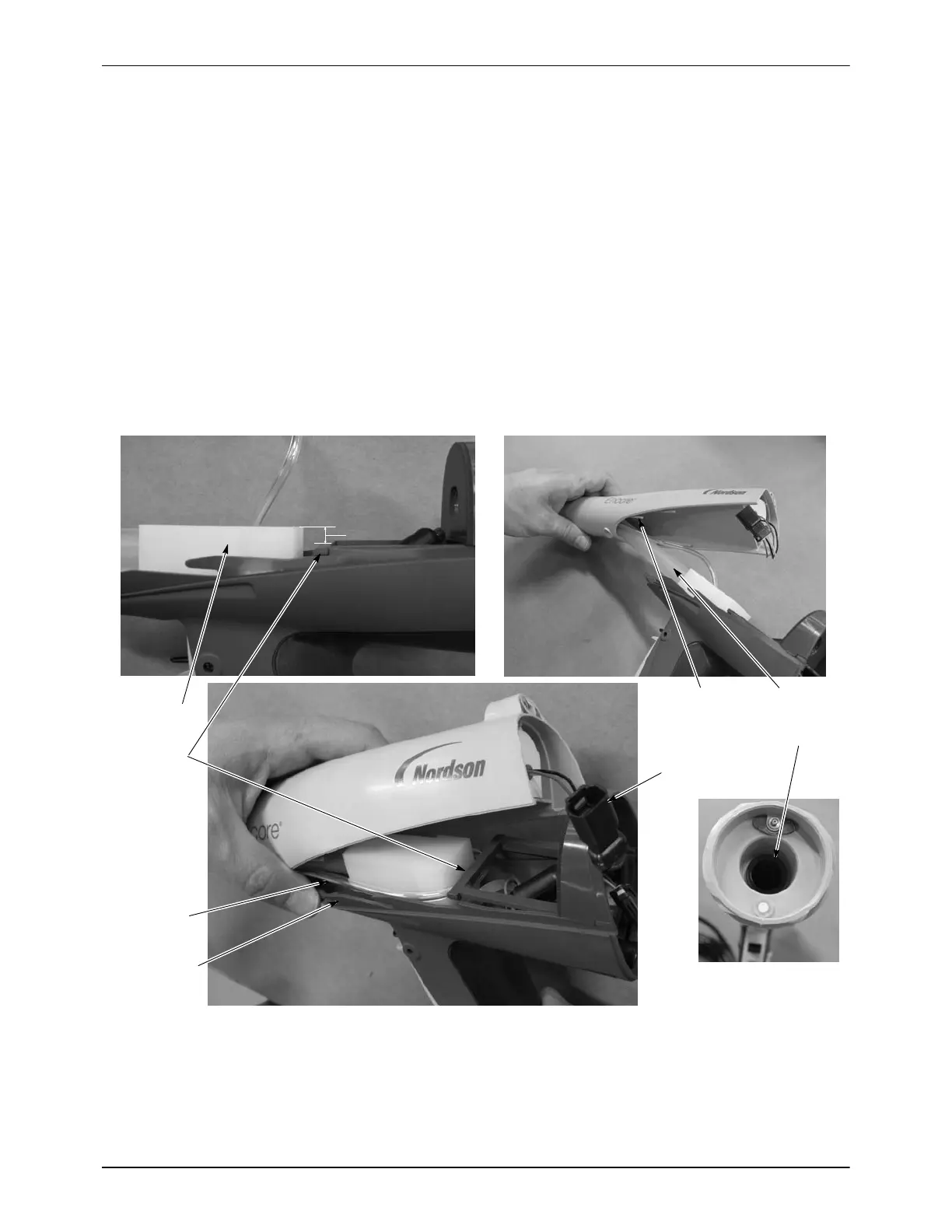

Figure 6-5 Installing the Gun Body on the Handle
3. Align the gun body with the handle and slide them together, engaging
the internal ribs of the gun body with the handle tabs. While pushing the
body and handle together, use your finger to make sure the end of the
outlet tube fits into the hole in the front of the gun body.
