System Setup
2-3
Part 161250002
E 2018 Nordson Corporation
System Setup and Connections
Controller Connections Overview
The rear panel of the controller provides connections for power, ground,
gun, pump, and feed hopper fluidizing air.
3
L1
L2
GND
(BROWN)
(BLUE)
(GRN/YEL)
1
2
4
5
6
7
8
9
10

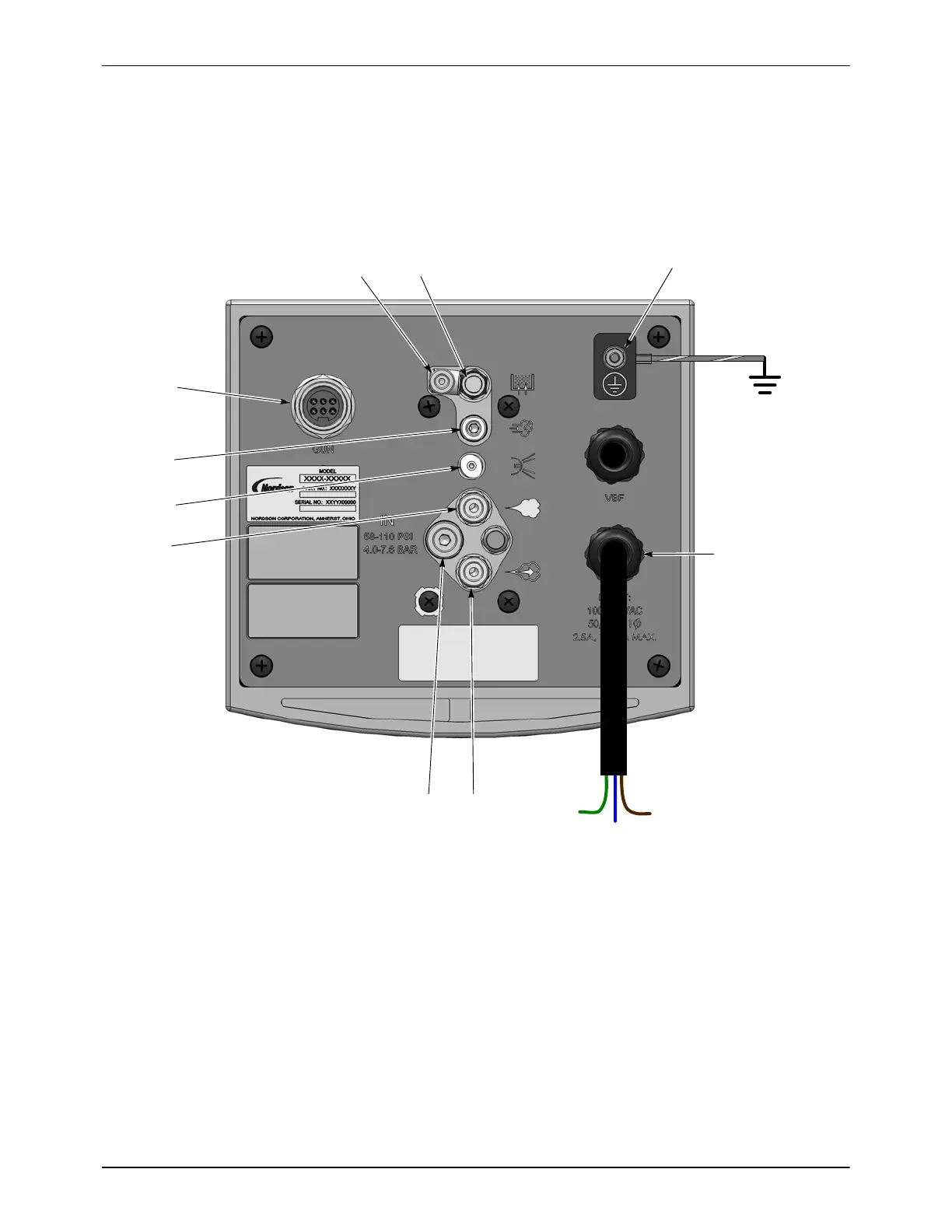

Figure 2-3 Encore LT Gun Controller Connections
1. Electrostatic ground (to cart or booth)
2. Power cord (15ft)
3. Atomizing air (blue, 8mm, pump)
4. Air supply (blue, 10mm)
5. Flow air (black, 8mm, pump)
6. Gun cable
7. Purge air (black, 6mm, gun)
8. Fluidizing air (blue, 6mm)
9. Fluidizing air needle valve
10. Electrode air wash (clear,
4mm, gun)
