Controller Repair

WARNING: Shut off the controller and disconnect the power cord or

disconnect and lock out power at a breaker or disconnect ahead of the

controller before opening the controller enclosure. Failure to observe this

warning could result in a severe electrical shock and personal injury.

CAUTION: Electrostatic sensitive device. To avoid damaging the controller

circuit boards, wear a grounding wrist strap and use proper grounding

techniques when making repairs.

Front Panel Components

Refer to Section 5, Troubleshooting, for the controller electrical schematic

and harness connections. Refer to Section 7, Parts for repair kits.

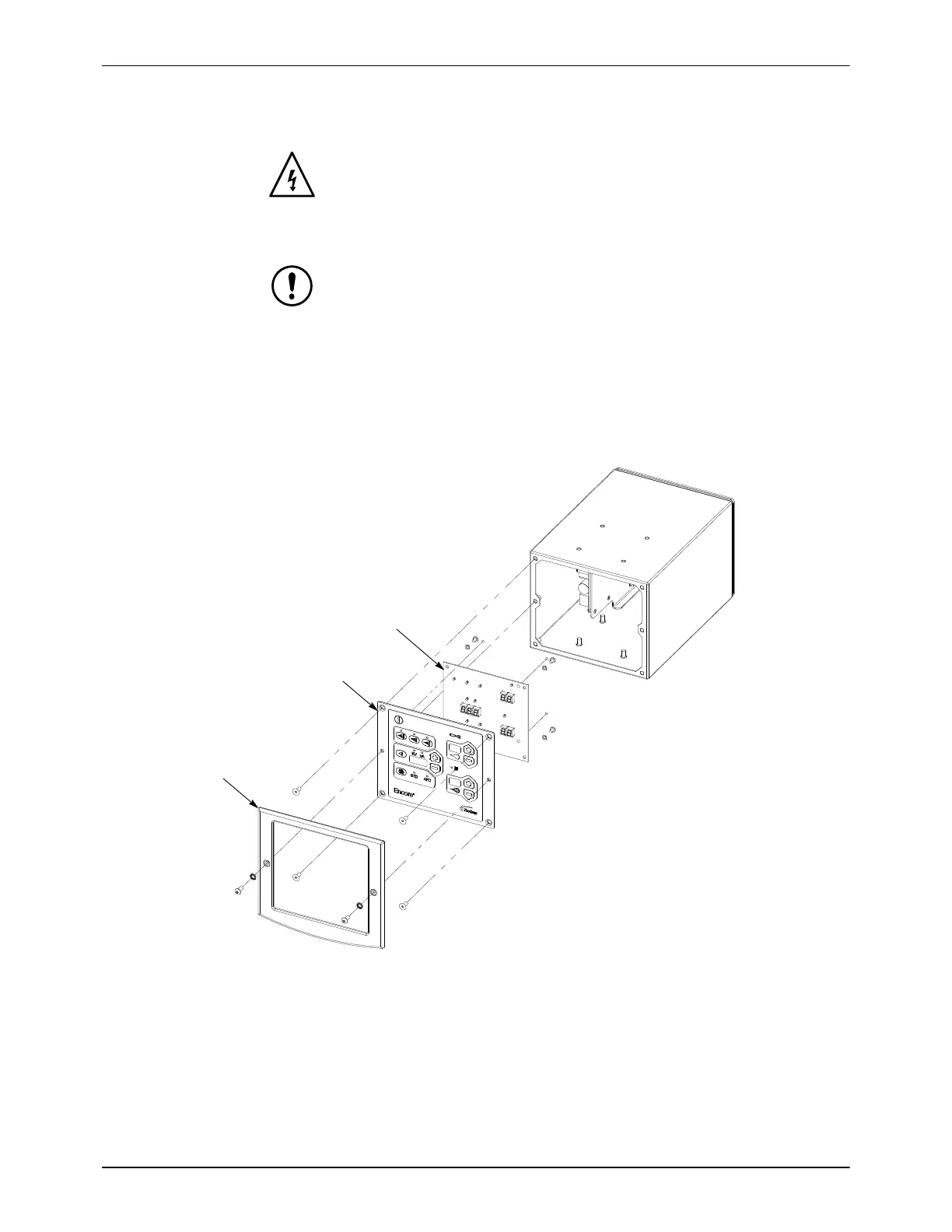

Figure 6-16 Controller Front Panel

1. Bezel 2. Keypad 3. Main control board
