Nordson Encore Series User Manual

Parts
7-5
Part 1612500−02
E 2018 Nordson Corporation
Electrode Support Assemblies
2
1
XD Electrode Support Assembly

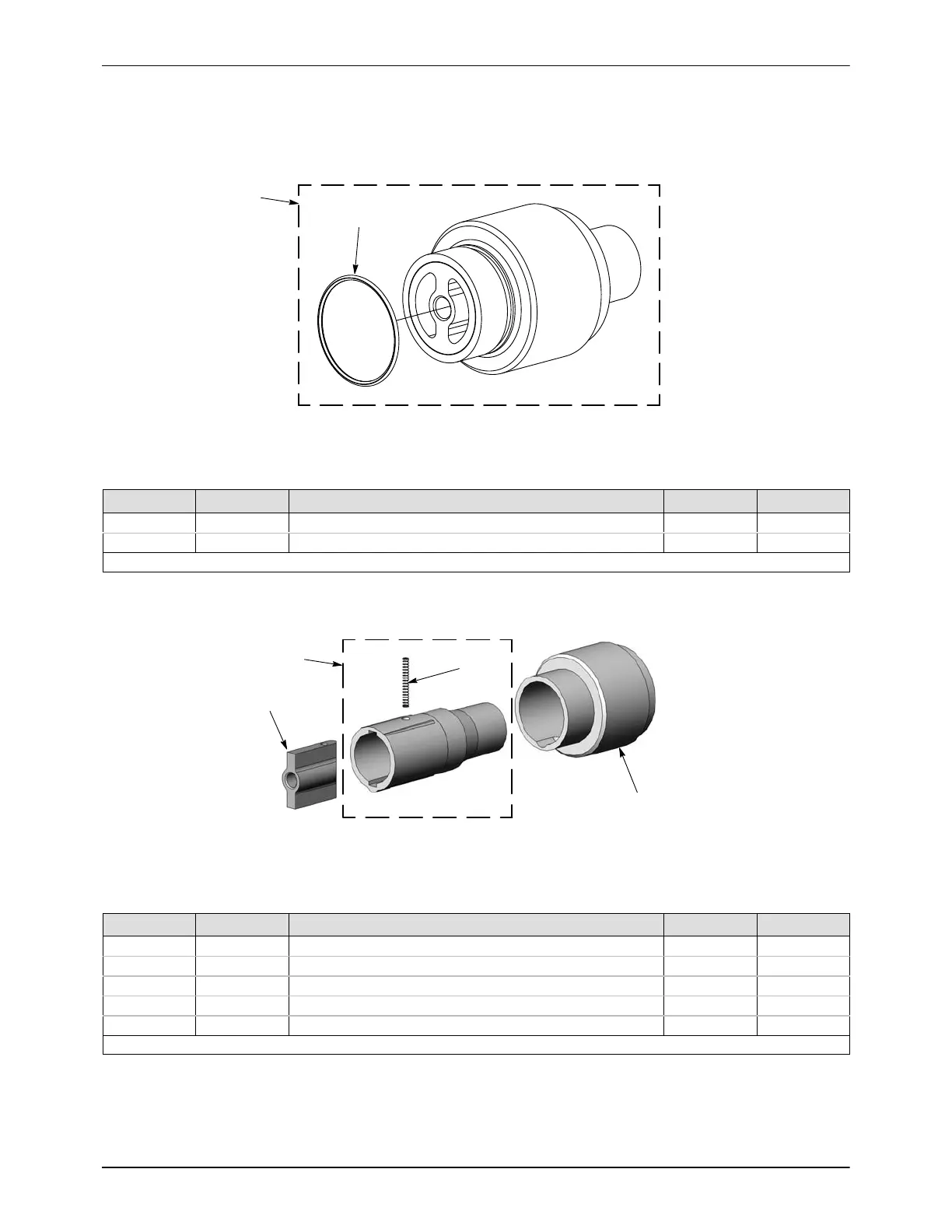

Figure 7-19 XD Electrode Support Assembly
See Figure 7-19.
Item Part Description Quantity Note
1 1612354 SUPPORT ASSEMBLY, electrode, Encore PE XD 1 A
2 1612461
S O-RING, Buna N, 24 mm x 1 mm
1
NOTE A: XD Electrode Support Assembly ships with new spray guns.
3
4
6
5
SD Electrode Support Assembly − Option
Figure 7-20 SD Electrode Support Assembly
See Figure 7-20.
Item Part Description Quantity Note
− 1601423 SUPPORT ASSEMBLY, electrode, Encore PE, SD 1 A, B
3 1602193
S KIT, sleeve, Encore PE
1
4 1601429
SS SPRING, compression, 0.088 OD x 0.75 long
1
5 1602192
S KIT, electrode support, Encore PE
1
6 1601428
S SPIDER, ceramic, Encore PE
1
NOTE A: SD Electrode Support Assembly is sold as an optional repair part.

Nordson Encore Series Specifications

General

Maximum Output Voltage	100 kV
Power Source	Electric
Maximum Powder Output	20 lbs/hr (9.07 kg/hr)
Air Consumption	10-15 CFH (4.7-7.1 L/min)
Application	Powder coating
Technology	Electrostatic
Maximum Flow Rate	20 lbs/hr (9.07 kg/hr)
Weight	1.5 lbs (0.68 kg)
