Nordson Encore Series User Manual

Repair
6-2
Part 1612500−02
E 2018 Nordson Corporation
4. See Figure 6-2. Remove the black nylon screw (44) from the gun body.
5. Grasp the handle (40) in one hand and the gun body (20) in the other.
Press the thumbs of each hand together while pulling in opposite
directions to separate the gun body from the handle.
6. Tilt the back of the gun body up and forward to slide it off the powder
outlet tube. The air wash tubing (20A) will prevent a complete
separation of the gun body and handle.
NOTE: The powder outlet tube (22) is Pyrex glass. Use care while
removing the gun body from the handle.
44
20A
22
20
40

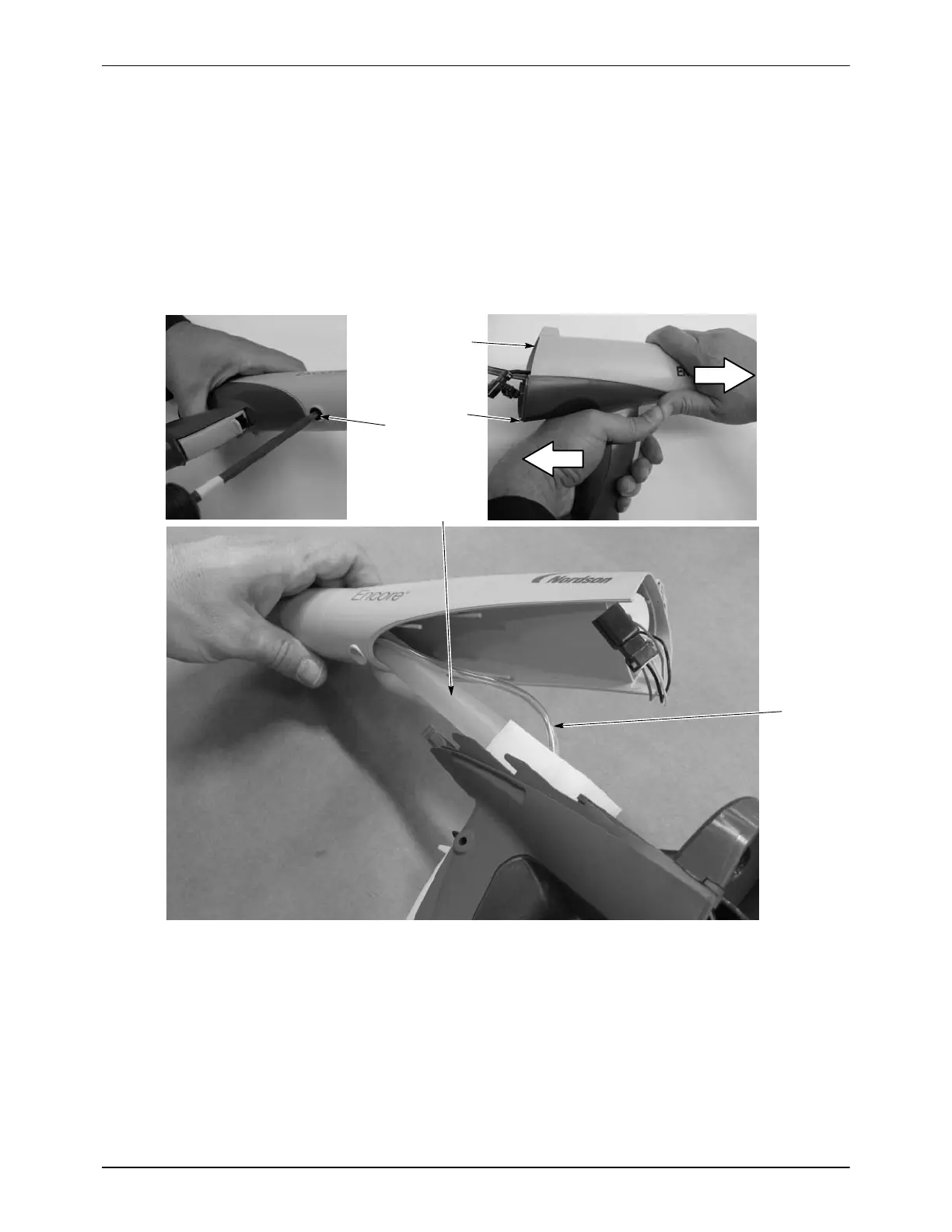

Figure 6-2 Removing the Gun Body from the Handle
20. Gun body
20A. Air wash tubing (filter assembly)
22. Powder outlet tube
40. Handle
44. Black nylon M5 screw

Nordson Encore Series Specifications

General

Maximum Output Voltage	100 kV
Power Source	Electric
Maximum Powder Output	20 lbs/hr (9.07 kg/hr)
Air Consumption	10-15 CFH (4.7-7.1 L/min)
Application	Powder coating
Technology	Electrostatic
Maximum Flow Rate	20 lbs/hr (9.07 kg/hr)
Weight	1.5 lbs (0.68 kg)
