Nordson Encore Series User Manual

System Setup
2-7
Part 1612500−02
E 2018 Nordson Corporation
1
2
4
6
11
8
9
3
10
7
5
Reverse Side of System

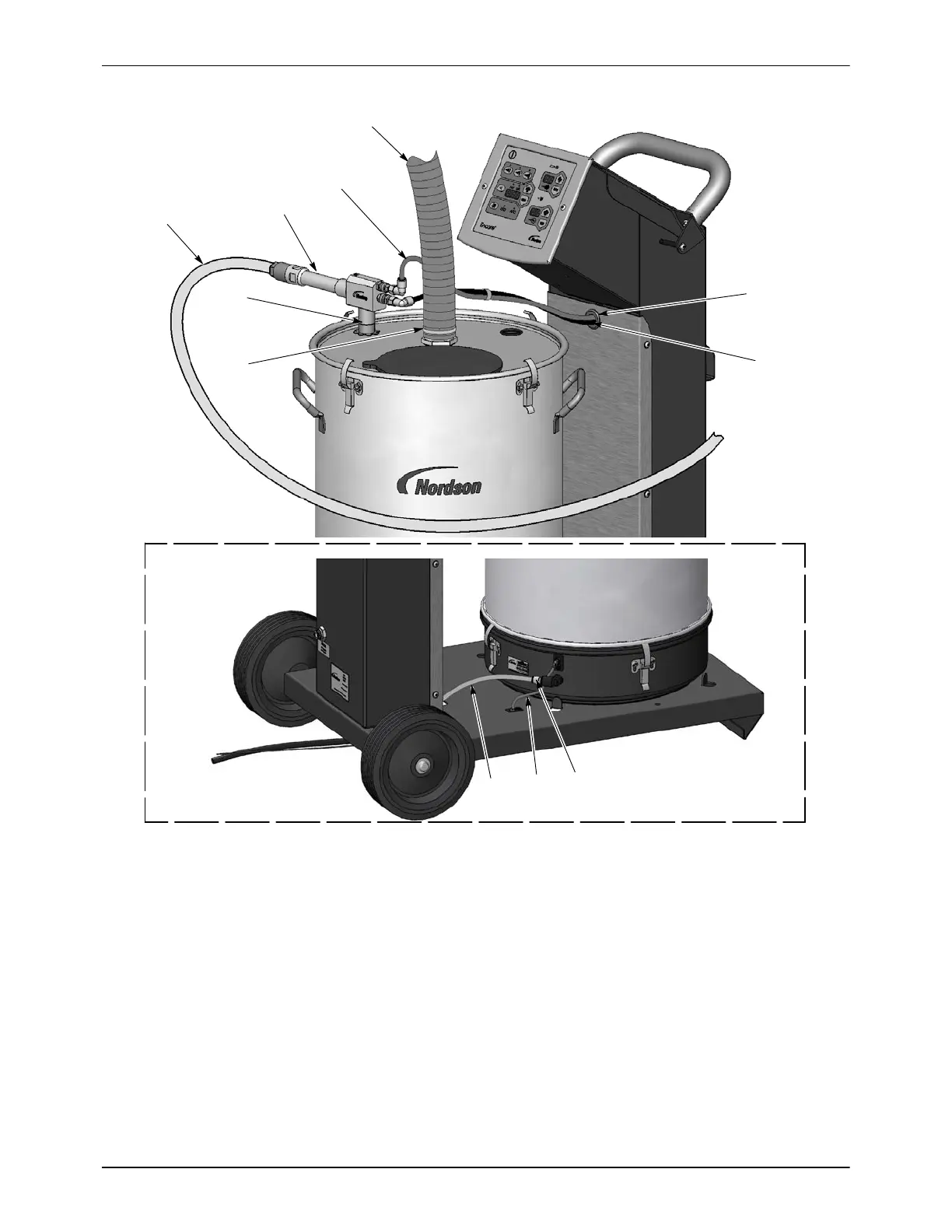

Figure 2-7 Encore PE Mobile System with Hopper − Hopper and Pump Installation
1. Vent hose
2. Powder hose
3. Vent hose clamp
4. Blue atomizing air tubing
5. Pump mount
6. Black flow air tubing
7. Pump
8. Blue fluidizing air tubing
9. Ground wire
10. 10 x 6 mm reducer fitting
11. Grommet

Nordson Encore Series Specifications

General

Maximum Output Voltage	100 kV
Power Source	Electric
Maximum Powder Output	20 lbs/hr (9.07 kg/hr)
Air Consumption	10-15 CFH (4.7-7.1 L/min)
Application	Powder coating
Technology	Electrostatic
Maximum Flow Rate	20 lbs/hr (9.07 kg/hr)
Weight	1.5 lbs (0.68 kg)
