Operation
4-11
Part 161250002
E 2018 Nordson Corporation
Cleaning Conical Nozzles and Deflectors(contd)
5. Inspect the electrode holder (6). If the electrode holder is worn or
damaged, unscrew it from the electrode support (8), then remove the
electrode (7). Install the electrode in the new holder, then screw the
holder into the electrode support. Install the electrode support assembly
(6, 7, and 8) into the spray gun.
6. Screw the nozzle nut onto the spray gun.
7. Install a new deflector on the electrode holder. Do not bend the end of
the electrode.
8. Screw the deflector cap onto the electrode holder until tight.
NOTE: Press the Enable/Disable button to wake up the controller and
resume operation.
1
6
2
3
4
5
7
8

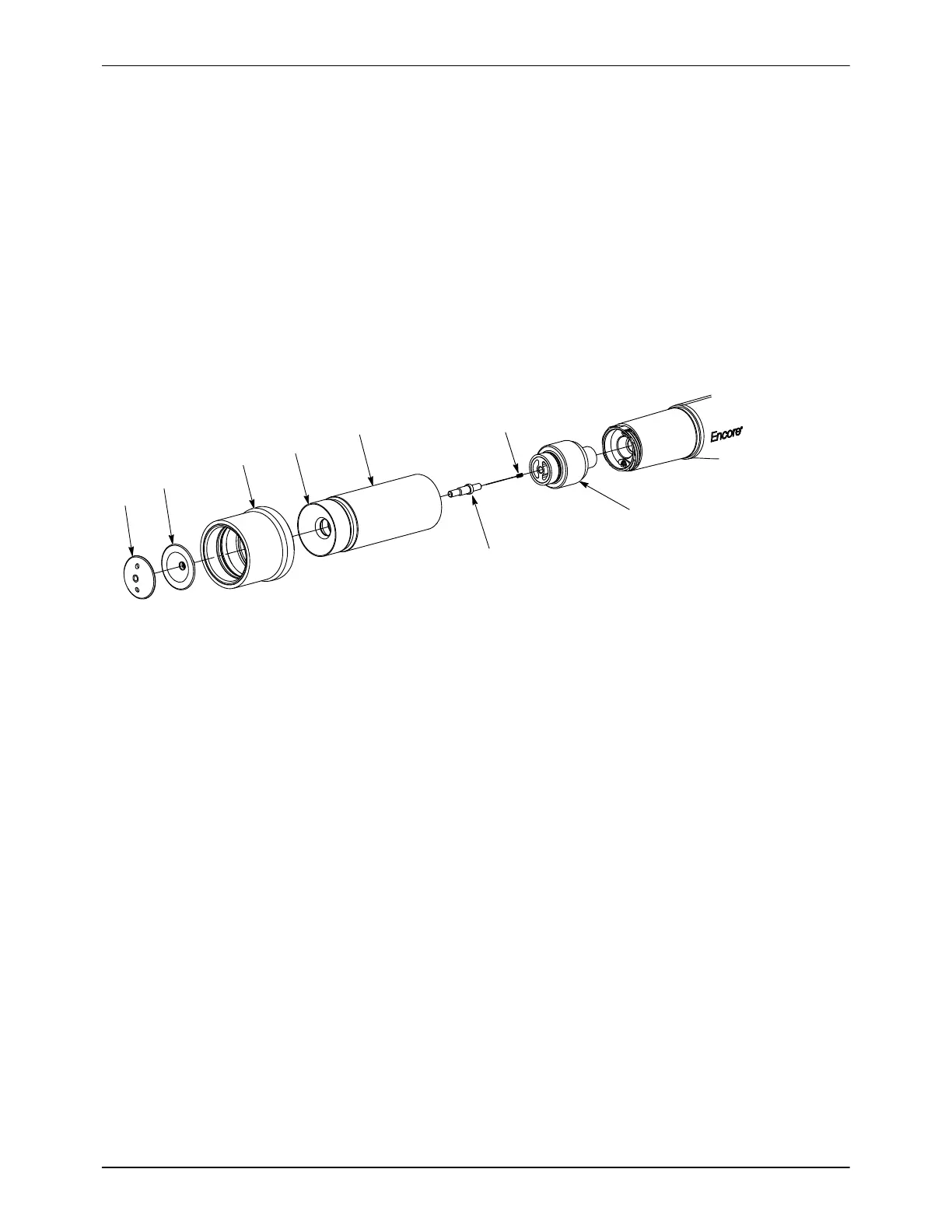

Figure 4-6 Cleaning a Conical Nozzle
1. Deflector cap
2. Deflector
3. Pattern adjuster
4. Conical nozzle
5. Nozzle nut
6. Electrode holder (See Note)
7. Electrode
8. Electrode support assembly
(XD shown)
Note: The electrode holder used on Conical Spray Nozzles are not interchangeable with Flat/Corner spray nozzles.
