Nordson Encore Series User Manual

Wiring Diagram
8-3
Part 1612500−02
E 2018 Nordson Corporation
J8
J3
ENCORE LT
CONTROL PCA
(BLACK)
(BLACK)
J7 (VBF)
2 1
1
23 J5
123
J6
321
54
45
123
(RED) FLOW
(BLACK) FLOW
(RED) ATOMIZING
(BLACK) ATOMIZING
(WHITE) ATOMIZING
(WHITE) FLOW
1
(RED) FLUIDIZING
(BLACK) FLUIDIZING
2
(RED) PURGE
3
(BLACK) PURGE
4
(RED) NOZZLE
5
(BLACK) NOZZLE
6
J4
FLUIDIZING
FLOW
PURGE
NOZZLE
ATOMIZING
L
POWER SUPPLY TO
CTRLR HARNESS
65432
60W DC
POWER
SUPPLY
1
SK2
GND
NO.3
1 (ORANGE)
6 (GREEN)
5 (YELLOW)
PURGE
GROUND
FEEDBACK
4 (WHITE) 3 (RED)
TRIGGER
OSC
2 (BLACK) DC COM
GUN
RECEPTACLE
(YELLOW)
(WHITE)
(RED)
(BLACK)
6
5341 2
J2 (GUN)
(ORANGE)
ENCORE LT/ KEYPAD PANEL
LINE FILTER
1107696
(BROWN)
(BLUE)
(BLACK) DC COM
(RED) +24VDC
(BLUE)
(BROWN)
15 FT (4.6M)
POWER CORD
(BLACK) (BLACK)
NO.2
GND
(BROWN) L (L1 - HOT) (LT BLUE) N (L2 - NEUTRAL)
SK1
N
(BLUE)
(BROWN)
(N/C)
(BROWN)
(LT BLUE)
(GREEN/YELLOW) (GREEN/YELLOW)
(GREEN/YELLOW)
GND
NO.1
ENCORE LT
CONTROLLER
MANIFOLD ASSY
(RELAY TO CTRLR)
A.C. POWER HARNESS
(GROUND JUMPER 2)
(GREEN W/YELLOW)
CONTROLLER
CABINET
NO.4
GND
(GROUND
JUMPER 3)
(GROUND JUMPER 1)
ENCORE LT
RELAY PCA
(POWER)
J10 J1
(RED) +24VDC
(BLACK) DC COM
A.C. POWER HARNESS
(FILTER TO RELAY)
A.C. POWER HARNESS
(FILTER TO P.S.)
A.C. POWER HARNESS
A.C. POWER HARNESS
J1
C2C1
RL1
F1
F2
M1 M2 M3
JP1
1
2
L2 F
L2
L1 F
L1

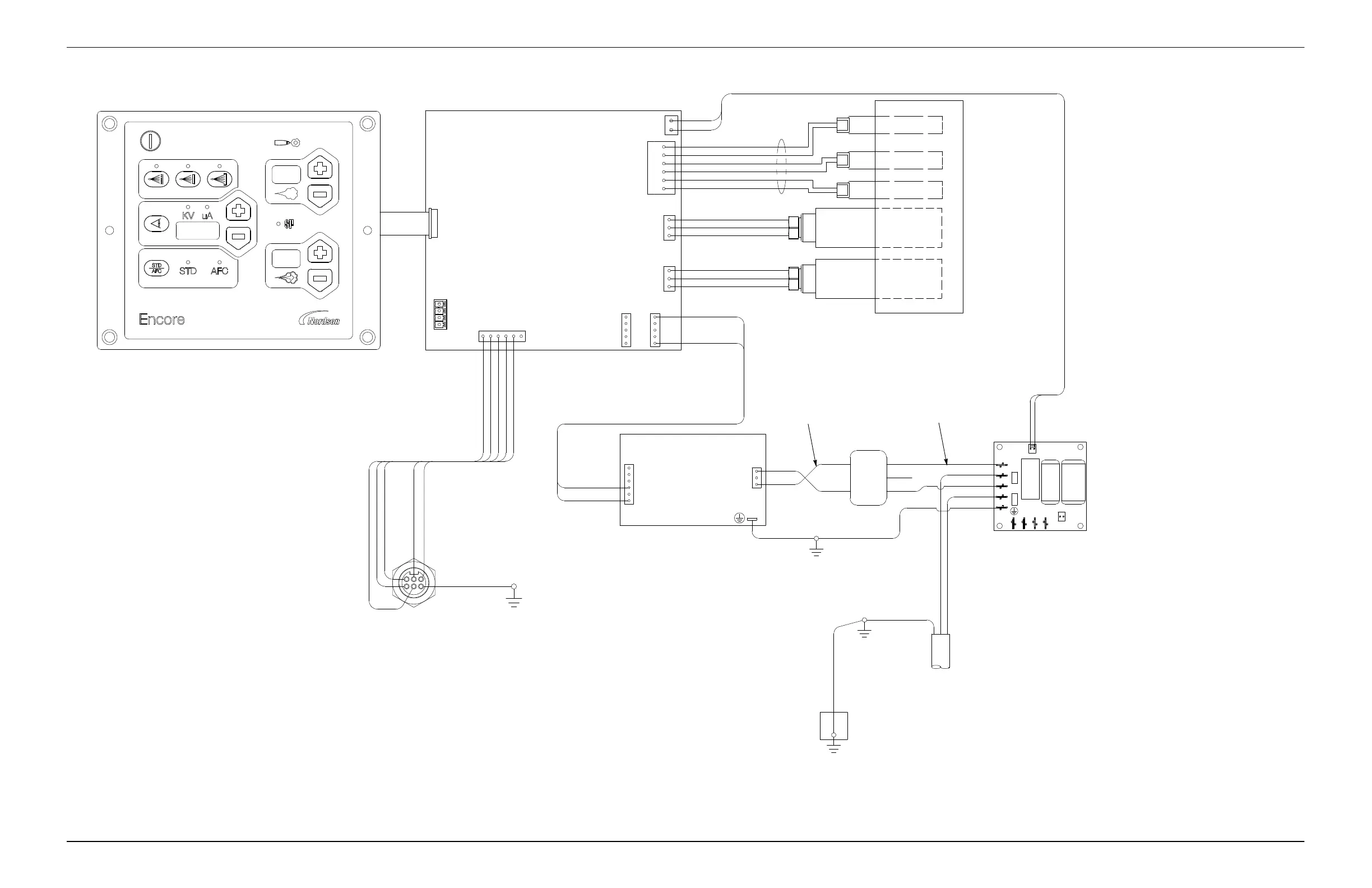

Figure 7-1 Encore LT Manual Controller Wiring Diagram
