3.2.2 Replacement of the follower optical sensor
With the
maintenance
functions ,to do
raise the follower
sensor of 5 cm to
release it from the
follower base
Proceed the same
way as first drop
sensor to remove
the optical sensor

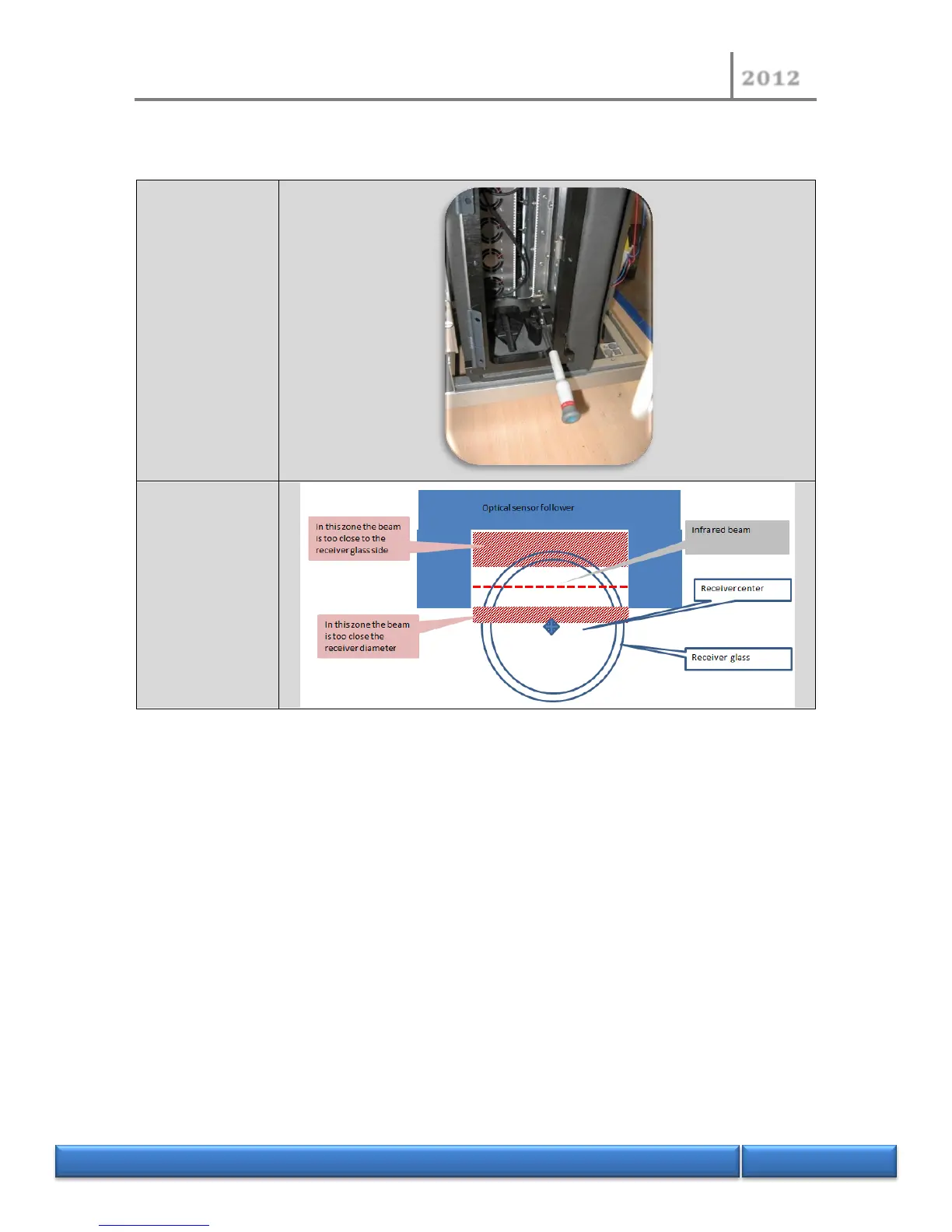

Loosen the
blocking screw and
adjust the optical
sensor position
with the adjusting
screw
