NORMALAB NDI 450 - Eplacement of the Compartment Probe

NORMALAB France
2012
N O R M A L A B F r a n c e
46/118

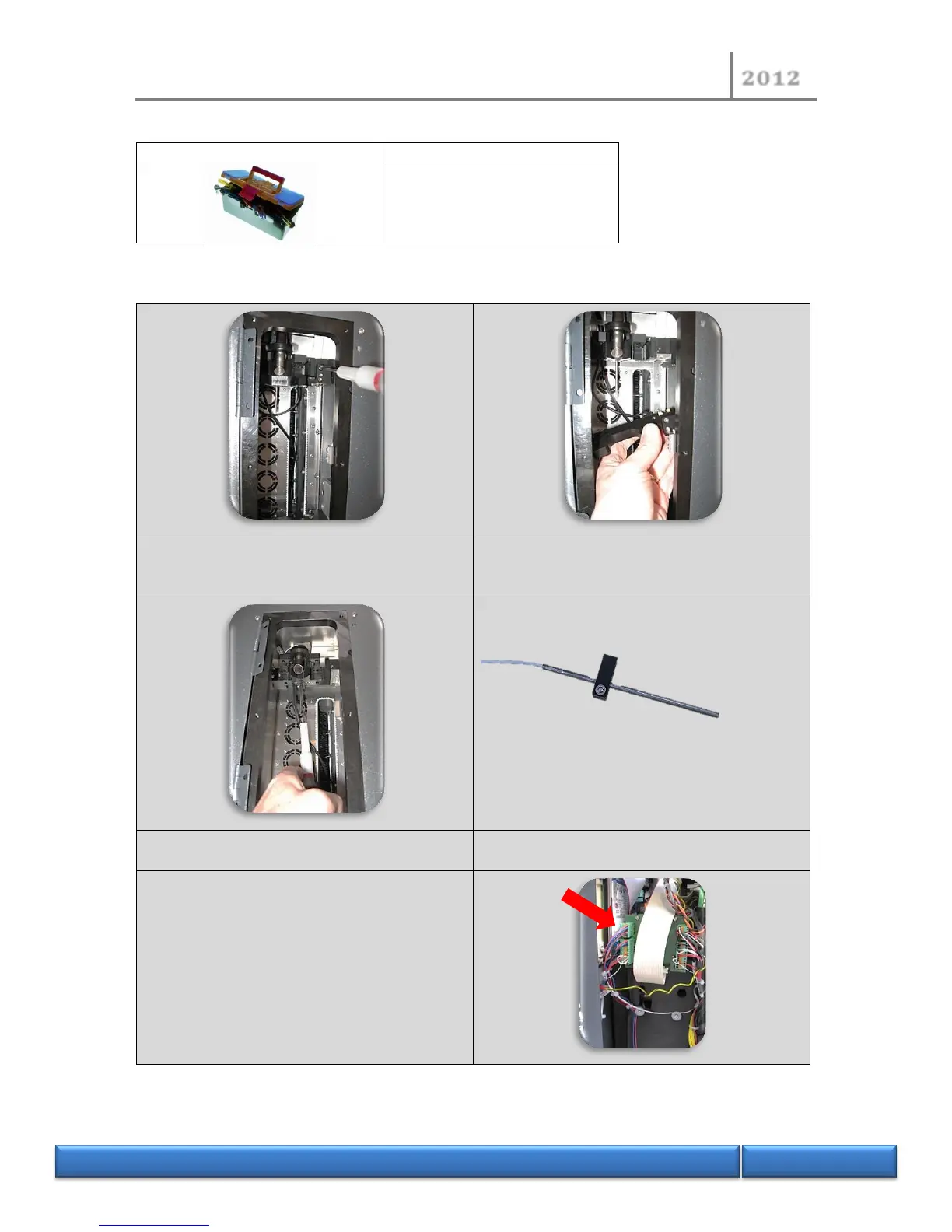

3.6.3 Replacement of the compartment probe
Tools
1 hex head key 2.5 mm
Remove the side and rear panels (see above procedure 3.1.1)
Remove the front panel (see above procedure 3.1.2)
Remove the first drop sensor ( without
modifying the adjustment) see procedure 3.2.1)
Unplug the sensor
Remove the flange of the probe
Recover the probe ring to place it in the new one
( at 50 mm from the probe tip)
The wires are on 13-14 and 15-16 of J1
connector
The check of calibration may be necessary
