3.4 Condenser

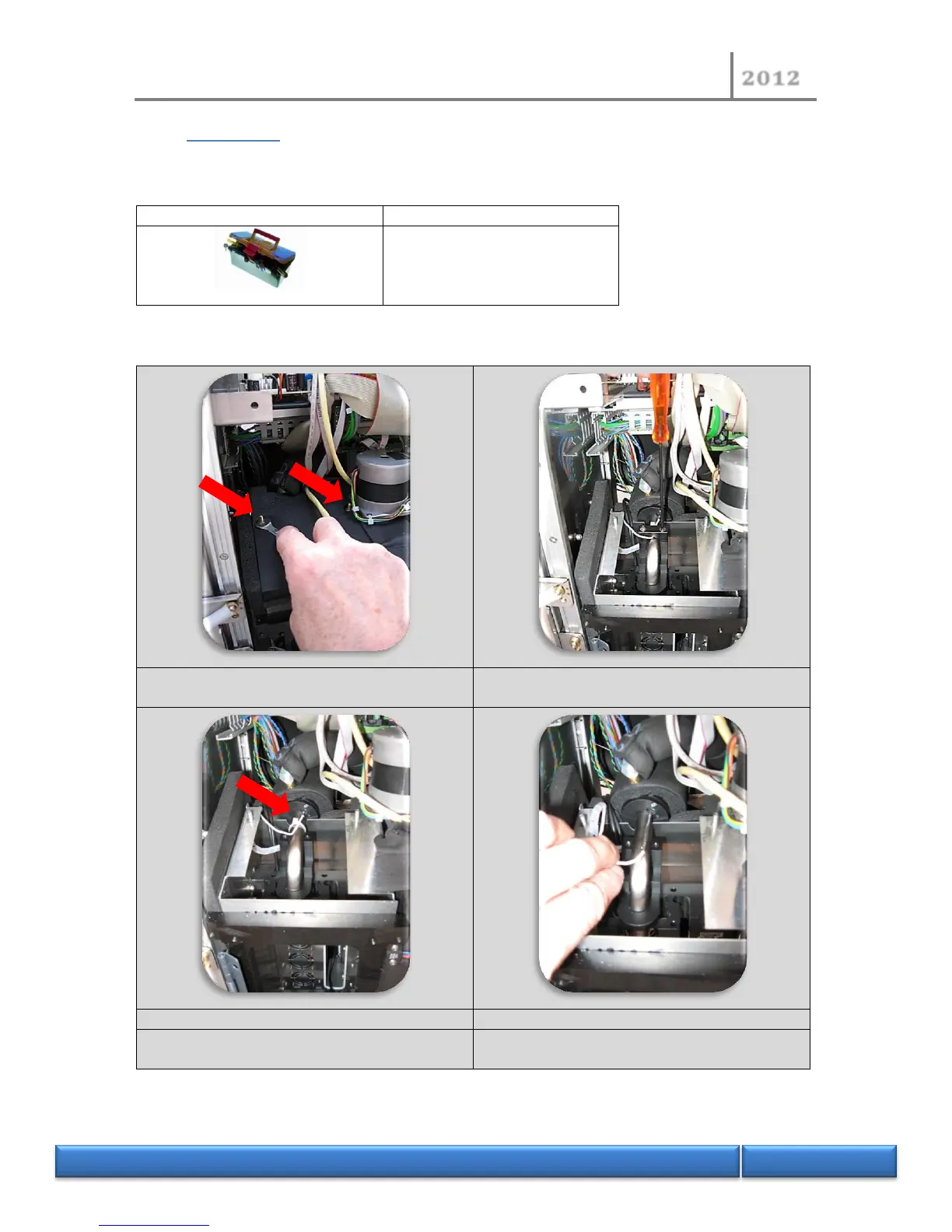

3.4.1 Replacement condenser probe
1 hex head key 3 mm
1 wrench 7 mm
Remove the front panel (see above procedure 3.1.2)
Remove the roof of the compartment (2 screws)
and extract it ( take care at the insulation )
Loosen the 2 screws of the flange and deposit it
Cut the fixing collar probe
Extract the probe of the housing
Unplug the probe wires from CL2 board.
Connector J3 on 14/15 and 16/17
Do not forget to replace the new fixing collar to
lock the probe in housing
A checking of the calibration may be necessary (by simulation of probe)
