3.6.4 Replacement of subset Peltier power supply
See above procedure 3.5.8
3.7 Chassis

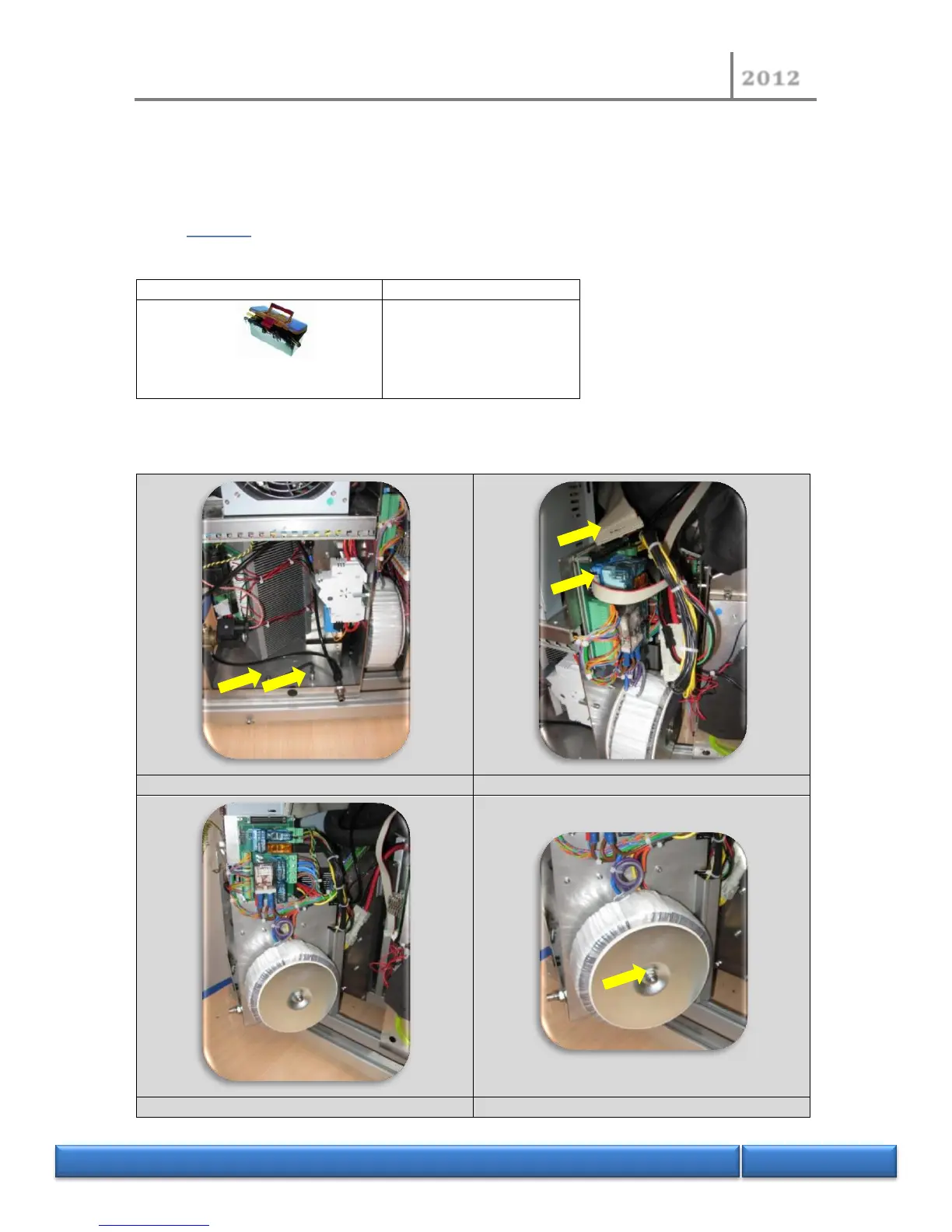

3.7.1 Replacement of the heating transformer
Tools
1 screwdriver 3.5 mm
1 hex head key 5.5 mm
1 hex head key 5 mm
1 wrench 12 mm
Remove the side and rear panels (see above procedure 3.1.1)
Remove the fixing screws of power supply frame
Remove the 2 ribbons of CL3 board
Release by rotation the supply frame
Unplug the transformer and remove it
