3.9 Front panel

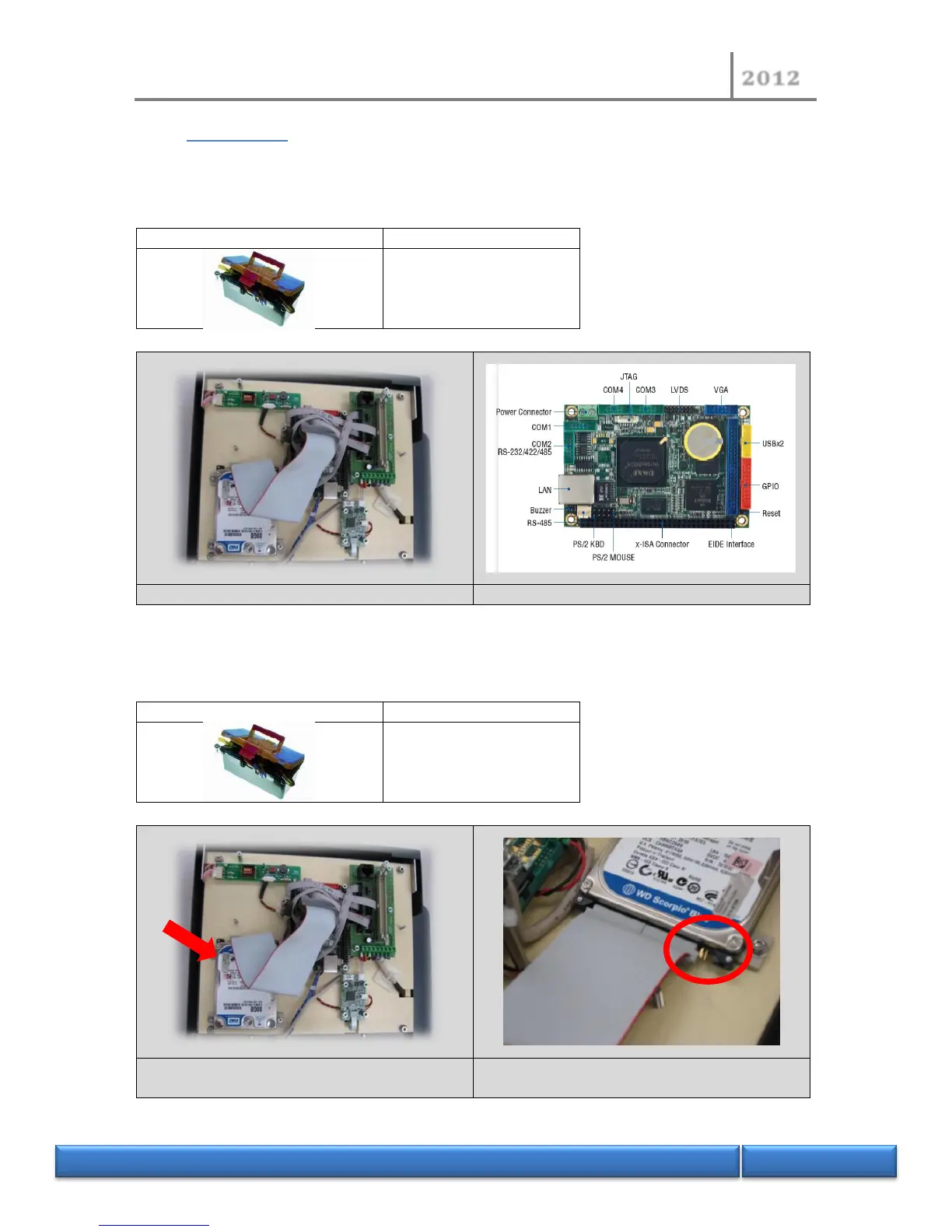

3.9.1 Replacement of MMI microprocessor board
Remove the side and rear panels (see above procedure 3.1.1)
Remove the front panel (see above procedure 3.1.2)
Tools
1 screwdriver 2.5 mm
1 tube key 5.5 mm
Remove the connections and remove the CPU
3.9.2 Replacement of the hard drive disk
Remove the side and rear panels (see above procedure 3.1.1)
Remove the front panel (see above procedure 3.1.2)
Tools
1 screwdriver 2.5 mm
1 tube key 5.5 mm
Remove the connections and remove the hard
drive disk
Take care at the red mark of the ribbon and the
pin out of hard drive disk connector
