NORMALAB NDI 450 - Replacement of Detector or Magnet of Compartment Door

NORMALAB France
2012
N O R M A L A B F r a n c e
25/118

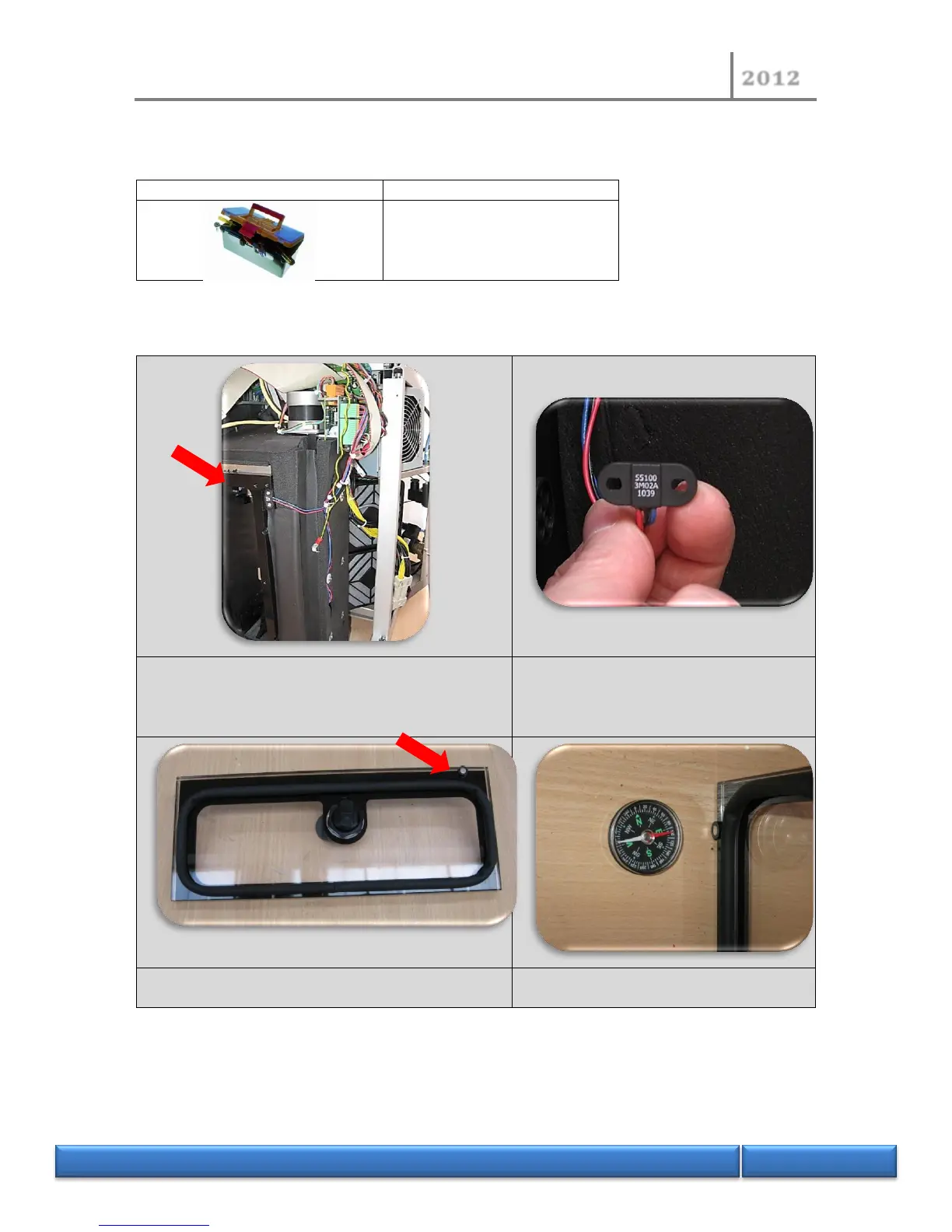

3.2.7 Replacement of detector or magnet of compartment door
Tools
1 hex head key 2 mm
Remove the front panel of the apparatus (see above procedure 3.1.2)
Remove the sensor
- Red wire on 7 of J1
- Blue wire on 8 of J1
- Black wire on 9 of J1
Identify the position of the sensor
The magnet which activates the sensor
The magnet must present a south pole ( it
attracts the North of the compass needle)
