NORMALAB NDI 450 - Replacement of the Peltier Subset of Receiver Compartment

NORMALAB France
2012
N O R M A L A B F r a n c e
43/118
3.6.2 Replacement of the Peltier subset of receiver compartment
Tools
1 screwdriver 2.5 mm
1 iron solder
1 cutting plier
1 wrench 7 mm
1 wrench 10 mm

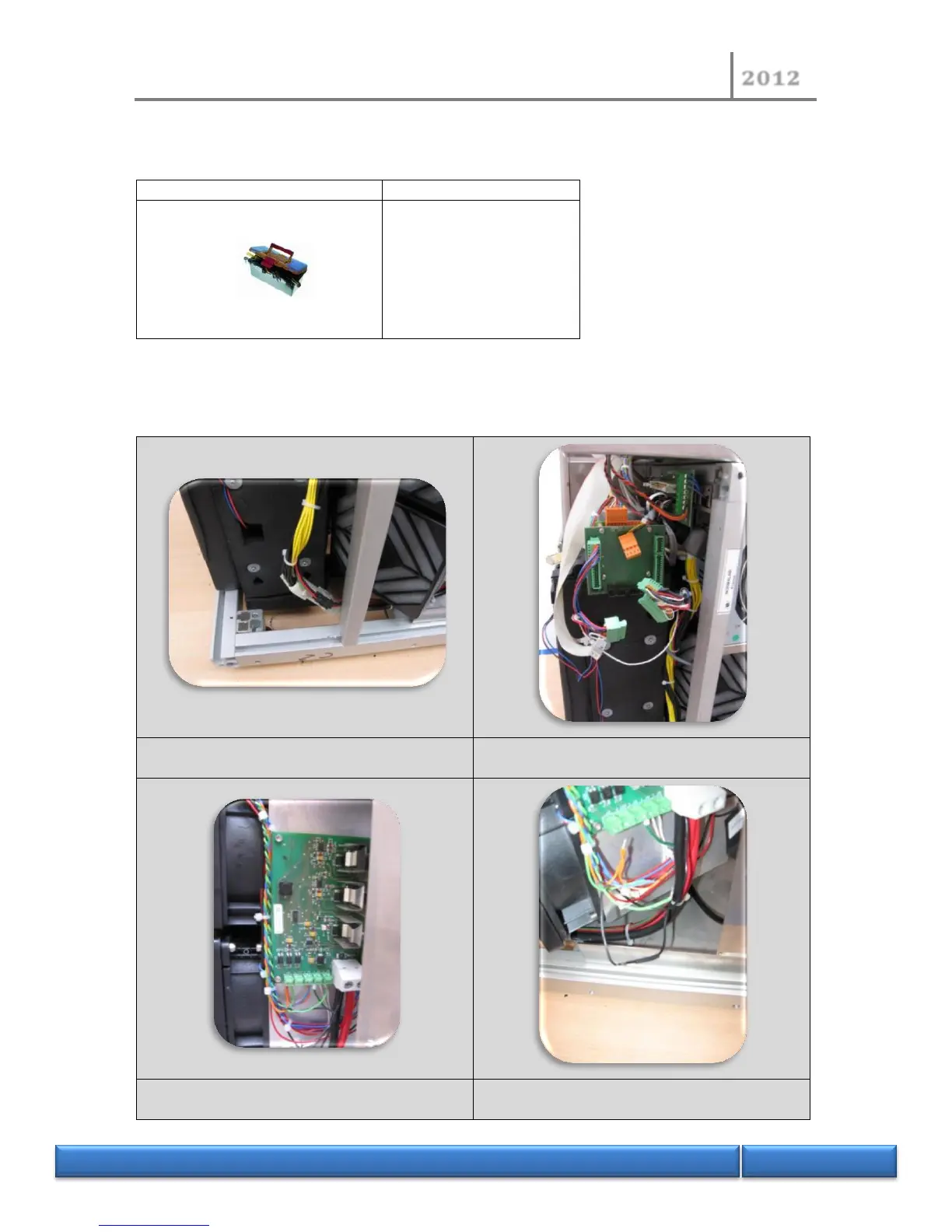

Remove the side and rear panels (see above procedure 3.1.1)
Remove the front panel (see above procedure 3.1.2)
Unplug the power supply wires
Remove the connectors from CL2 board and
motor board
Unplug the pilot wire and de-soldering the black
wire
