NORMALAB NDI 450 - Replacement of the Limit Switches of Follower

NORMALAB France
2012
N O R M A L A B F r a n c e
18/118

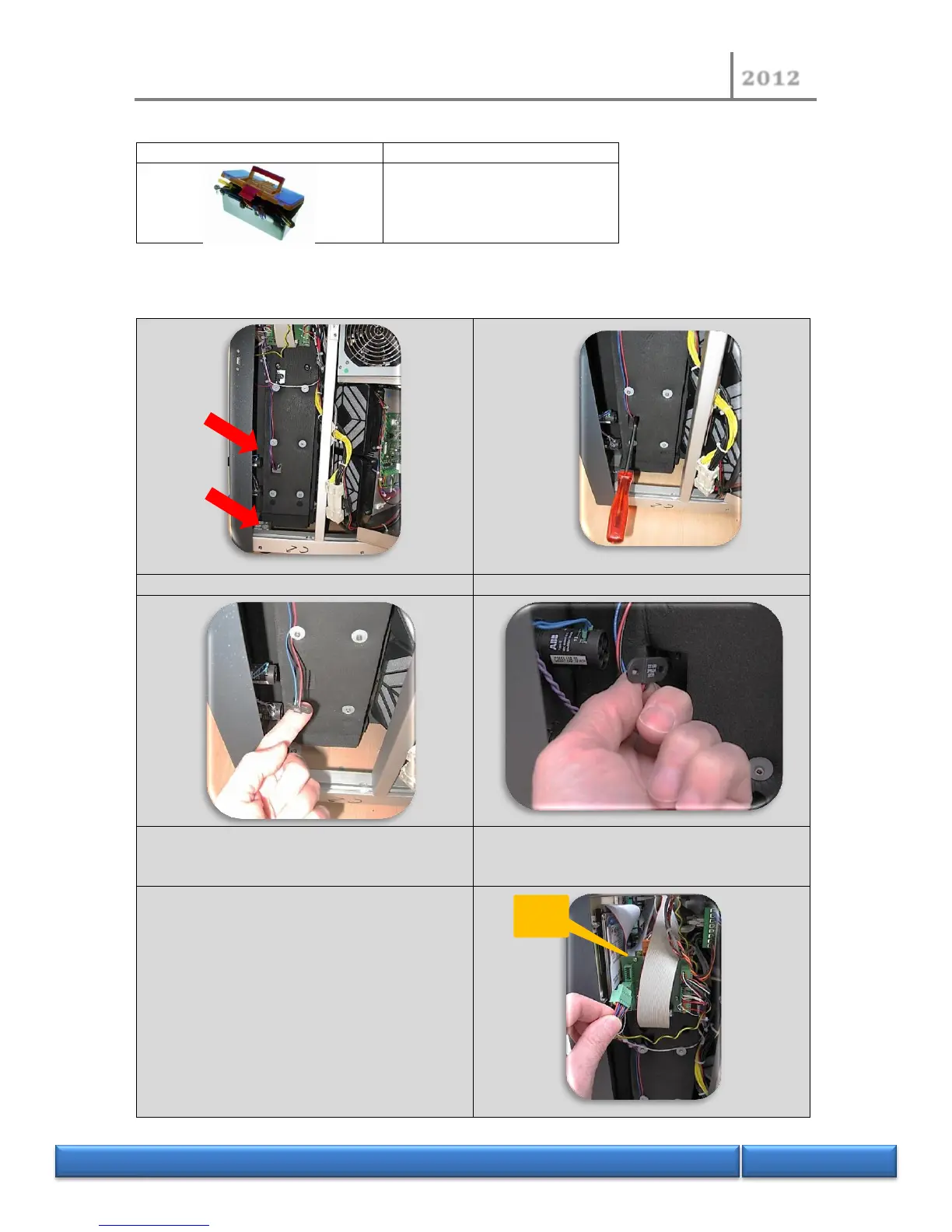

3.2.3 Replacement of the limit switches of follower
Tools
1 hex head key 4 mm
1 tubular key 5.5 mm
1 flat blade screwdriver 3.5m
Remove the right panel (see the above procedure 3.1.1)
Position of the low and high sensors
Loosen the maintaining nut of sensor
Release the wires
Extract the sensor ( identify the sense of the
position to replace the new one in the same
sense)
Disconnect the wires from connector of
CL2 board
Low sensor :
- Red 1
- Blue 2
- Black 3
High sensor
- Red 4
- Blue 5
- Black 6
