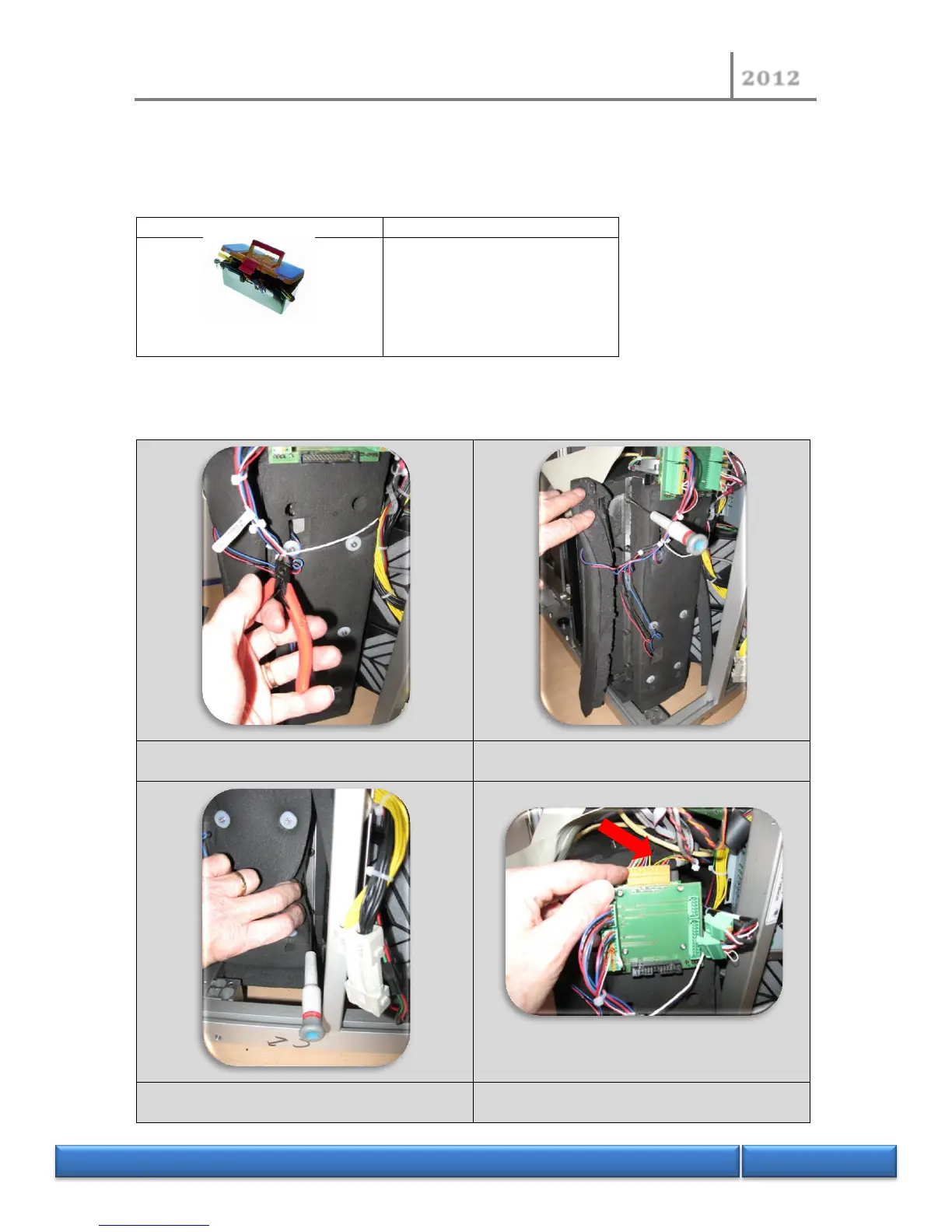

3.2.5 Replacement of step by step motor

Tools

1 hex head key 2.5 mm

1 hex head key 2 mm

1 hex head key 1.5 mm

1 hex head key 4 mm

Remove the follower optical sensor (see above procedure 3.2.2)

Release the wires

Remove the 5 side screws on the left under the

insulation

Remove the 4 side screws on the right under the

insulation

Unplug the pilot wires of motor on the motor

board and the sensors on the CL2 board
