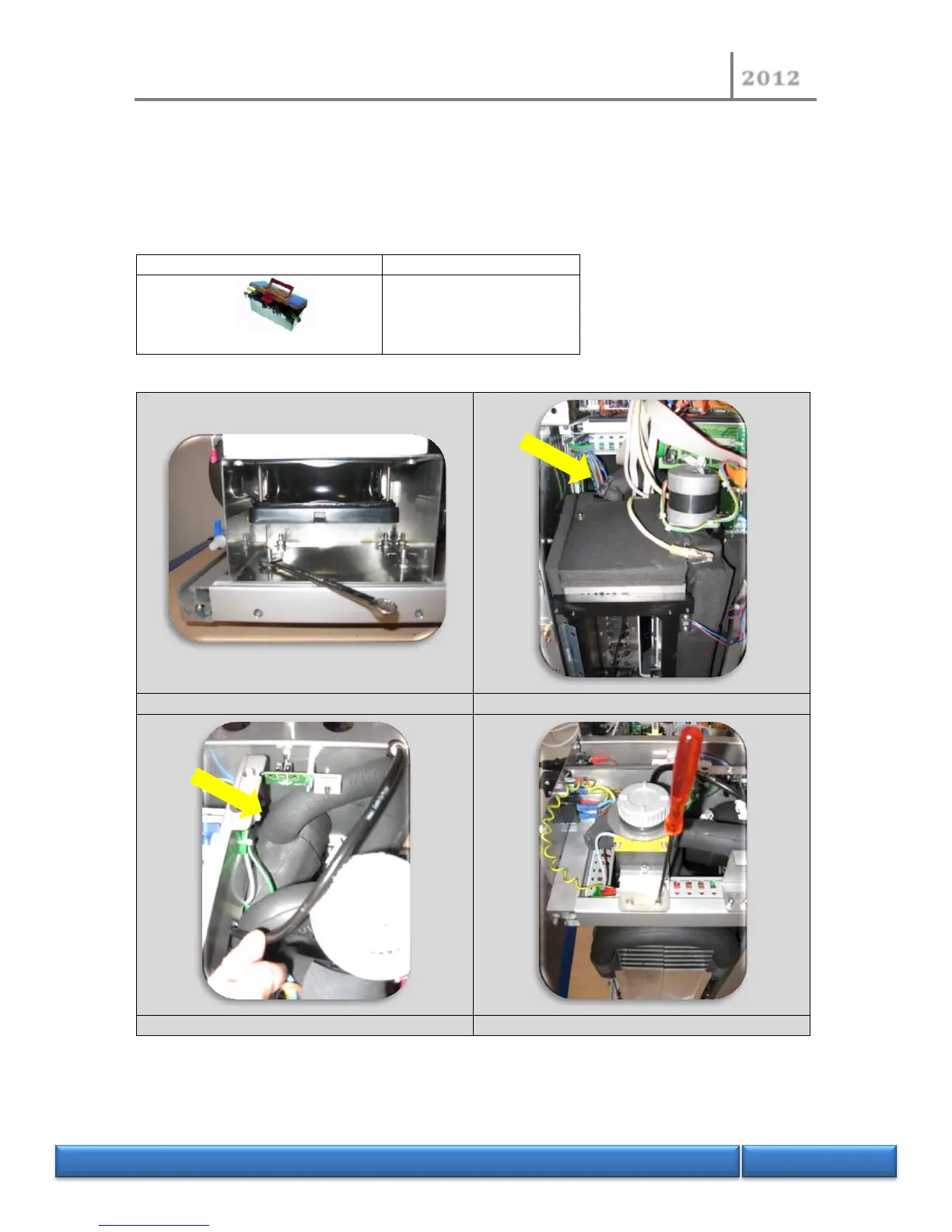

3.5.6 Replacement of Peltier subset

Remove the front panel (see above procedure 3.1.2)

Drain the liquid circuit (see above procedure 3.5.1)

Tools

1 wrench 10 mm

1 hex head key 3 mm

1 hex head key 2.5 mm

Remove the 4 fixing nuts

Unplug the low fitting of condenser

Unplug the high fitting of condenser

Remove the expansion tank
