NORMALAB NDI 450 - Page 44

NORMALAB France
2012
N O R M A L A B F r a n c e
44/118

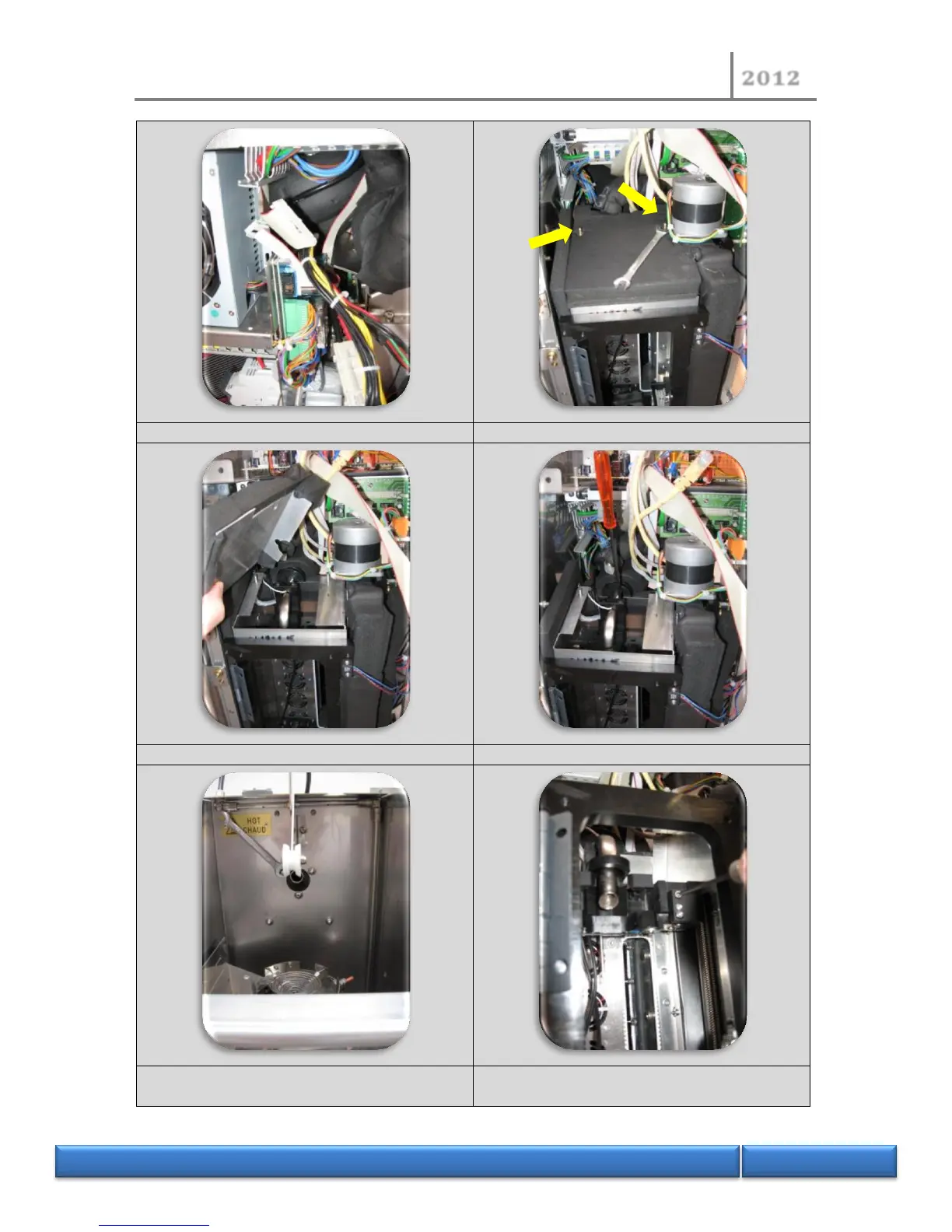

Unplug the 2 ribbons of CL3 board
Remove the roof of the compartment
Extract the roof
Remove the flange of condenser
Remove the condenser fixing in the heating
block part of condenser ( 3 screws)
Remove the first drop optical sensor
