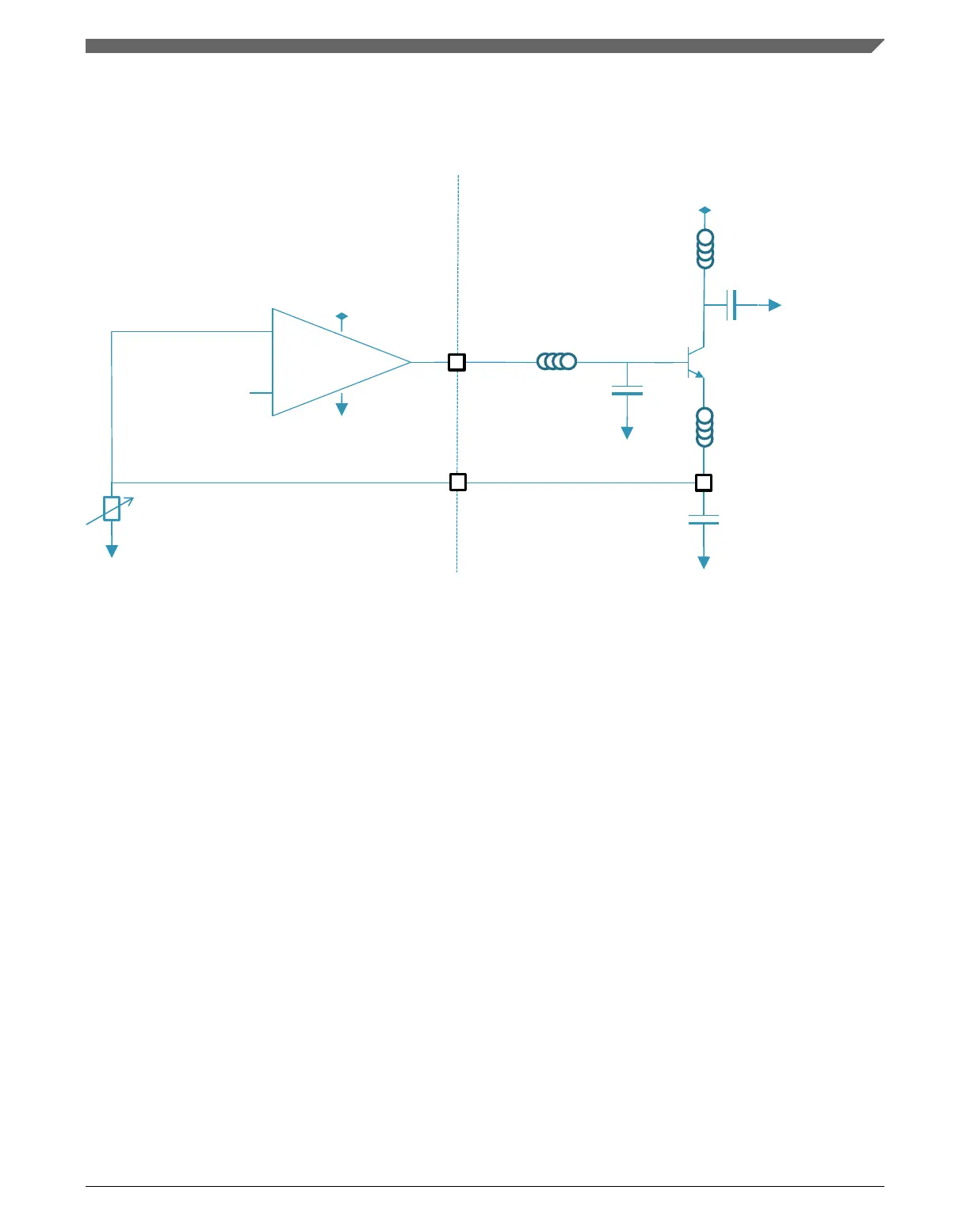

16.1.4 Regulator example for the 2SCR574d transistor
+
--
3.3V or Vcollector
VDDIO
Vdd_core
Vrctl
Vref
Lb= 50n, 100n
Cb= 0.6u, 1.4u
ESR= 15m, 150m
Cl= 4u, 14u
ESR= 15m, 150m
Le= 50n, 100n
Lc = 50n, 100n
Cc= 4u, 14u
ESR= 15m, 150m
Beta= 120, 360
ILoad
Figure 19. Regulator example
16.1.5
Device voltage monitoring
The LVD/HVDs for the device and their levels are given in the following table. Voltage
monitoring threshold definition is provided in the following figure.
Power management PMC POR LVD sequencing
