Oase FiltoClear 20000 User Manual

21
- GB -
Pos: 202 /Alle Produk te/Überschrif ten/H2 Symbole auf dem Gerät @ 21\m od_1292588857121_12 1.doc @ 127058 @ @ 1
Symbols on the unit
Pos: 203 /Alle Produk te/Symbole/W arnsymbole auf dem Gerät @ 21\mod_ 1292602924329_121.doc @ 128263 @ @ 1
D

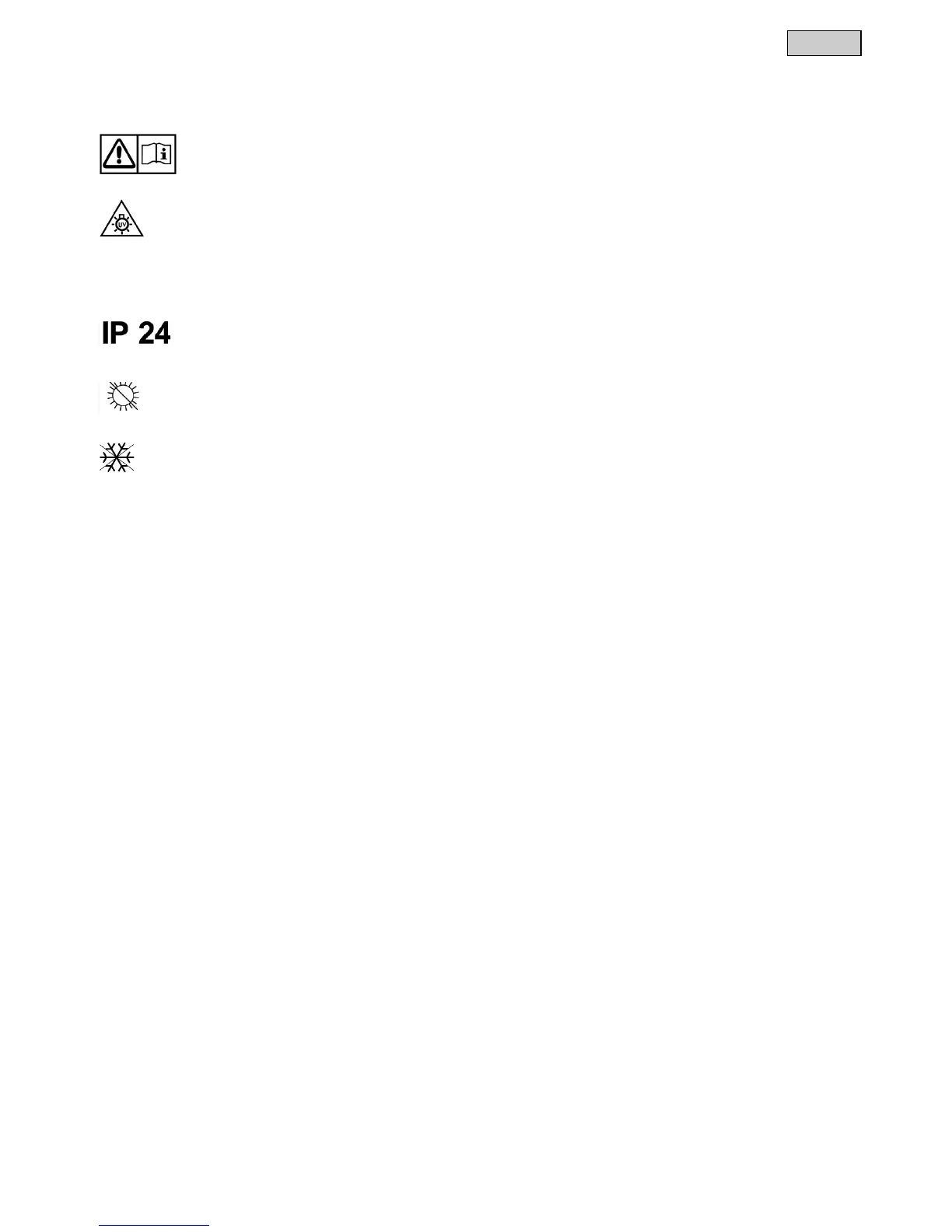

The warning symbols on the unit have the following meaning:
Risk of personal injury if used incorrectly
Incorrect use of the unit can cause injury or damage to assets. Always read the instructions for use first.
Risk of personal injury caused by a general source of danger
Dangerous UVC radiation. Health hazard for eyes and skin caused by light flash. Only operate the UV-C
lamp inside the housing.
Pos: 204 /Alle Produk te/Symbole/Gebr auchssymbole auf dem Ger ät @ 21\mod_1292602602499_12 1.doc @ 128230 @ @ 1
Symbols
The symbols on the unit relating to its use have the following meaning:
Protected against touching dangerous components. Splash water protected.
Protect from direct sun radiation.
Dismantle at temperatures of 0 °C and below.
Pos: 205 /Alle Produk te/Dummy_module/Abs tand 6 pt @ 7\mod_11966279 97106_0.doc @ 41651 @ @ 1
Pos: 206 /Alle Produk te/Überschrif ten/H1 Aufstellung @ 21\mo d_1292589436499_12 1.doc @ 127085 @ @ 1
Installation
Pos: 207 /Alle Produk te/Bildbezeic hnungen/Bild (A) @ 21\ mod_1292580791831_121. doc @ 126311 @ @ 1
Figure (A)
Pos: 208 /Filter /FiltoClear 20000/300 00/Aufstellung p lanen für FiltoClear 2000 0/30000 @ 21\mod_129258 9741392_121.doc @ 127112 @ @ 1
To be taken into consideration for planning:
− Spacing between unit and water: min. 2 m (safety spacing!).
− Do not expose the unit to direct sun radiation.
− Water return point. OASE recommend: Route the return hose such that the clean water is indirectly returned to the
pond, e.g. through a water course. In this manner it will be additionally enriched with oxygen.
− Height difference between filter lid and water return point: max. 2 m.
Pos: 209 /Filter /FiltoClear 20000/300 00/FiltoClear 200 00/30000 eingraben, ebener dig aufstellen, an T.pumpe anschließen @ 21\ mod_1292590261476_12 1.doc @ 127139 @ @ 1
Installation possibility 1: Bury close to the pond.
Dig a hole close to the pond and place the container into the hole up to the mark (B 11).
Installation possibility 2: Placement close to the pond.
Place the unit close to the pond where it is flood protected (e.g. hidden behind shrubs). The ground must be firm and
level.
Connecting a filter pump
A filter pump is required to operate the pressure filter (only contained as a set in the scope of delivery). Only connect to
the pump by means of pressure hoses approved for at least 0.2 bar or the maximum pump pressure.
Hoses with an internal diameter of 1 1/2" or 2" can be connected to the unit.
Pos: 210 /Alle Produk te/Dummy_module/= ==== Seitenwechsel = ==== @ 0\mod_1125648978015_ 0.doc @ 1631 @ @ 1

Oase FiltoClear 20000 Specifications

General

UV Clarifier	55 W
Dirt Outlet	Yes
Power Consumption UVC	55 W
Suitable for Ponds up to	20, 000 liters
Filter Type	Pressurized
Inlet/Outlet Size	1 1/2 inch
Weight	24 kg
