OERTLI OS 4 - Pedal Component Maintenance; Pedal housing disassembly and reassembly

2021-03-23 / Rev. 10 VV016042 108
13 Installing and uninstalling of pedal components
13.1 Pedal housing
13.1.1 Pedal housing up to serial no. 80670098

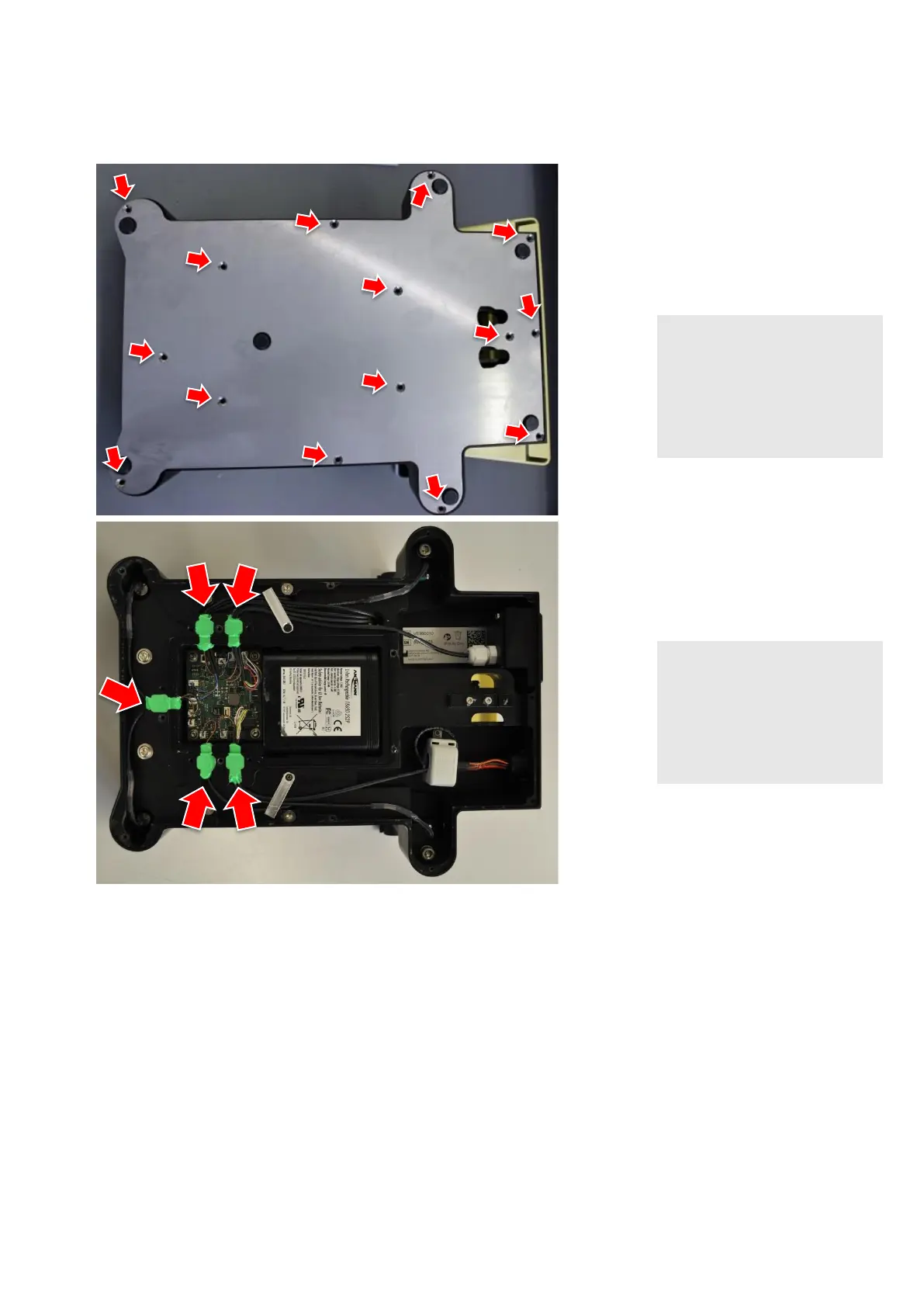

STEP 1:
1.
2.
3.
Remove all screws from the base
plate.
Lift the base plate up.
If necessary, remove the gasket
from electronic compartment.
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
STEP 2:
4.
5.
If necessary, pull the wires out of
the slot.
If necessary, release cable routing.
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
