OERTLI OS 4 - DIA Connector; Fluidics Unit

2021-03-23 / Rev. 10 VV016042 78

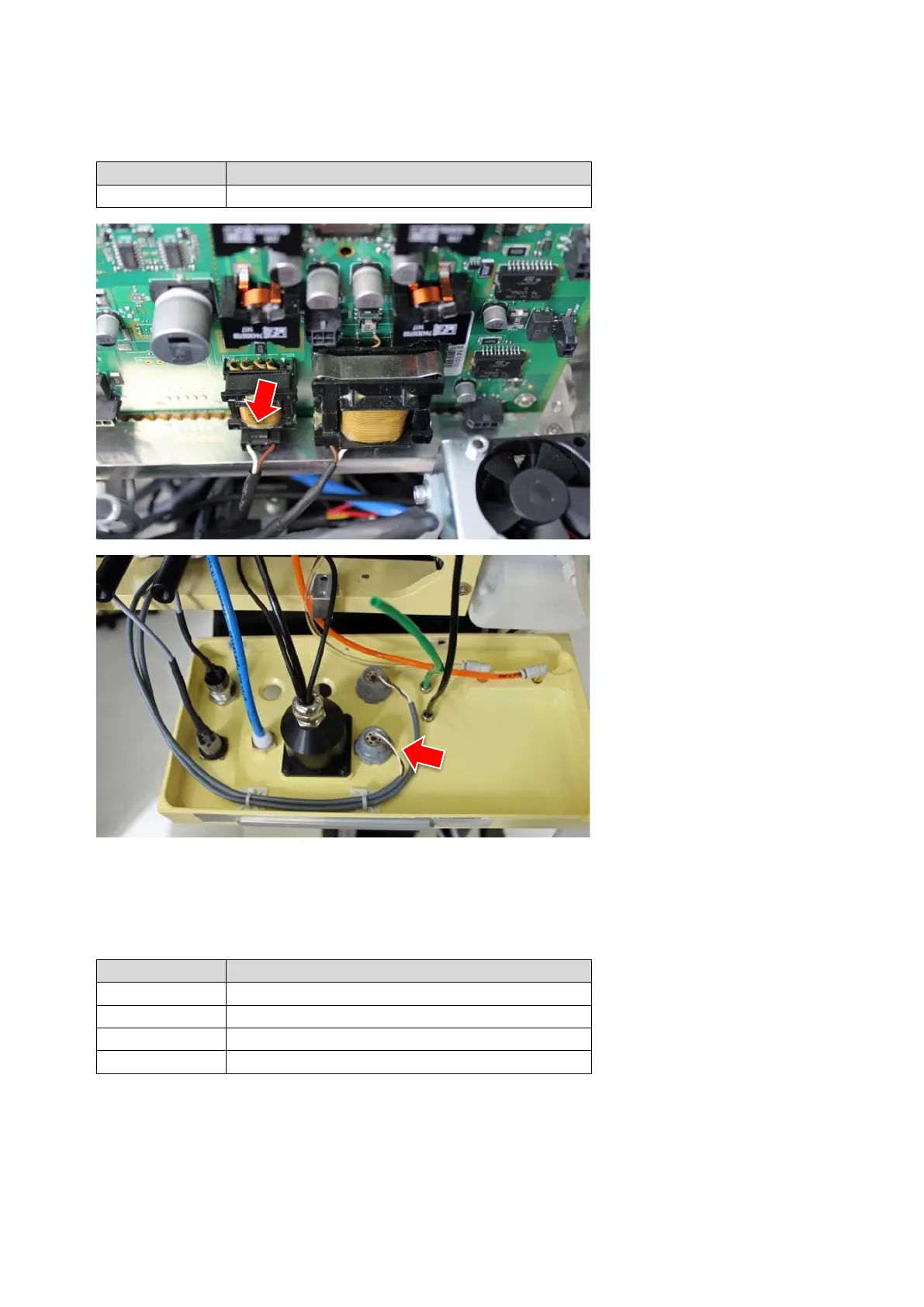

11.1.18 DIA connector
VX400235
Quantity
Description
1
DIA connector with cable
STEP 1:
1.
2.
Dismantle the front enclosure ac-
cording to  11.1.6.
Disconnect the cable from the
power/PCB.
The cable is attached to other ca-
bles. Do not damage these while
cutting the cable ties.
STEP 2:
3.
Unscrew the nut at the phaco
socket and remove the cable.
11.1.19 Fluidics unit
VX210130
Quantity
Description
1
Fluidics unit
2
M5x20 cheese head screw TORX
1
M5x10 countersunk screw, TORX
1
M3x12 countersunk screw, TORX black
