OERTLI OS 4 - Sensor and switch replacement

2021-03-23 / Rev. 10 VV016042 116
13.6 Sensors
13.6.1 Horizontal pedal sensor
VX310078 Pedal sensor horizontal
Quantity
Description
1
Pedal sensor horizontal
2
M3x12 oval head screw, TORX, ecosyn-fix
2
Cable tie
After the exchange of a pedal sensor, the pedal has to be sealed. For this purpose, additionally order
VX102479 sealing set (see chapter 13.2)!

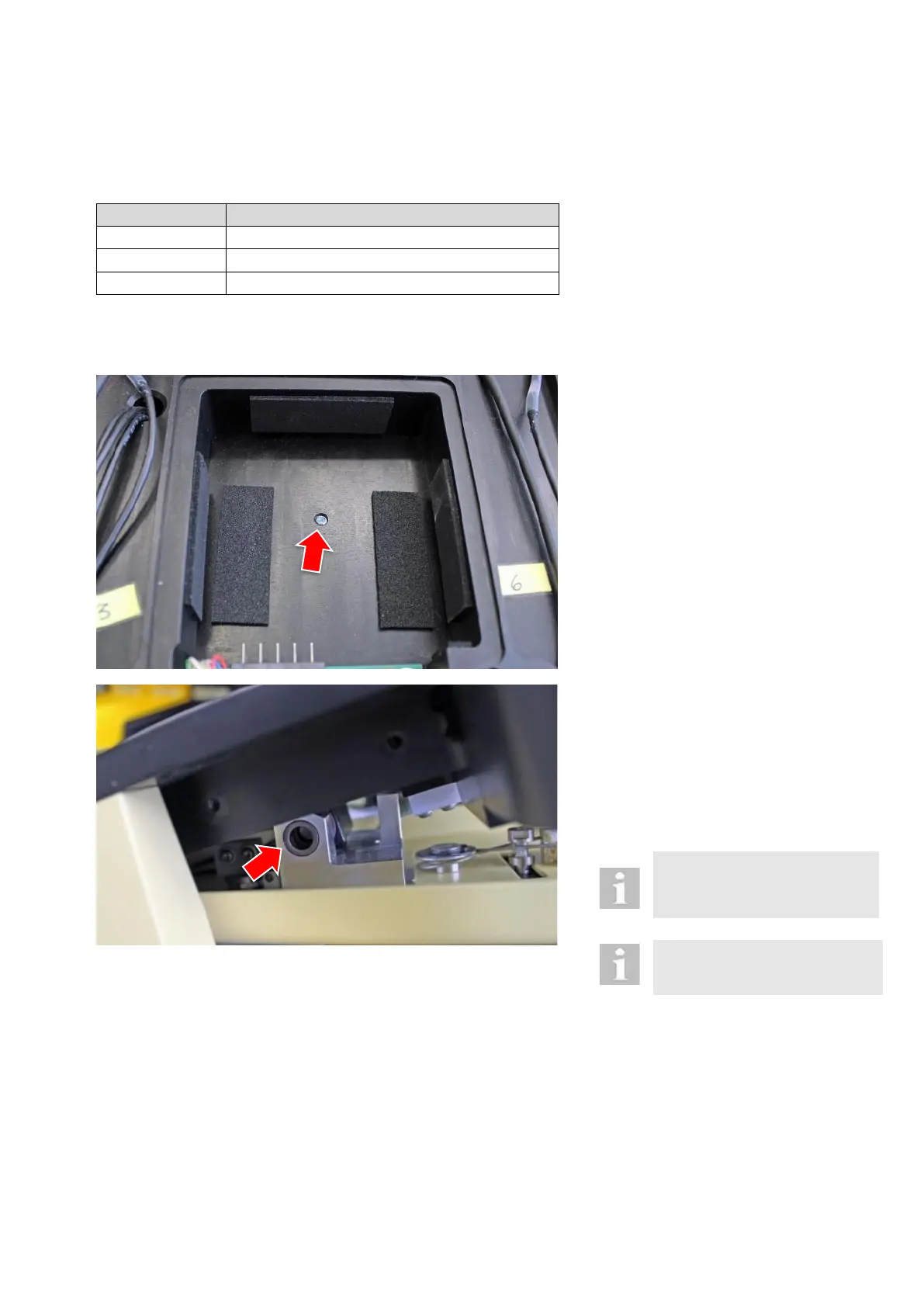

STEP 1:
1.
2.
3.
4.
Open pedal housing according to the
procedure described in 13.1.
Remove battery pack according to
13.3.
Disconnect cable from PCB.
Undo the grub screw.
STEP 2:
5.
6.
7.
Push out the wave vertical deflection
component from the base body.
Release spring.
Place rocker in such a way that ac-
cess is given to both sensors.
Do not lose the washers when
pushing out the wave vertical de-
flection and reassemble them
after repair.
Lubricate the wave vertical deflec-
tion before reassembling the pe-
dal.
