OERTLI OS 4 - Fluidic Sensor PCB; Pedal PCB

2021-03-23 / Rev. 10 VV016042 54

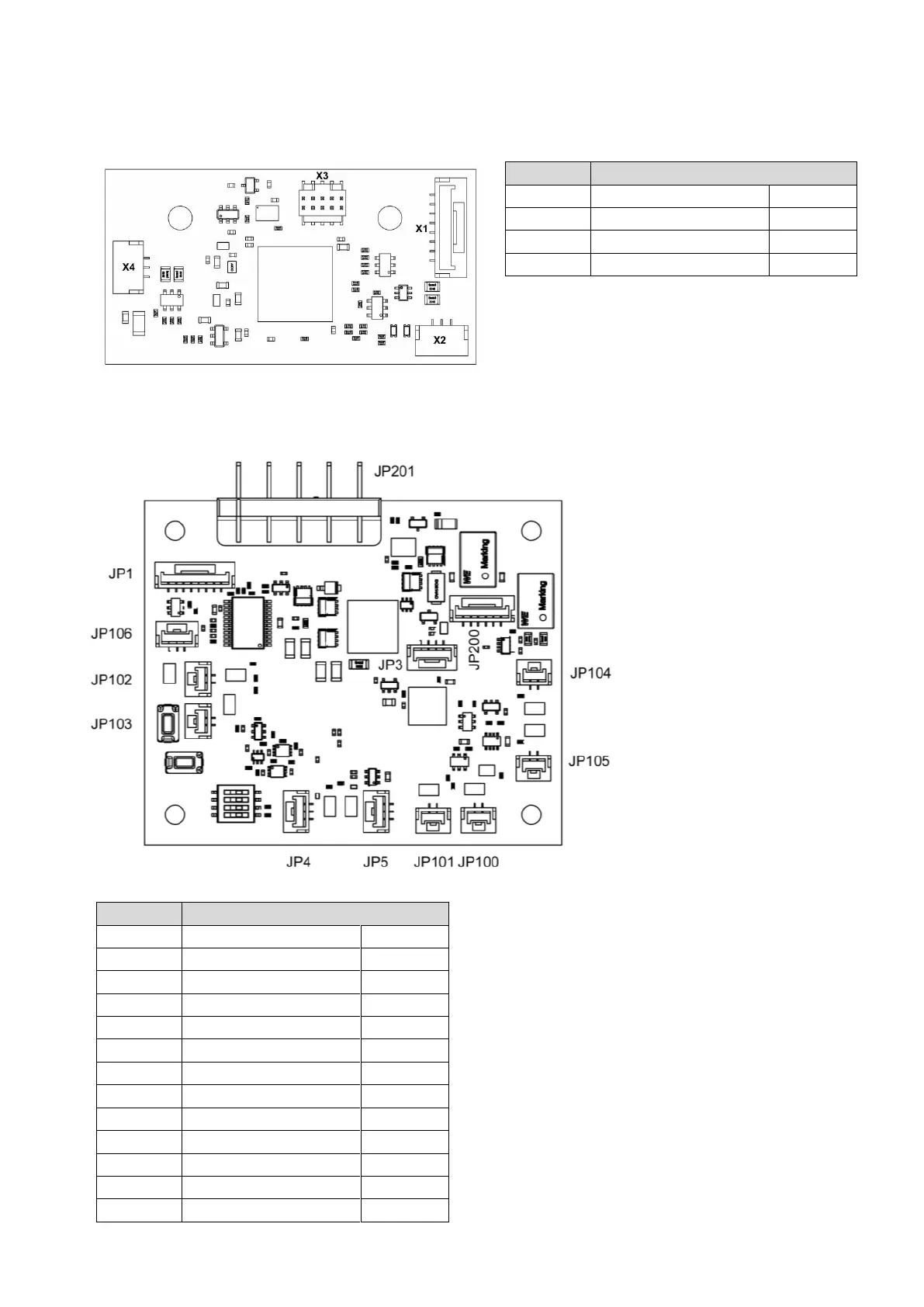

10.14 Fluidic sensor PCB
(Part of VX210130)
From
To
X1
Fluidic PCB
JP010
X2
Level Sensor 1
-
X3
-
-
X4
Level sensor 2
-
10.15 Pedal PCB
(VX541135)
From
To
JP001
Wireless module
-
JP003
-
-
JP004
Horizontal sensor
-
JP005
Vertical sensor
-
JP100
Heel switch left
-
JP101
Heel switch right
-
JP102
Side switch right
-
JP103
Top switch right
-
JP104
Top switch left
-
JP105
Side switch left
-
JP106
Laser switch
-
JP200
CAN / supply
-
JP201
Battery
-
