OERTLI OS 4 - Fluidic PCB

2021-03-23 / Rev. 10 VV016042 50

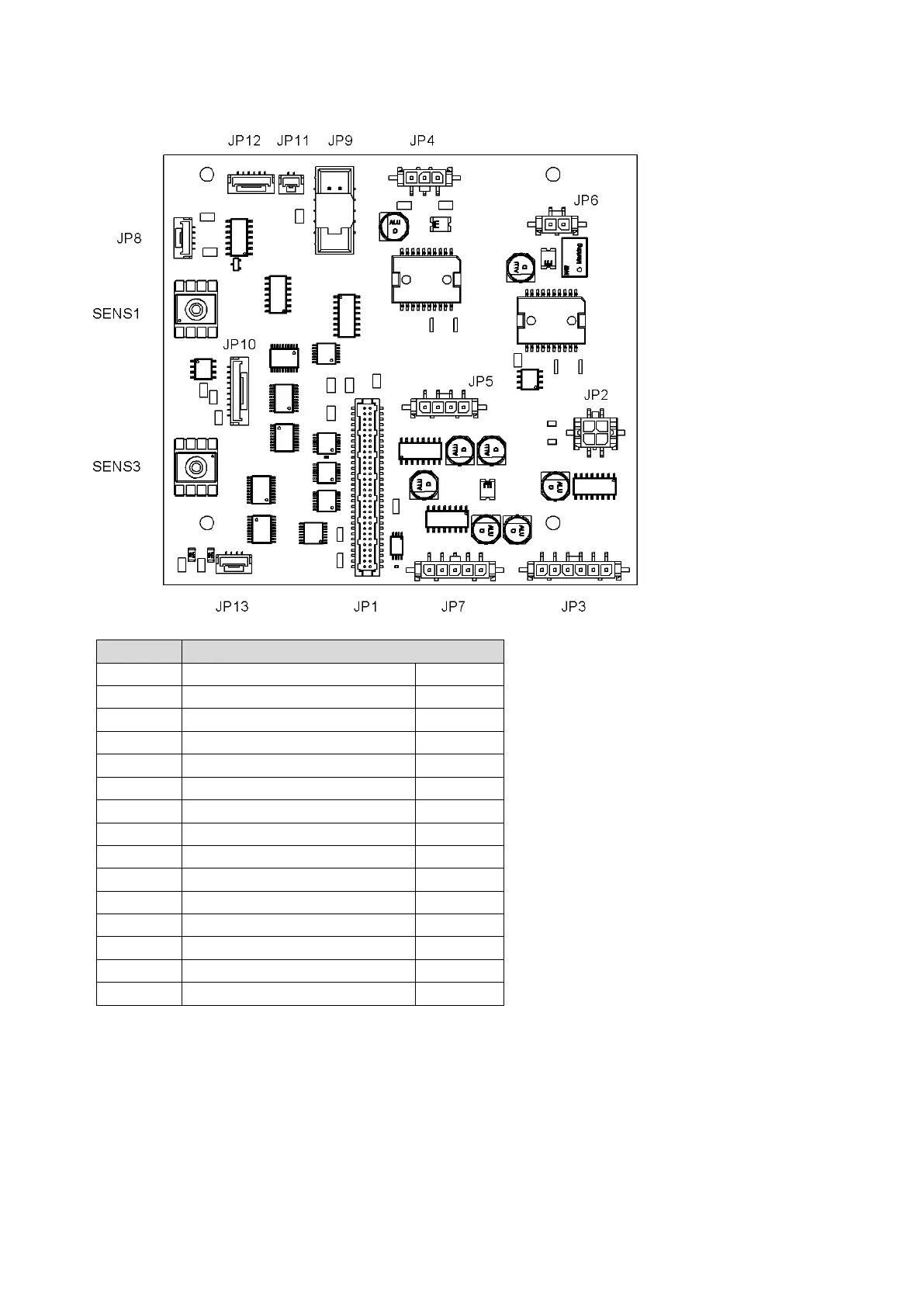

10.6 Fluidic PCB
From
To
JP001
Core PCB
JP011
JP002
Supply PCB
JP205
JP003
Air module
-
JP004
Motor irrigation valve
-
JP005
Valves V7-V8
-
JP006
Pump motor
-
JP007
Venturi
-
JP008
Force sensor
-
JP009
Pump motor encoder
-
JP010
Fluidics level detector
-
JP011
Pump position sensor
-
JP012
Cassette recognition
-
JP013
Cassette release switch
-
SENS1
-
-
SENS2
-
-
