STEP 3:
4.
5.
6.
7.

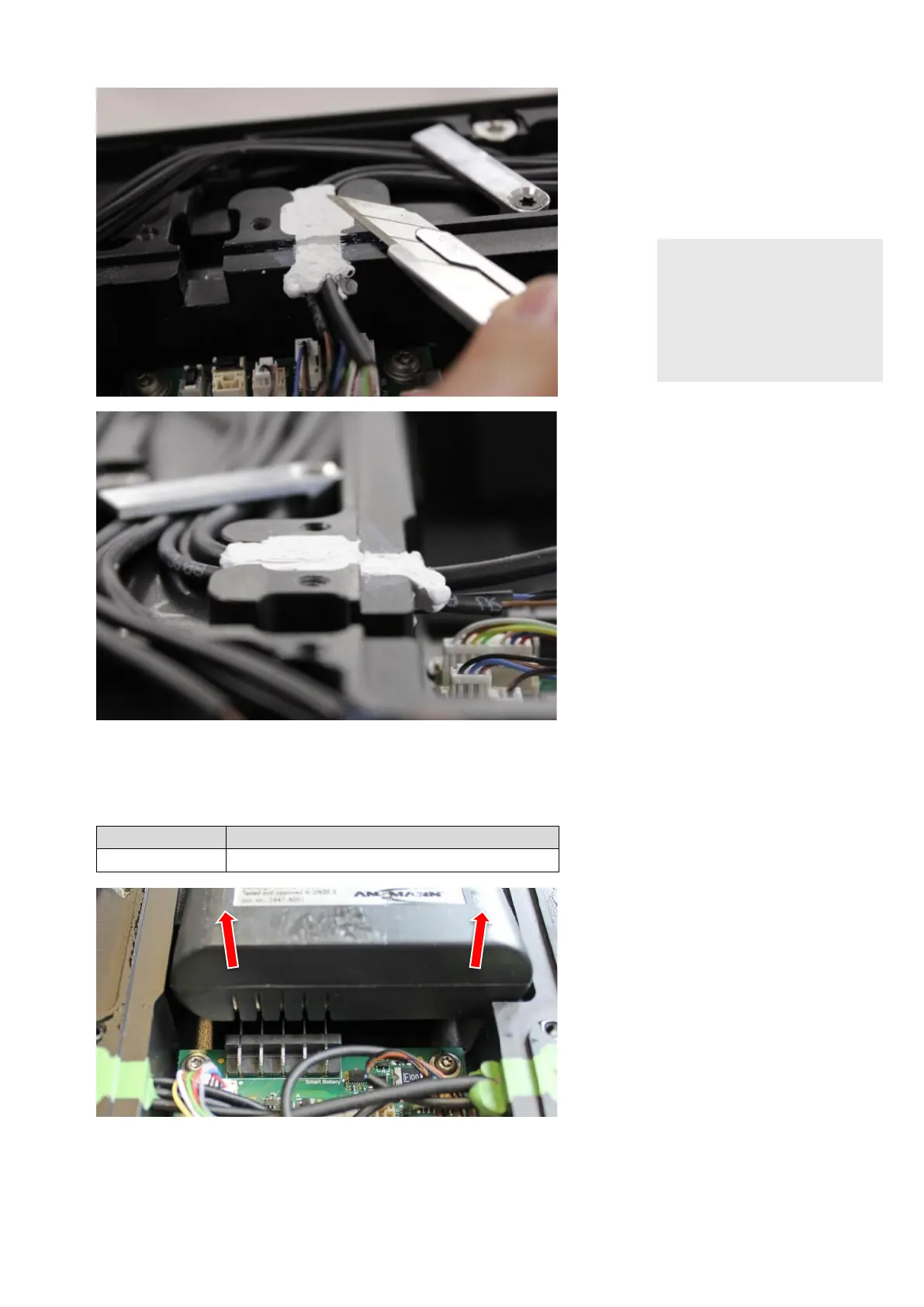

Remove adhesive and use a sharp
razor blade to remove excess.
Plug in all cables to the pedal print.
Place sealing.
Mount base plate according to pro-
cedure described in in 13.1.
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
13.3 Rechargeable battery
VX400015
Quantity
Description
1
Rechargeable battery
STEP 1:
1.
2.
Open pedal housing according to
the procedure described in 13.1.
Lift battery pack out of the contact
terminal.
