9.8 Remote servicing – second level support
For second-level support, the laser module must be connected to the internet. TeamViewer Version 8.0 or higher must be
installed on the servicing laptop.
Procedure:
1. Prepare laser module according to 9.5.
2. Connect service laptop to internet.
3. Call service centre.
4. Start TeamViewer and commit access data to service centre.
10 Device composition

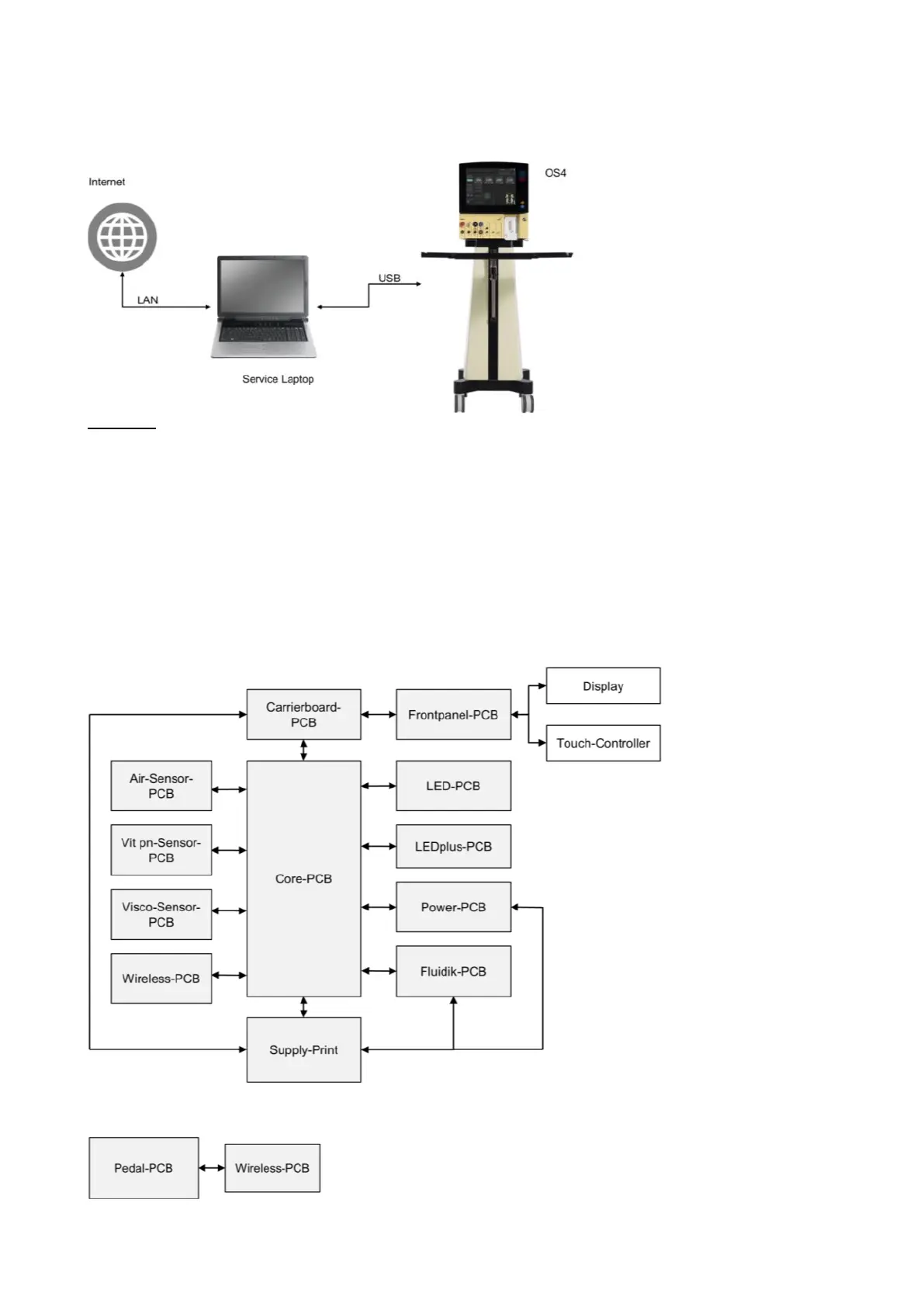

10.1 PCB overview
10.1.1 Unit
10.1.2 Pedal
