OERTLI OS 4 - Block diagram OS4

2021-03-23 / Rev. 10 VV016042 8
4.2 Anterior posterior segment version VC86020X
1
N. a.
7
Connector for AIR
2
Connector for Visco (EXTRACTION/IN-
JECTION)
8
Connector for pneumatic cutter (green)
3
N. a.
9
Connector for high frequency applications (DIA,
CAPS, HFDS GLAU)
4
Connector for PHACO handpiece
10
Connector for light LUM 2
5
Connector for pneumatic cutter (black)
11
Connector for light LUM 1
6
Connector for gas forced infusion (GFI)
12
N. a.
4.3 Anterior posterior segment version with endo laser function VC86030X
1
Button LASER STOP
7
Connector for AIR
2
Connector for Visco (EXTRACTION/IN-
JECTION)
8
Connector for pneumatic cutter (green)
3
Connector for laser probe
9
Connector for high frequency applications (DIA,
CAPS, HFDS GLAU)
4
Connector for PHACO handpiece
10
Connector for light LUM 2
5
Connector for pneumatic cutter (black)
11
Connector for light LUM 1
6
Connector for gas forced infusion (GFI)
12
Key switch for LASER

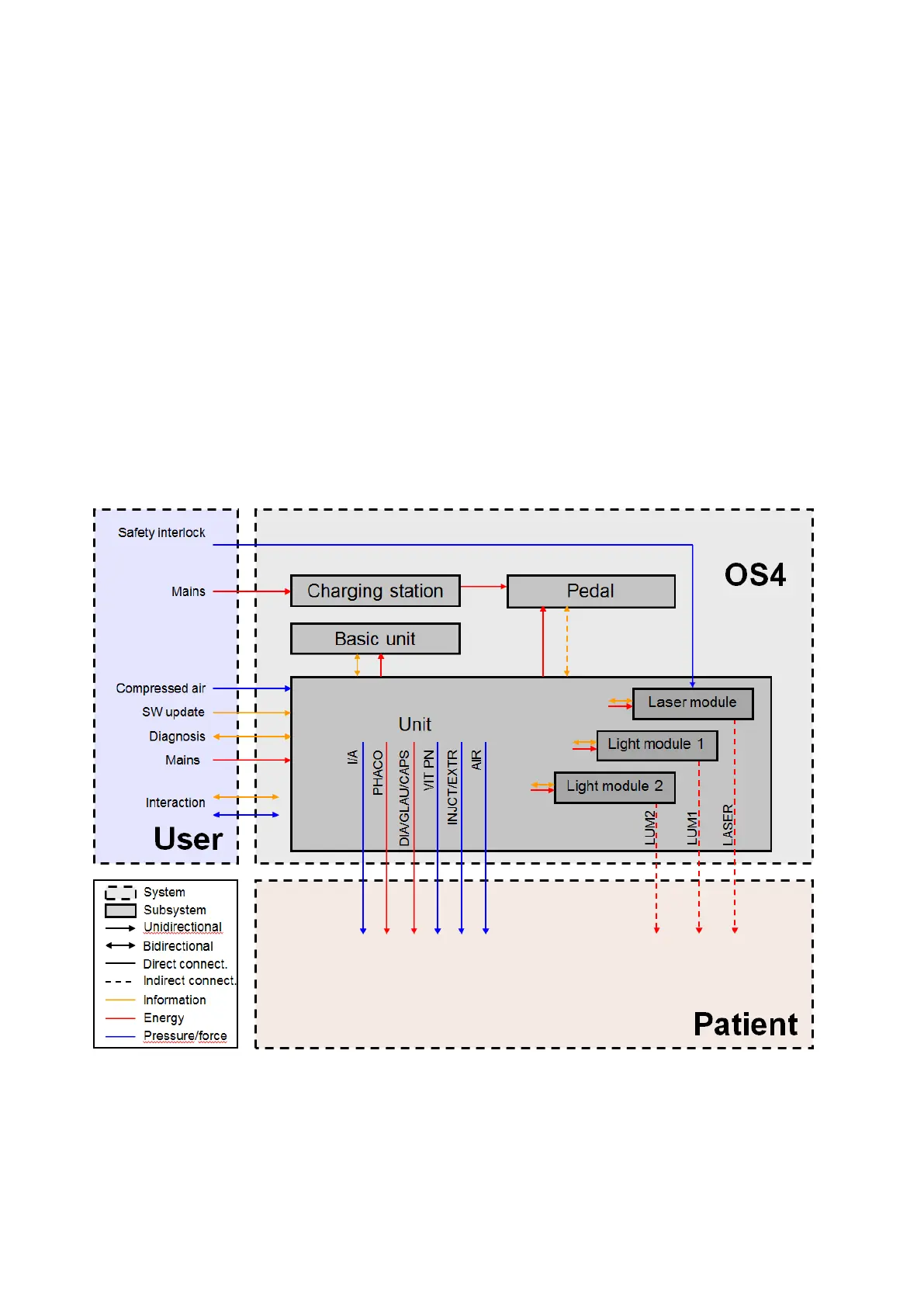

5 Block diagram OS4
