11.1.14 Carrier print
VX541128
Quantity
Description
1
Carrier print

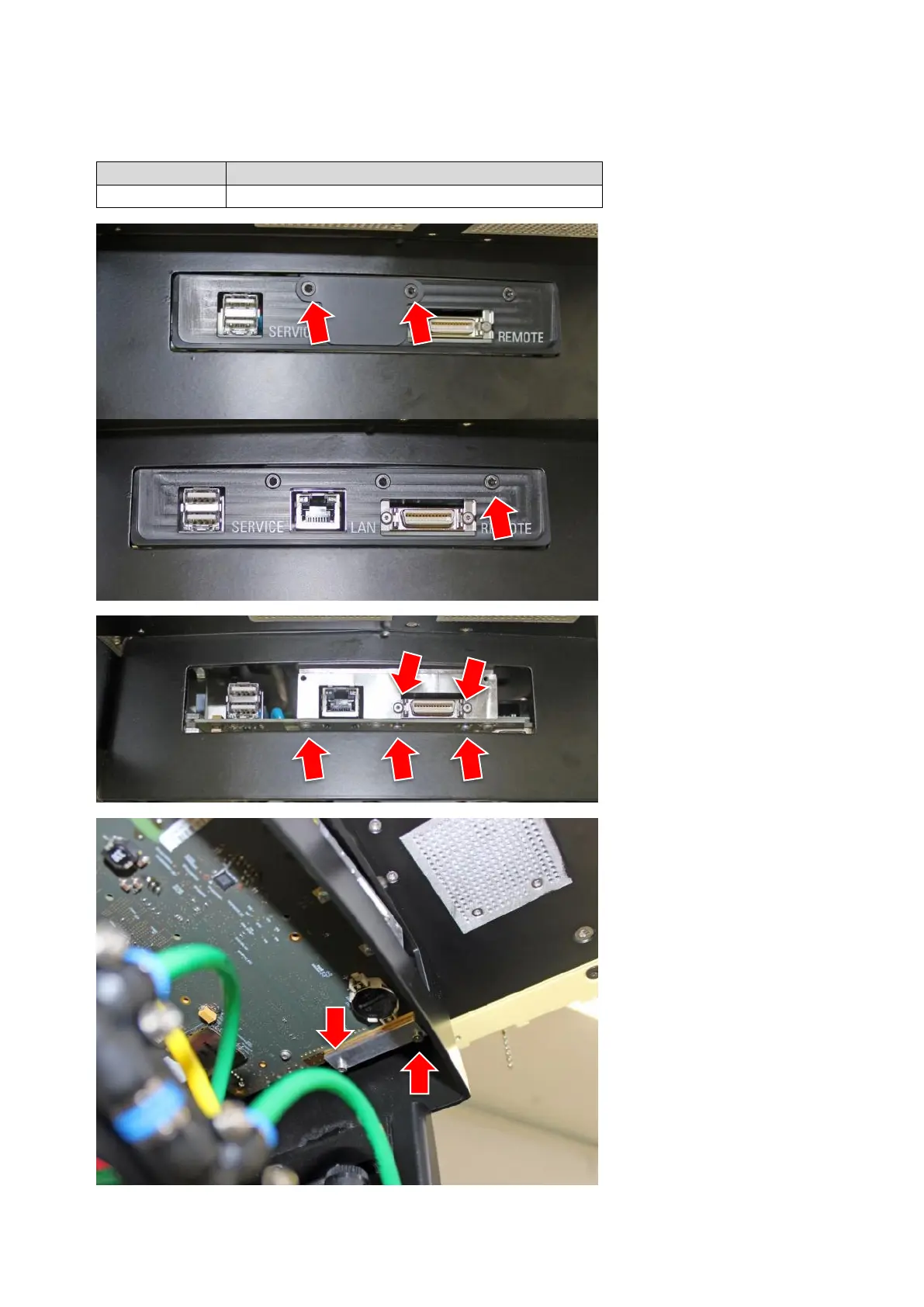

STEP 1:
1.
Loosen 2 screws from the Ethernet
interface and remove cover.
STEP 2:
2.
Loosen 1 screw from the plastic
cover.
Remove the plastic cover.
STEP 3:
3.
Loosen 2 screws in front and 3
screws below from the metal cover
and remove the plastic cover.
STEP 4:
4.
Remove 2 screws on each side of
the PCB fastening – 4 screws in to-
tal.
