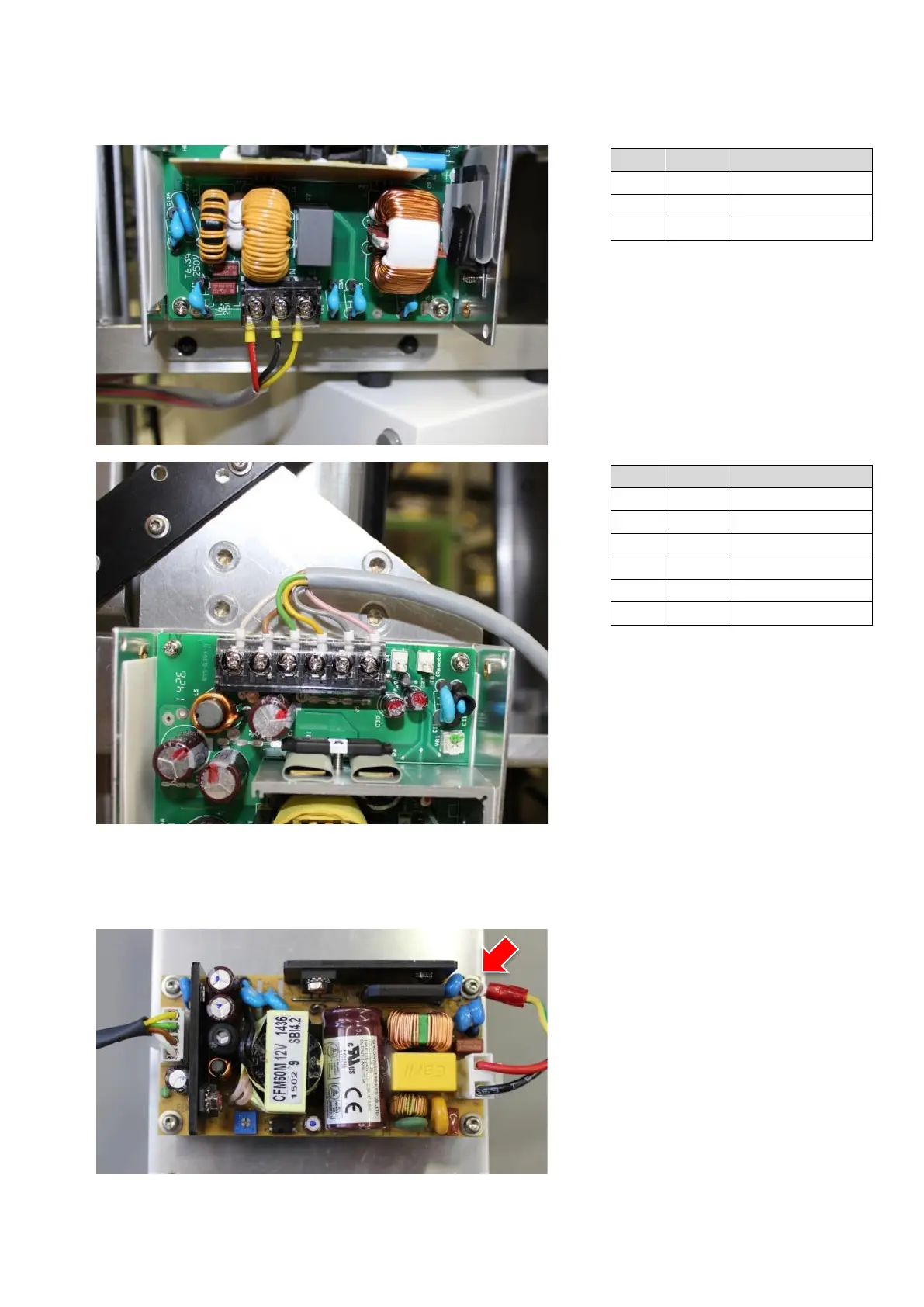

10.16.2 Power supply 24 VDC
(VX320019)
Colour abbreviations according to
IEC 60757.
Pos.
Abbr.
Colour
L
RT
Red
N
BK
Black
E
GN/YE
Green/Yellow
Pos.
Abbr.
Colour
1
WH
White
2
BN
Brown
3
GN
Green
4
YE
Yellow
5
GY
Grey
6
PK
Pink
10.16.3 Power supply 12 VDC
(VX320024)
Do not fix any single wires to the power
supply.
Attach the grounding wire with additional
spring washer.
